FONESTAR FO-392 Quick Start Manual

FO-392
N
VGA TO HDMI CONVERTER

DESCRIPTION

- VGA to HDMI converter.

CONTROLS AND FUNCTIONS

CONNECTION AND OPERATING

- Connect the PC video output to the converter VGA input.
- Connect the audio output from the source to the converter's 2 x
RCA input.
- Connect the converter's HDMI output to the TV monitor.
- Power the converter FO-392 with the mains adpter provided.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS
INPUTS
OUTPUTS
INDICATORS
ACCEPTED FORMATS
POWER SUPPLY
DIMENSIONS
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods
as expressed in the Spanish law 'La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than showing the proof of purchase. After six months
FONESTAR reserves the right to demand proof of the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use, breakages, burns, spilt liquids or other substances,
excessive humidity, battery deterioration and internal manipulation of the device, the software or its components by unauthorized persons, and in general any use that is unrelated
to the nature and purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor where the product was purchased in no more than
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
This document adds information, and never decreases the consumers' rights, which in all cases are protected by the Spanish law 'La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
FONESTAR está adherida a Ecoembalajes España, S. A. "ECOEMBES", con el número 03497 y todos nuestros artículos llevan el Punto Verde respaldado por nuestra adhesión y cotización
al mencionado organismo para el reciclado y gestión posterior de todos nuestros embalajes.
FONESTAR está inscrito en el Registro de Aparatos Eléctricos y Electrónicos (RAEE) como sección especial del Registro de Establecimientos Industriales (REI) con el número de inscripción
001851.
FONESTAR S.A. - NIF A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (España)
www.fonestar.com

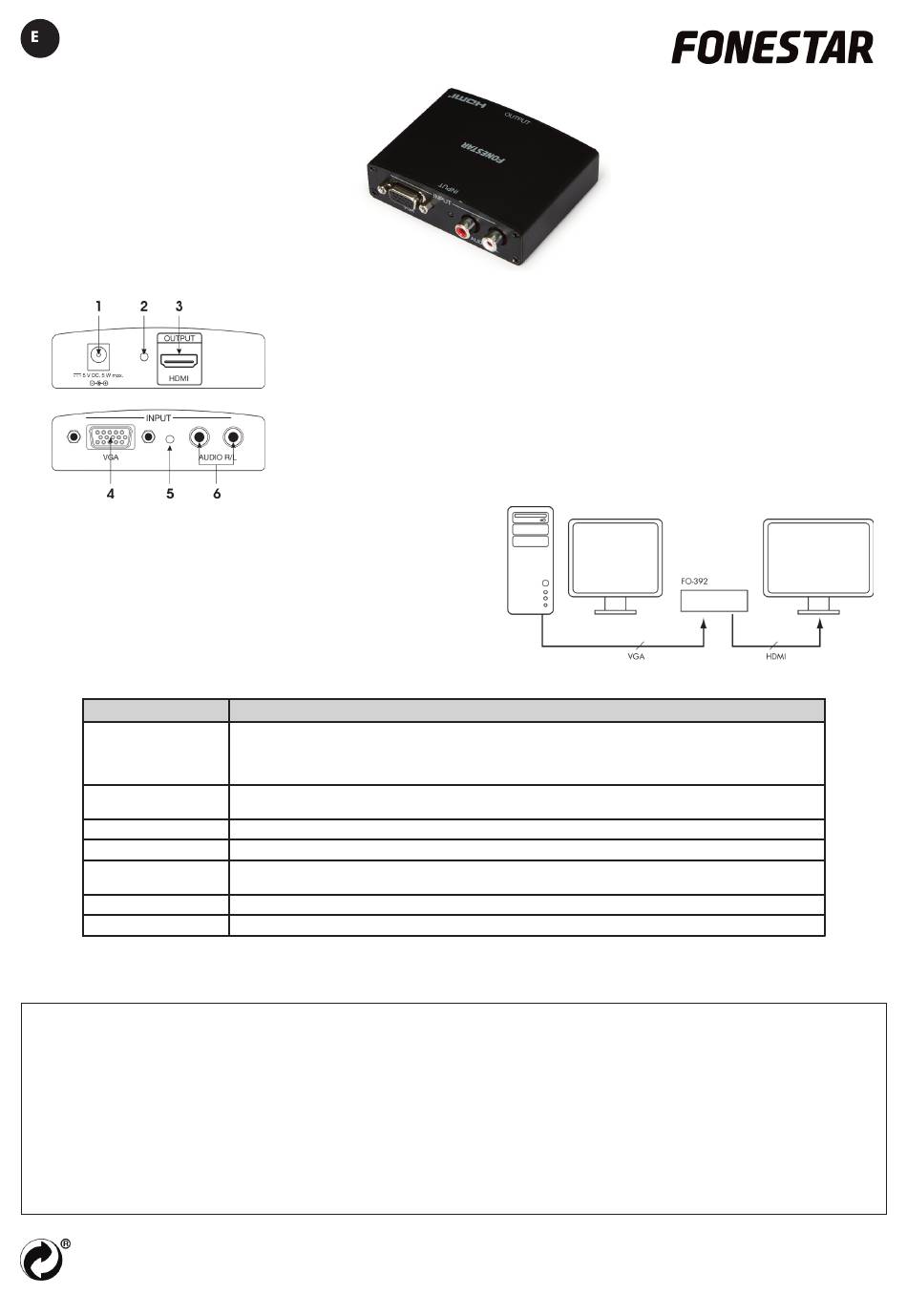

1.- Power supply input for mains adapter provided.
2.- LED signal indicator. It lights up when both signals (VGA and HDMI) are connected and
a signal passing through is detected.
3.- HDMI OUTPUT: digital A/V signal output, HDMI connector.
4.- VGA: Input for the VGA signal received from a computer, female D15 connector.
5.- Converter LED power indicator.
6.- AUDIO R/L: stereo audio input, 2 x RCA connectors.
FO-392
VGA to HDMI converter.
Allows a PC to be connected to a screen with HDMI input.
Converts a VGA signal and a stereo audio input into a HDMI signal.
Maximum resolution: 1280 x 1024 (SXGA).
1 VGA 0.5-1 Vpp (DDC 5 Vpp TTL)
1 aux, 2 x RCA
1 gold-plated female HDMI connector
LED power and compatible mode indicator
800 x 600 60/75 Hz, 1024 x 768 60/75 Hz, 1280 x 720 60/75 Hz, 1280 x 768 60/75 Hz, 1280 x 960 60 Hz, 1280 x
1024 60/75 Hz
5 V DC, 5 W maximum, adapter included
88 x 25.5 x 68 mm depth

WARRANTY
