Cornelius Remcor 2849949020 Installation Instructions Manual

IMI CORNELIUS INC g One Cornelius Place g Anoka, MN 55303-6234
Telephone (800) 238-3600

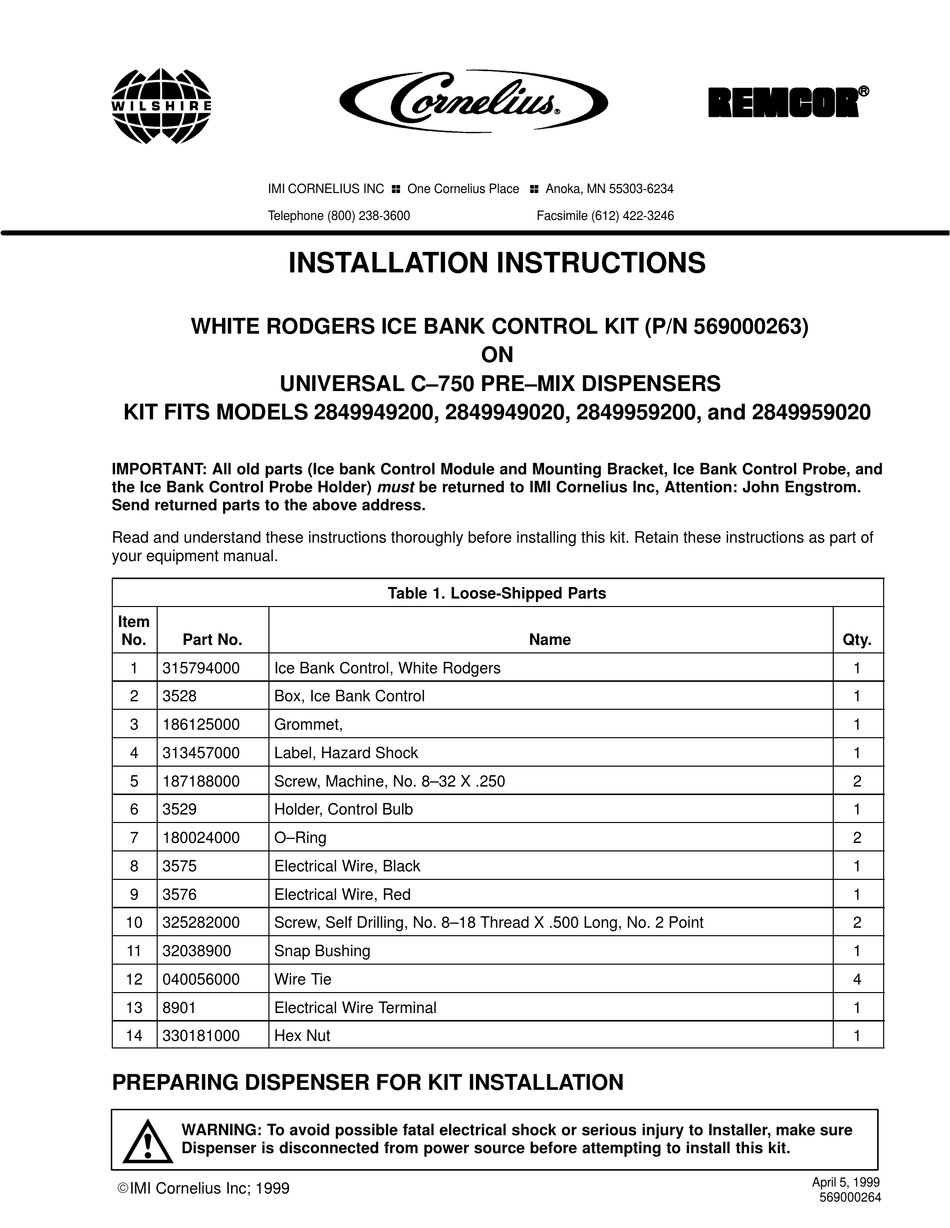

INSTALLATION INSTRUCTIONS

WHITE RODGERS ICE BANK CONTROL KIT (P/N 569000263)
UNIVERSAL C–750 PRE–MIX DISPENSERS
KIT FITS MODELS 2849949200, 2849949020, 2849959200, and 2849959020
IMPORTANT: All old parts (Ice bank Control Module and Mounting Bracket, Ice Bank Control Probe, and
the Ice Bank Control Probe Holder) must be returned to IMI Cornelius Inc, Attention: John Engstrom.
Send returned parts to the above address.
Read and understand these instructions thoroughly before installing this kit. Retain these instructions as part of
your equipment manual.
Item
No. Part No.
1 315794000 Ice Bank Control, White Rodgers
2 3528 Box, Ice Bank Control
3 186125000 Grommet,
4 313457000 Label, Hazard Shock
5 187188000 Screw, Machine, No. 8–32 X .250
6 3529 Holder, Control Bulb
7 180024000 O–Ring
8 3575 Electrical Wire, Black
9 3576 Electrical Wire, Red
10 325282000 Screw, Self Drilling, No. 8–18 Thread X .500 Long, No. 2 Point
11 32038900 Snap Bushing
12 040056000 Wire Tie
13 8901 Electrical Wire Terminal
14 330181000 Hex Nut

PREPARING DISPENSER FOR KIT INSTALLATION

WARNING: To avoid possible fatal electrical shock or serious injury to Installer, make sure
Dispenser is disconnected from power source before attempting to install this kit.
EIMI Cornelius Inc; 1999
Facsimile (612) 422-3246
ON
Table 1. Loose-Shipped Parts
Name Qty.
1
1
1
1
2
1
2
1
1
2
1
4
1
1
April 5, 1999
569000264
