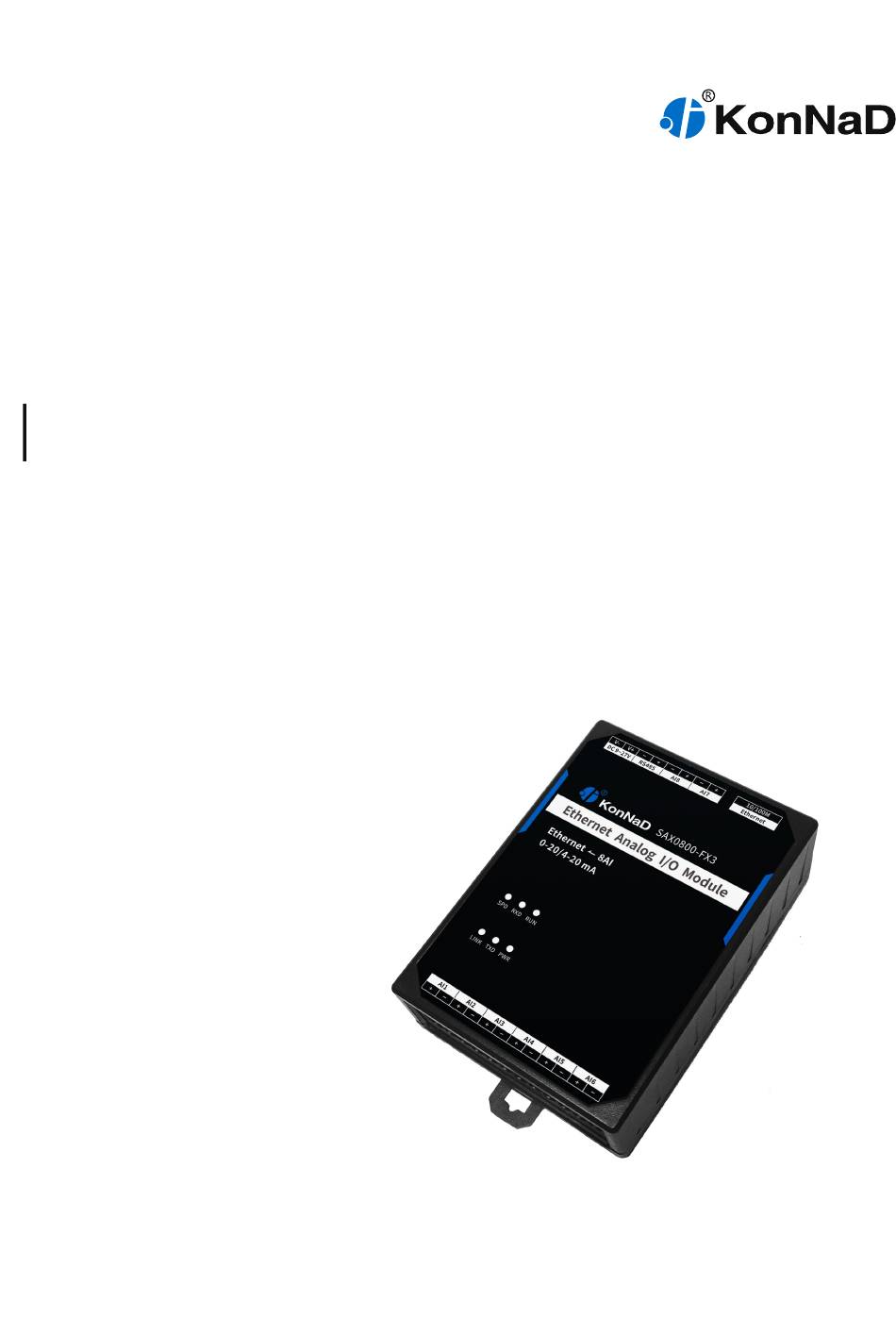

- Page 1 Last updated: 2019-12-13 C2000-A2-SAX0800-FX3 User Manual Ethernet ← 8AI 0-20/4-20 mA Remote I/O Module — Ethernet Analog I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A2-SAX0800-FX3 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A2-SAX0800-FX3 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
C2000-A2-SAX0800-FX3 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Analog Input AI Channels Connector Terminal block Acquisition Range 0-20/4-20mA Acquisition Accuracy 1‰ Resolution 16 bit Acquisition Characteristics Differential input Acquisition Frequency 10/30Hz (configurable) Channel-to-Channel Isolation 350VDC Input Impedance 240Ω... - Page 6 C2000-A2-SAX0800-FX3 User Manual Classification Parameter Specification Current 80mA @ 12VDC Physical Characteristics Dimensions 75*105*30mm Installation Din-rail or wall Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd.
-
Page 7: Apprearance
C2000-A2-SAX0800-FX3 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
C2000-A2-SAX0800-FX3 User Manual 1.3. Indicators Classification Indicator Description Meaning Ethernet LINK Network status Steady on：Network connection enabled indicator Flashing：Transmit or receive data Off：The network port is not plugged into the network cable 10/100Mbps Steady on：100M network connected indicator Off：Not connected to the 100M network... -
Page 9: Port Description
C2000-A2-SAX0800-FX3 User Manual 1.4. Port Description Recommended Classification Port Description wiring Analog Input +、- Positive analog input, Negative analog input RVV 2*0.5 Ethernet Ethernet RJ45 Ethernet port CAT-5e Downstream Serial 485+ 、 RS485+, RS485- (downward) RVSP 2*1.0 Port 485- Power Input V+、V-... -
Page 10: Product Dimensions
C2000-A2-SAX0800-FX3 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 C2000-A2-SAX0800-FX3 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
C2000-A2-SAX0800-FX3 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
