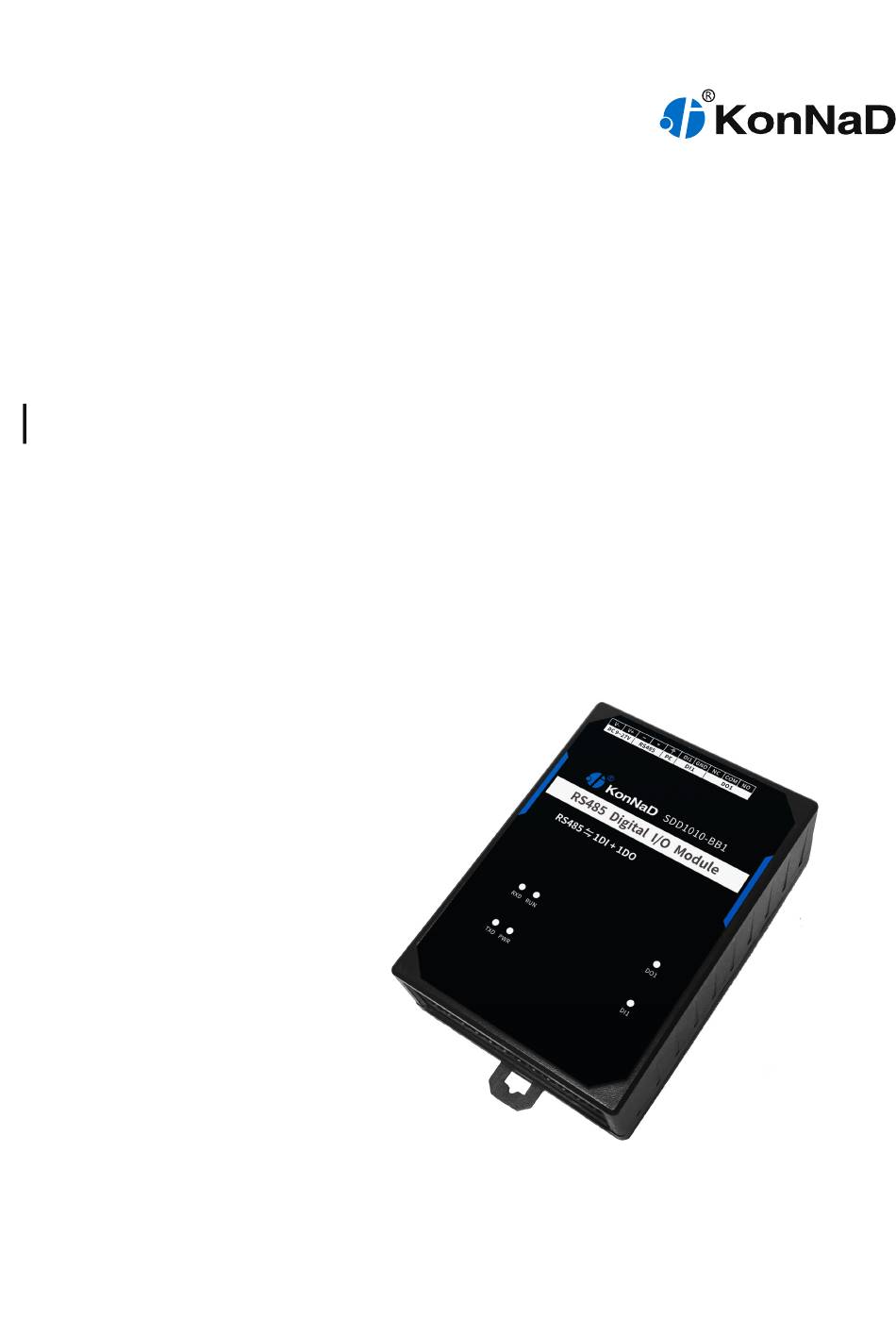

- Page 1 Last updated: 2019-12-13 C2000-A1-SDD1010-BB1 User Manual RS485 ⇋ 1DI + 1DO Remote I/O Module — RS485 Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A1-SDD1010-BB1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A1-SDD1010-BB1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
C2000-A1-SDD1010-BB1 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Digital Input DI Channels DI Connector Terminal block Input Type Dry contact DI Mode Logic level Digital Filtering Time Interval 6 sample periods Counter Frequency 1kHz Digital Output DO Channels... - Page 6 C2000-A1-SDD1010-BB1 User Manual Classification Parameter Specification Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...
-
Page 7: Apprearance
C2000-A1-SDD1010-BB1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
C2000-A1-SDD1010-BB1 User Manual 1.3. Indicators Classification Indicator Description Meaning Digital Input Digital input Steady on：Short to GND indicators (dry Off：Open contact) Digital Digital input Steady on：On Output indicators Off：Off Downstream RS485 data receive Steady on：RS485 line fault, please check if the positive... -
Page 9: Port Description
C2000-A1-SDD1010-BB1 User Manual 1.4. Port Description Recommended Classification Port Description wiring Digital Input Digital input RVV 2*0.5 Dry contact input common RVV 2*0.5 Digital Output Digital output normally open RVV 2*1.0 Digital output common RVV 2*1.0 Digital output normally close RVV 2*1.0... -
Page 10: Product Dimensions
C2000-A1-SDD1010-BB1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 C2000-A1-SDD1010-BB1 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
C2000-A1-SDD1010-BB1 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
