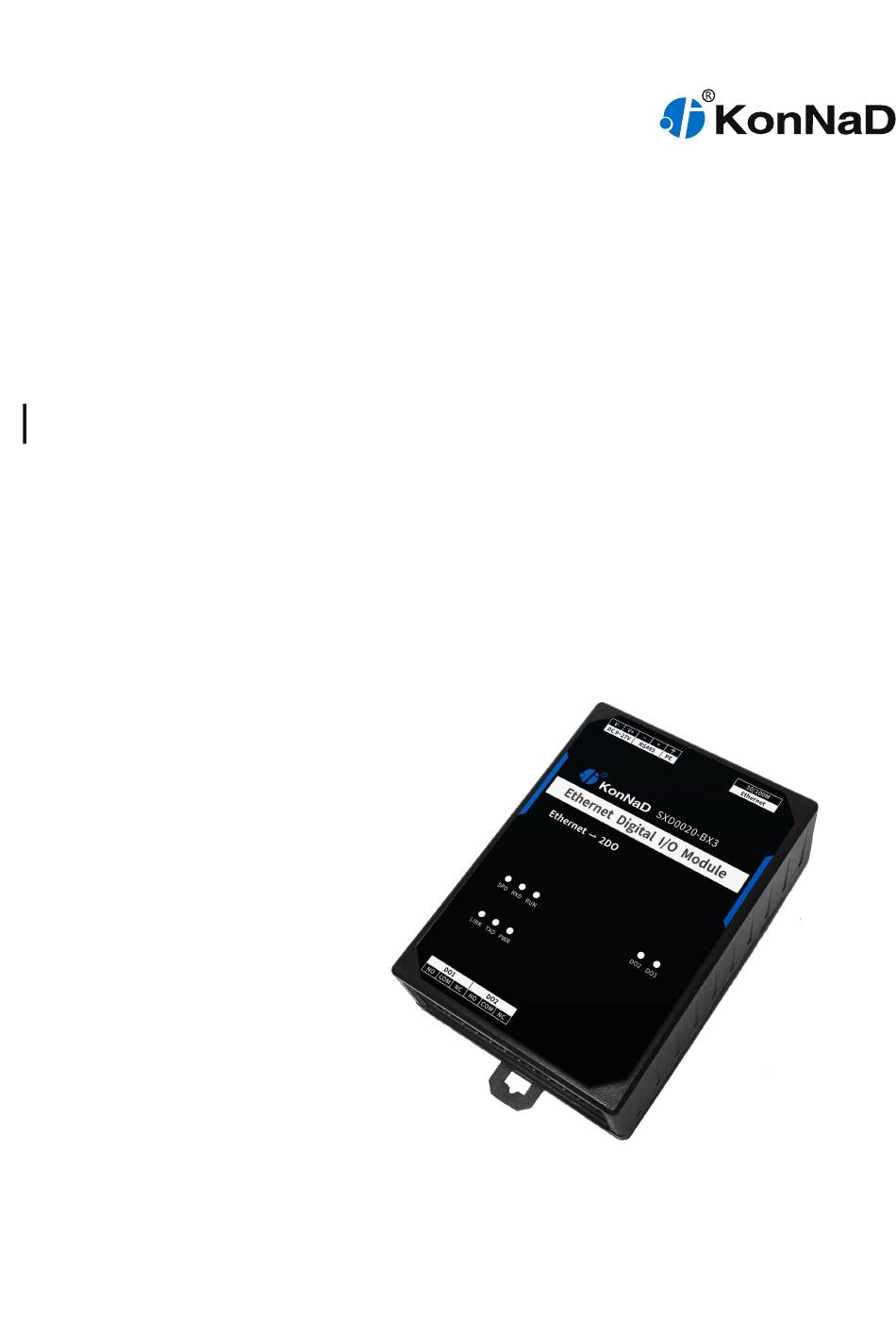

- Page 1 Last updated: 2019-12-13 C2000-A1-SXD0020-BX3 User Manual Ethernet → 2DO Remote I/O Module — Ethernet Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A1-SXD0020-BX3 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A1-SXD0020-BX3 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
C2000-A1-SXD0020-BX3 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Digital Output DO Channels DO Connector Terminal block DO Type Form C DO Mode Logic Level Contact Capacity 30V/3A Ethernet No. of Ports Bandwidth 10/100M Communication Distance 100m Industrial Protocols... - Page 6 C2000-A1-SXD0020-BX3 User Manual Classification Parameter Specification Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...
-
Page 7: Apprearance
C2000-A1-SXD0020-BX3 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
C2000-A1-SXD0020-BX3 User Manual 1.3. Indicators Classification Indicator Description Meaning Digital Digital input Steady on：On Output indicators Off：Off Ethernet LINK Network status Steady on：Network connection enabled indicator Flashing：Transmit or receive data Off：The network port is not plugged into the network cable 10/100Mbps Steady on：100M network connected... -
Page 9: Port Description
C2000-A1-SXD0020-BX3 User Manual 1.4. Port Description Recommended Classification Port Description wiring Digital Output Digital output normally open RVV 2*1.0 Digital output common RVV 2*1.0 Digital output normally close RVV 2*1.0 Ethernet Ethernet RJ45 Ethernet port CAT-5e Downstream Serial 485+ 、... -
Page 10: Product Dimensions
C2000-A1-SXD0020-BX3 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 C2000-A1-SXD0020-BX3 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
C2000-A1-SXD0020-BX3 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
