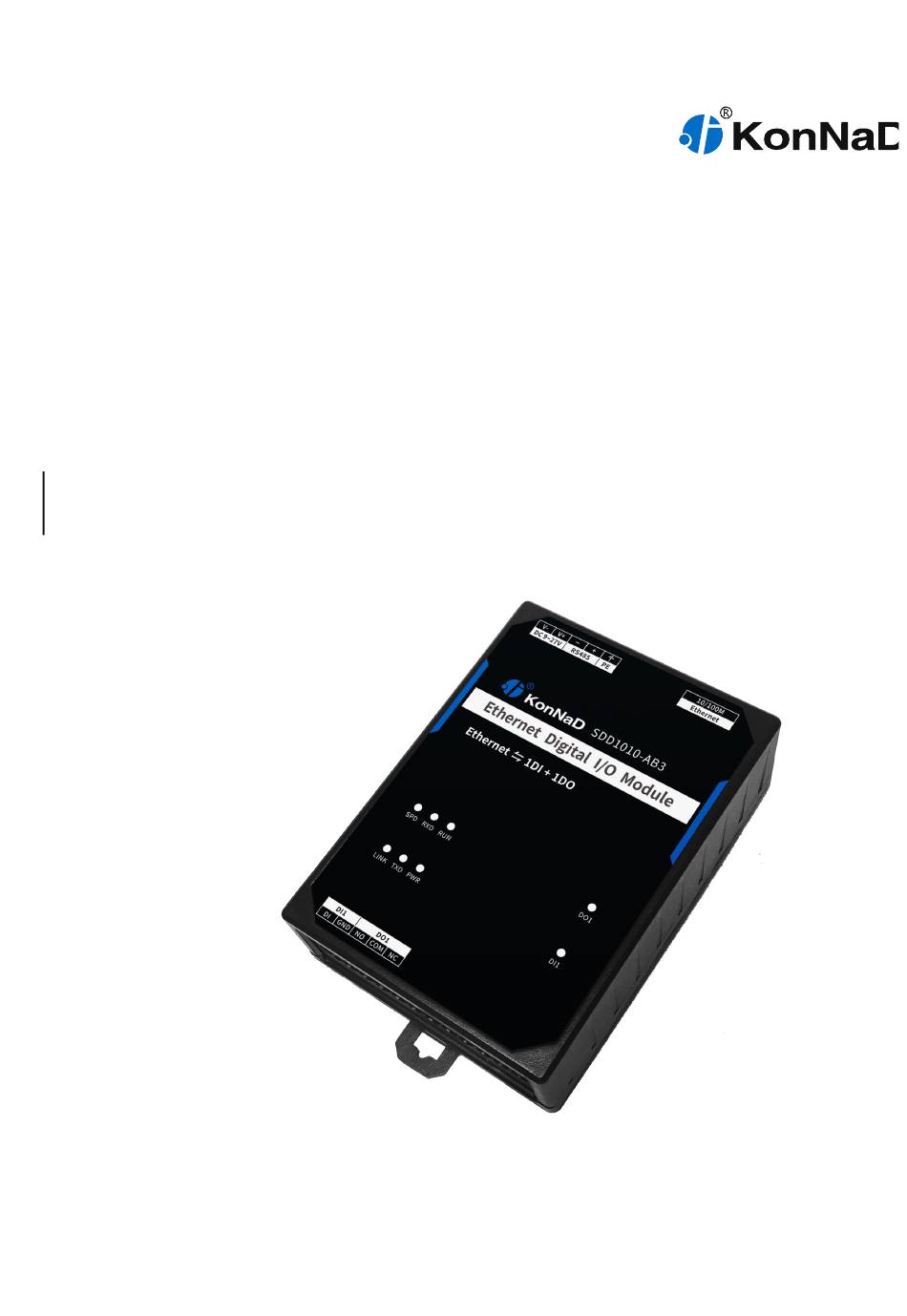

- Page 1 2019年10月12日 Updated C2000-A1-SDD1010-AB3 User Manual ⇋ Ethernet 1DI + 1DO Remote I/O Module — Ethernet Digital I/O Module Shenzhen United Innovation Automatic Control System Co., Ltd.
-
Page 2: Table Of Contents
C2000-A1-SDD1010-AB3 User Manual Table of Contents Table of Contents 1. Hardware Description 1.1. Apprearance 1.2. Indicator 1.3. Port Description 1.4. Product Dimensions and Appearance 1.5. Installation Method 1.6. Specifications 2. Package Contents 3. WARRANTY POLICY SinoCon Co., Ltd. konnad.com 2 / 21... - Page 3 C2000-A1-SDD1010-AB3 User Manual Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products.
- Page 4 C2000-A1-SDD1010-AB3 User Manual and does not represent a commitment on the part of SinoCon. Contact US SinoCon Co., Ltd. Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China Web: konnad.com Tel: 0755-88865168 SinoCon Co., Ltd. konnad.com...
- Page 5 C2000-A1-SDD1010-AB3 User Manual SinoCon Co., Ltd. konnad.com 5 / 21...
-
Page 6: Hardware Description
C2000-A1-SDD1010-AB3 User Manual 1. Hardware Description 1.1. Apprearance SinoCon Co., Ltd. konnad.com 6 / 21... -
Page 7: Indicator
C2000-A1-SDD1010-AB3 User Manual 1.2. Indicator Classification Indicator Description Meaning Steady on： Short to GND or input voltage > threshold Digital input Digital Input voltage indicators Off：Open or input voltage < threshold voltage Steady on： Digital Digital input Output indicators Off：Off Steady on：... - Page 8 C2000-A1-SDD1010-AB3 User Manual Flashing： transmit or Network receive data LINK status Off：The indicator network port is not plugged into the network cable or is not properly connected to the router Ethernet Steady on： 100M network connected 10/100Mbps indicator SinoCon Co., Ltd. konnad.com...
- Page 9 C2000-A1-SDD1010-AB3 User Manual Off：Not connected to the 100M network, check whether the router supports 100M network Steady on： RS485 line fault, please check if the positive and negative poles of 485 line are RS485 data reversed receive indicator Flashing： RS485...
- Page 10 C2000-A1-SDD1010-AB3 User Manual Flashing： RS485 transmitting RS485 data data transmit indicator Off：RS485 no transmitting data Steady on： Normal power supply Off：No power or Power Power abnormal indicator power supply, please check if the voltage range is 9 27VDC Steady on：...
- Page 11 C2000-A1-SDD1010-AB3 User Manual Flashing： Running Flashes every indicator 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. konnad.com 11 / 21...
-
Page 12: Port Description
C2000-A1-SDD1010-AB3 User Manual 1.3. Port Description Recommended Classification Port Description wiring Digital input RVV 2*0.5 Dry contact Digital Input input RVV 2*0.5 common Digital output RVV 2*1.0 normally open Digital output RVV 2*1.0 Digital common Output Digital output RVV 2*1.0... - Page 13 C2000-A1-SDD1010-AB3 User Manual RJ45 Ethernet Ethernet Ethernet CAT-5e port RS485+, Downstream 485+ 、 RS485- RVSP 2*1.0 Serial Port 485- (downward) Power supply input positive, V+、V- RVV 2*1.0 power supply input negative Power Input Used for reliable grounding of the RVV 2*0.5...
-
Page 14: Product Dimensions And Appearance
C2000-A1-SDD1010-AB3 User Manual 1.4. Product Dimensions and Appearance unit: mm（inch） 1.5. Installation Method SinoCon Co., Ltd. konnad.com 14 / 21... - Page 15 C2000-A1-SDD1010-AB3 User Manual SinoCon Co., Ltd. konnad.com 15 / 21...
-
Page 16: Specifications
C2000-A1-SDD1010-AB3 User Manual 1.6. Specifications Classification Parameter Specification DI Channels Terminal DI Connector block Input Type Dry contact Digital Input Logic level & DI Mode pulse count Digital Filtering Time 6 sample Interval periods Counter Frequency 1kHz DO Channels Terminal... - Page 17 C2000-A1-SDD1010-AB3 User Manual No. of Ports Bandwidth 10/100M Communication 100m Distance Standard Ethernet Industrial Protocols Modbus TCP Protocol Support TCP Protocol Mode Server/Client Mode Serial Standard RS485 No. of Ports Terminal Downstream Connector block Serial Port Cascade RS485 Connection/Transparent cascade...
- Page 18 C2000-A1-SDD1010-AB3 User Manual Power Input Voltage 9~27VDC 160mA @ Current 12VDC Dimensions 76*106*31mm Physical Characteristics Installation din-rail or wall Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Environmental 5% ~ 95% RH, Limits Ambient Relative non- Humidity condensing SinoCon Co., Ltd.
-
Page 19: Package Contents
C2000-A1-SDD1010-AB3 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. konnad.com 19 / 21... -
Page 20: Warranty Policy
C2000-A1-SDD1010-AB3 User Manual 3. WARRANTY POLICY In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's... - Page 21 C2000-A1-SDD1010-AB3 User Manual the warranty period, or that have been improperly installed, incorrectly input voltage, improperly used, accidental events or natural disasters, etc., are not covered by the warranty. 3. Before accepting the warranty service, the customer is required to prove the date of purchase of the product by presenting the warranty card or purchasing the invoice.
