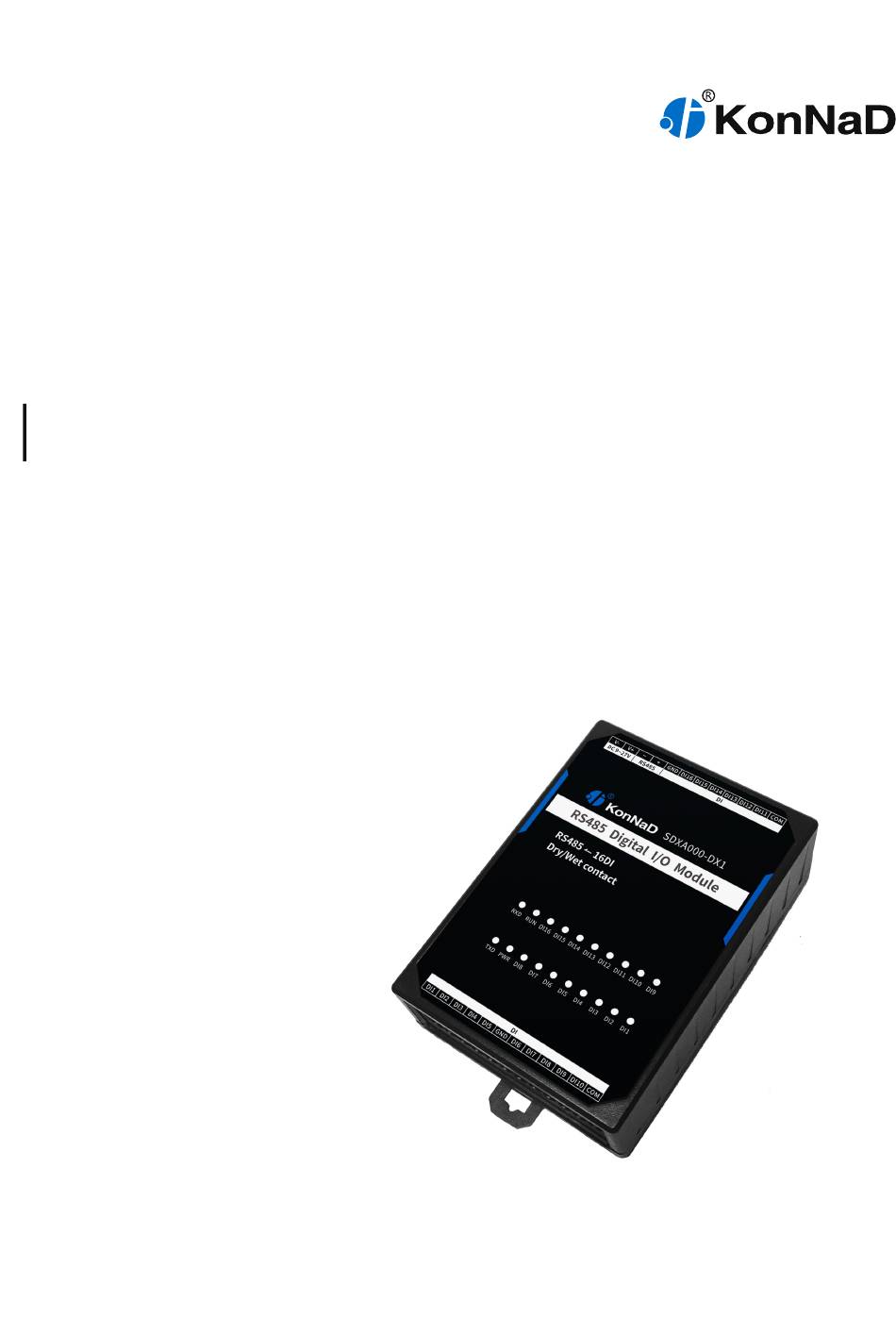

- Page 1 Last updated: 2019-12-13 C2000-A2-SDXA000-DX1 User Manual RS485 ← 16DI Dry/Wet contact Remote I/O Module — RS485 Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A2-SDXA000-DX1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A2-SDXA000-DX1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
C2000-A2-SDXA000-DX1 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Digital Input DI Channels DI Connector Terminal block Input Type Dry contact: Logic 0, short to GND; Logic 1, open; Wet contact: Logic 0, 0~1VDC; Logic 1, 3~30VDC DI Mode Logic level &... -
Page 6: Apprearance
C2000-A2-SDXA000-DX1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators
C2000-A2-SDXA000-DX1 User Manual 1.3. Indicators Classification Indicator Description Meaning Digital Input Digital input Steady on：Short to GND or input voltage more than indicators (dry/wet the threshold voltage contact) Off：Open or input voltage less than the threshold voltage Downstream RS485 data receive Steady on：RS485 line fault, please check if the... -
Page 8: Port Description
C2000-A2-SDXA000-DX1 User Manual 1.4. Port Description Recommended Classification Port Description wiring Digital Input Digital input RVV 2*0.5 Dry contact input common RVV 2*0.5 Wet contact input common RVV 2*0.5 Upstream Serial 485+、 RS485+, RS485- (upstream) RVSP 2*0.5 Port 485- Power Input V+、V-... -
Page 9: Product Dimensions
C2000-A2-SDXA000-DX1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-A2-SDXA000-DX1 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
C2000-A2-SDXA000-DX1 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
