User Modes - Dimplex DF2608-INT Manual

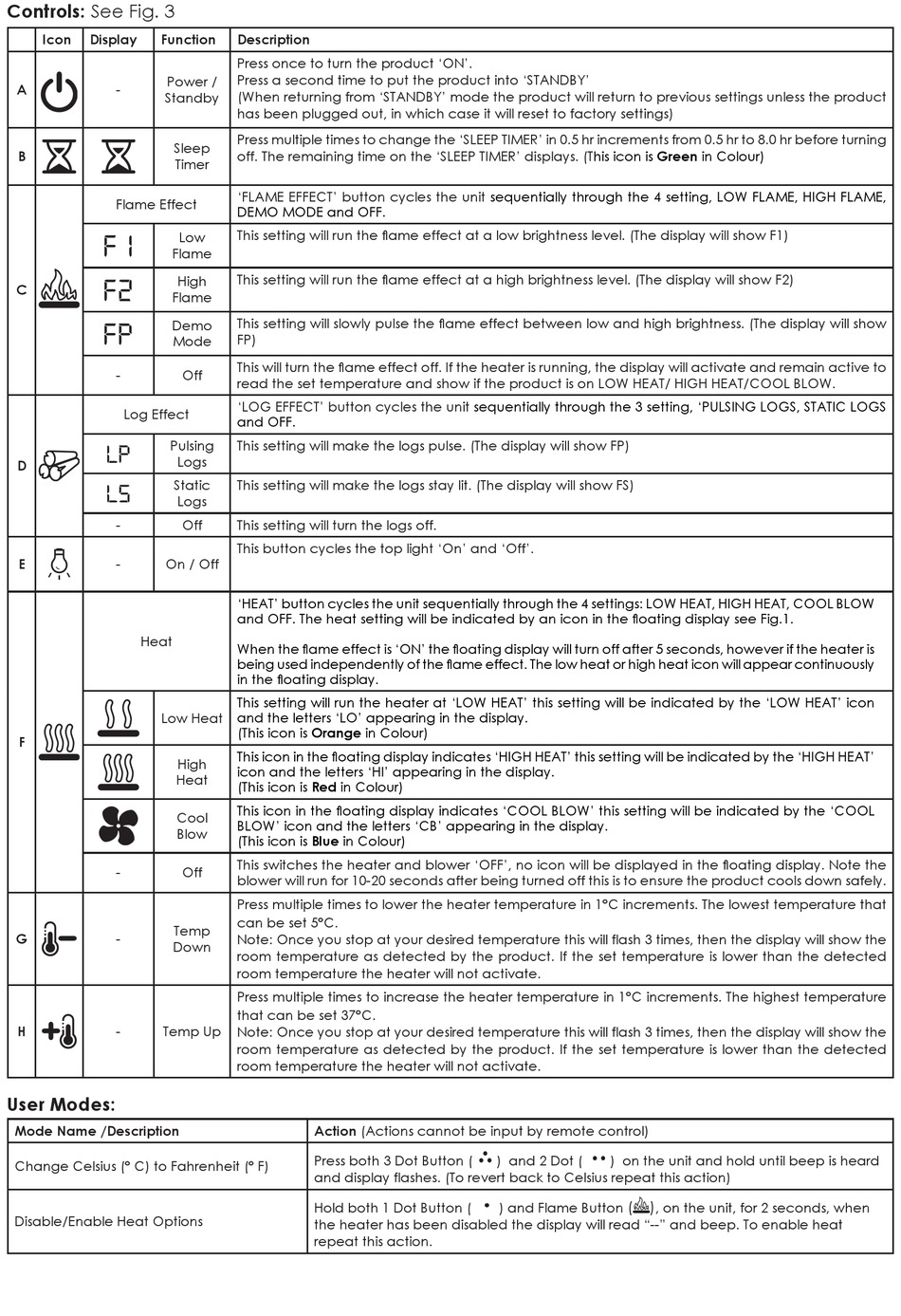

Controls: See Fig. 3
Icon Display Function
Power /
A
-
Standby
Sleep
B
Timer
Flame Effect
f1
Flame
f2
C
Flame
Demo
fp
Mode
-
Log Effect
Pulsing
Lp
D
Static
LS
-
E
- On / Off
Heat
Low Heat
F
Heat
Cool
Blow
-
Temp
G
-
Down
H
- Temp Up

User Modes:

Mode Name /Description
Change Celsius (° C) to Fahrenheit (° F)
Disable/Enable Heat Options
Description
Press once to turn the product 'ON'.
Press a second time to put the product into 'STANDBY'
(When returning from 'STANDBY' mode the product will return to previous settings unless the product
has been plugged out, in which case it will reset to factory settings)
Press multiple times to change the 'SLEEP TIMER' in 0.5 hr increments from 0.5 hr to 8.0 hr before turning
off. The remaining time on the 'SLEEP TIMER' displays.
'FLAME EFFECT' button cycles the unit
DEMO MODE and OFF.
This setting will run the flame effect at a low brightness level. (The display will show F1)
Low
This setting will run the flame effect at a high brightness level. (The display will show F2)
High
This setting will slowly pulse the flame effect between low and high brightness. (The display will show
FP)
This will turn the flame effect off. If the heater is running, the display will activate and remain active to
Off
read the set temperature and show if the product is on LOW HEAT/ HIGH HEAT/COOL BLOW.
'LOG EFFECT' button cycles the unit
and OFF.
This setting will make the logs pulse. (The display will show FP)
Logs
This setting will make the logs stay lit. (The display will show FS)
Logs
Off This setting will turn the logs off.
This button cycles the top light 'On' and 'Off'.
'HEAT' button cycles the unit sequentially through the 4 settings: LOW HEAT, HIGH HEAT, COOL BLOW
and OFF. The heat setting will be indicated by an icon in the floating display see Fig.1.
When the flame effect is 'ON' the floating display will turn off after 5 seconds, however if the heater is
being used independently of the flame effect. The low heat or high heat icon will appear continuously
in the floating display.
This setting will run the heater at 'LOW HEAT' this setting will be indicated by the 'LOW HEAT' icon
and the letters 'LO' appearing in the display.
(This icon is Orange in Colour)
This icon in the floating display indicates 'HIGH HEAT' this setting will be indicated by the 'HIGH HEAT'
High
icon and the letters 'HI' appearing in the display.
(This icon is Red in Colour)
This icon in the floating display indicates 'COOL BLOW' this setting will be indicated by the 'COOL
BLOW' icon and the letters 'CB' appearing in the display.
(This icon is Blue in Colour)
This switches the heater and blower 'OFF', no icon will be displayed in the floating display. Note the
Off
blower will run for 10-20 seconds after being turned off this is to ensure the product cools down safely.
Press multiple times to lower the heater temperature in 1°C increments. The lowest temperature that
can be set 5°C.
Note: Once you stop at your desired temperature this will flash 3 times, then the display will show the
room temperature as detected by the product. If the set temperature is lower than the detected
room temperature the heater will not activate.
Press multiple times to increase the heater temperature in 1°C increments. The highest temperature
that can be set 37°C.
Note: Once you stop at your desired temperature this will flash 3 times, then the display will show the
room temperature as detected by the product. If the set temperature is lower than the detected
room temperature the heater will not activate.
Action (Actions cannot be input by remote control)
Press both 3 Dot Button (
and display flashes. (To revert back to Celsius repeat this action)
Hold both 1 Dot Button (
the heater has been disabled the display will read "--" and beep. To enable heat
repeat this action.
(This icon is Green in Colour)
sequentially through the 4 setting, LOW FLAME, HIGH FLAME,
sequentially through the 3 setting, 'PULSING LOGS, STATIC LOGS
) and 2 Dot ( ) on the unit and hold until beep is heard
(
) and Flame Button
)
, on the unit, for 2 seconds, when
