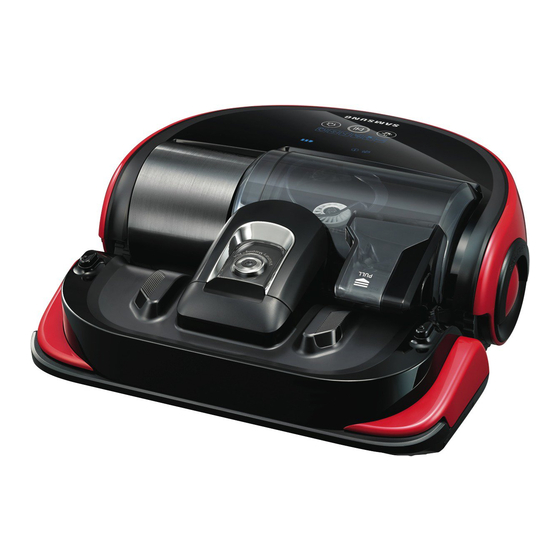

- Page 1 SR20J90✴✴U Series SR20K9000U✴ Series POWERbot user manual ✻ Before operating this unit, please read the instructions carefully. English ✻ For indoor use only. imagine the possibilities Thank you for purchasing a Samsung product.
-
Page 2: Table Of Contents
Contents Safety information Installation Accessories Charging Automatic charging / Recharging / Low battery Using POWERbot Turning the power on/off / Starting Auto clean mode / Starting Spot clean mode / Recharging / Selecting cleaning modes Using the remote control Power/Recharging / Cleaning modes / Suction modes / Additional functions / Direction control Name of each part... -
Page 3: Safety Information
Safety information Safety information Before operating the appliance, please read this manual thoroughly and retain it • for your reference. WARNING Because these following operating instructions cover various models, the • characteristics of your vacuum cleaner may differ slightly from those described in WARNING this manual. - Page 4 Safety information important Safety inStrUCtionS When using an electrical appliance, basic precautions should be observed, including the following: reaD aLL inStrUCtionS Before USinG yoUr poWerbot. Unplug from outlet when not in use and before conducting maintenance. WarninG: to reduce the risk of fire, electric shock, or injury: GeneraL • Use only as described in this manual.
- Page 5 • Do not attempt to open the Charger / docking station. Repairs should only be carried out by a qualified customer care center. • Do not expose the Charger / docking station to high temperatures or allow moisture or humidity of any kind to come into contact with the charger / docking station. poWerbot • Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.
- Page 6 – There is a risk of fire or electric shock. – Place near candle, desktop lamps, fireplace or f Please check with a Samsung Electronics near combustible materials such as gasoline, service center when exchanging batteries. alcohol, thinners etc.
- Page 7 Before use in use CaUtion CaUtion f Insert the dustbin before using POWERbot. f Using POWERbot on thick carpet may damage both POWERbot and the carpet. f Be careful with the followings for proper automatic recharging. – The POWERbot cannot pass over carpet that is thicker than 1 cm.
-
Page 8: Installation
installation the docking station must be plugged in and turned on at all times. Install the docking station in a place without obstacles and danger of falling. Power lamp (Red) (ONLY SR20J90✴✴U Series) D C - IN D C - I N Connect the Connect the Connect the... -
Page 9: Accessories
accessories remote control Batteries (aaa type) User manual Spare filter (option) Cleaning brush (option) power cord adapter Note f Install the docking station in a place where the floor and wall are level. f It is best to install the docking station along the grain of wooden floors. f If the emergency switch is off, the POWERbot will not charge even if it is docked on the docking station. -
Page 10: Charging
Charging It takes approximately 160 minutes (SR20J90✴✴U Series) or 240 minutes (SR20K9000U✴ Series) to completely charge the POWERbot when charging it for the first time after purchase. Once charged, the POWERbot can be used for approximately 30 minutes. Charging light turns green during charging. - Page 11 automatic charging When the battery indicator blinks during cleaning, the poWerbot will return to the docking station to charge itself automatically. recharging you can command the poWerbot to recharge at the docking station while it is in cleaning. Low battery manually charge the poWerbot by placing it on the docking station.
-
Page 12: Using Powerbot
Using poWerbot you must turn on the emergency switch on the bottom of the unit before using poWerbot. turning the power on/off • When POWERbot is not used for 30 minutes, power will turn off press the button for more than WARNING automatically. - Page 13 Selecting cleaning modes cleaning mode How to select Displayed icon Auto clean Spot clean ✻ ✻ The movement and direction of the Manual clean POWERbot is controlled by the remote control. ✻ ✻ When the POWERbot is being charged, you can select the Auto clean mode only.
-
Page 14: Using The Remote Control
Using the remote control 1 power/recharging Power Turn POWERbot's power on/off Select to recharge POWERbot at the Recharging docking station while it is cleaning. Start/Stop Select to start or stop cleaning 2 Cleaning modes fSR20J90✴✴U Series - Select to clean automatically until it cleans an entire space once. -
Page 15: Name Of Each Part
name of each part 1. Display panel 2. Dustbin holder 3. Remote control signal receiver 4. Obstacle sensor 5. Dustbin 6. Camera 7. Dustbin handle 8. Bumper sensor Bottom 1. Charge pins 2. Power brush 3. Power brush cover 4. Cliff sensor 5. -
Page 16: Cleaning And Maintaining
Cleaning and maintaining you must turn off the emergency switch before cleaning poWerbot. Cleaning the dustbin Remove the dustbin Remove the dustbin Remove dust in the cover dustbin and cyclone unit "click" Detach the cyclone unit Reassemble the Reinsert the dustbin from the dustbin cover, dustbin into the main body until... -
Page 17: Cleaning The Driving Wheel
Cleaning the power brush Remove the Power Remove the Power Clean the Power brush brush cover brush Reassemble the Power Reassemble the Power brush brush cover Cleaning the Driving wheel Put a soft cloth on the floor and place Use a blunt rod or tweezers to remove foreign POWERbot upside-down on the cloth. -
Page 18: Notes And Cautions
notes and cautions Charging in use Note Note f If the battery overheats during charging, it f The POWERbot may get caught on may take longer to charge. thresholds, etc. during cleaning. – To restart operation, shut off the emergency f When automatic charging is not working, do switch, move the POWERbot to an area where the following:... -
Page 19: About The Battery
– Filter: Completely dry it in the shade before before purchasing. using. f Purchase a filter at authorized Samsung f This battery is exclusively for the Samsung service centers if you need more filters. Electronics POWERbot. Do not use it for any other product. -
Page 20: Information Codes
information codes The information If a code appears, The information codes below turn off the code will disappear appear on the emergency when you turn on display panel switch and check the emergency the instructions switch below and take appropriate action Information codes checklist the poWerbot is caught, stuck, trapped or lifted while... -
Page 21: Troubleshooting
troubleshooting Symptom checklist fCheck if the emergency switch is on. fCheck if all the icons are displayed on the display panel. the PoWERbot is not working at all. fCheck if the POWERbot's battery is depleted. fReplace the batteries (AAA type) if the remote controller is not working. fWhen POWERbot is immobilized by an obstacle such as a cord, threshold etc, the PoWERbot pick it up and move it away from the obstacle. -
Page 22: Open Source Announcement
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required. The following URL http://opensource.samsung.com/opensource/VR9000H/seq/0 leads to the download page of the source code and open source license information as related to this product. This offer is valid to anyone in receipt of this information. -
Page 23: Specifications
Specifications classification Item Detail information Size 378 mm x 135 mm x 362 mm (Depth x Height x Length) Mechanical Weight 4.3 kg specifications (PoWERbot) Sensor Ceiling shape recognition (Visionary mapping plus TM) Button type of POWERbot Touch type Power voltage 100-240 V~, 50 Hz/60 Hz Power Power consumption... - Page 24 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center Web Site AUSTRALIA 1300 362 603 www.samsung.com/au/support SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg/support www.samsung.com/hk/support (Chinese) HONK KONG (852) 3698 4698 www.samsung.com/hk_en/support (English)
