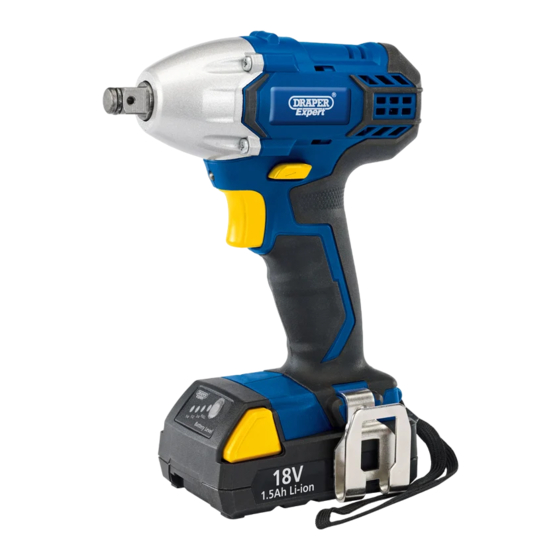

18v cordless impact wrench
Hide thumbs Also See for CIW18LI:

Advertisement

Quick Links

INSTRUCTIONS FOR
18V Cordless
Impact Wrench
Stock No.83689
Part No.CIW18LI
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIW18LI and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper CIW18LI

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...
  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
  • Page 5: Introduction

    INTRODUCTION 4.1 SCOPE This hand held cordless impact wrench is intended to tighten and loosen mechanical fixings (nuts, bolts, etc). There is no mechanism for adjusting or regulating the output torque. All fixings should be finished using a torque wrench. 4.2 SPECIFICATION Stock no.
  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.
  • Page 7: Specific Safety Instructions For Impact Wrench Use

    HEALTH & SAFETY INFORMATION Wait for the machine to stop. Unless the machine is fitted with a safety brake; some parts may continue to move due to momentum. Wait for all parts to stop; then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool.
  • Page 8: Safety Instructions For Mains Powered Battery Pack Chargers

    HEALTH & SAFETY INFORMATION If the work you are carrying out is liable to generate flying grit, dust, swarf or chips, wear the appropriate safety clothing, goggles, gloves, masks etc - if the work operation appears to be excessively noisy, wear ear-defenders. If you wear your hair in a long style, wearing a cap, safety helmet, hairnet, even a sweatband, will minimise the possibility of your hair being caught up in the rotating parts of the tool, likewise, consideration should be given to the removal of rings and wristwatches, if these are liable to be a hazard.
  • Page 9: Instructions For Drills, Chargers And Batteries

    Before charging, read the instructions. b) For indoor use. Do not expose to rain. c) Only charge Draper batteries 83686 and 83687 in the charger. d) Do not charge any other batteries in the charger. Any other application is considered misuse.
  • Page 10: Connection To The Power Supply (Charger)

    HEALTH & SAFETY INFORMATION 5.5 CONNECTION TO THE POWER SUPPLY (CHARGER) Make sure the power supply information on the machine’s rating plate are compatible with the power supply you intend to connect it to. This charger comes supplied with a UK standard 3 pin plug. It is designed for connection to a domestic power supply rated at 230V AC.
  • Page 11: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Battery pack Hand grip ½" drive (male) anvil Wrist strap Variable speed trigger switch 1Hr battery charger LED worklight Belt clip Forward/reverse selector...
  • Page 12: Unpacking & Checking 7.1 Packaging

    Lay the contents out and check them against the parts shown. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the back page) and do not attempt to use the impact wrench.
  • Page 13: Preparing The Impact Wrench

    If there is any sign of FIG.2 damage then do not commence charging, seek advice from Draper Tools. To charge the battery pack, it must first be removed from the tool. To release the battery pack, press the...
  • Page 14 If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Allow battery/charger to normalise and try again. If a fault remains after trying this then contact Draper Tools. How to make the batteries perform longer.
  • Page 15: Basic Operation

    BASIC OPERATION INSTALLING AND REMOVING SOCKETS - FIG. 4 This wrench is supplied with a ½" Square Drive NOTE: This product is equipped with an electric brake. Never use any sockets or accessories that are not hardened for impact use. Never use chrome vanadium steel sockets which can shatter and can cause personal injury.
  • Page 16: Belt Clip

    BASIC OPERATION BELT CLIP - FIG. 8 The spring steel belt clip is convenient for hanging the drill temporarily. The clip can be installed on either side of the tool. To install the clip , locate the clip in position and fasten with screw supplied, take care to not overtighten and strip the thread.
  • Page 17: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly. 10.2 BATTERY USAGE NOTICE In order to increase charging capacity and the useful life of battery pack, please discharge the remaining power first and re-charge the battery pack for 24-hour whenever the user...
  • Page 18: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 BATTERIES Stock No. Part No. Voltage 83686 CB18LI15 18V (1.5Ah) 83687 CB18LI30 18V (3.0Ah) 11.2 CHARGER Stock No. Part No. Voltage 83688 C18UBA 18V 1hr charger 12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Warning! Wear suitable respiratory protection. Warning! Wear suitable eye/face protection.
  • Page 19: Disposal

    13. DISPOSAL 13.1 DISPOSAL At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDMC0316...

This manual is also suitable for:

83689
