NUCLEAR-SERIES
AMPLIFIER
OWNER'S MANUAL

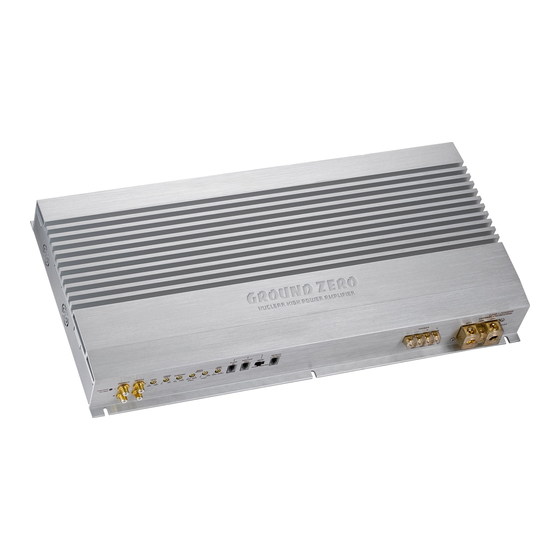

GZNA 2850XII
•
1 Ohm stable stereo
•
2 Ohm stable bridged
•
Dual Mosfet power supply
•
SMD Technology
•
Power & Protection indicator
•
Variable 12dB Bass Boost
•
High pass filter (Subsonic filter) with 1/10 switch variable to 4000Hz
•
Low pass filter with 1/10 switch variable to 4000Hz
•
Variable phase shift 0-180°
•
Adjustable input sensitivity
•
Soft delayed remote turn- on
•
Remote control
•
Thermal / Short / Overload protection
Features
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero NUCLEAR Series
Summary of Contents for Ground Zero NUCLEAR Series
- Page 1 NUCLEAR-SERIES AMPLIFIER OWNER’S MANUAL GZNA 2850XII Features • 1 Ohm stable stereo • 2 Ohm stable bridged • Dual Mosfet power supply • SMD Technology • Power & Protection indicator • Variable 12dB Bass Boost • High pass filter (Subsonic filter) with 1/10 switch variable to 4000Hz •...
-
Page 2: Planning Your System
Tools and materials you need • Screwdriver • Electric drill, 3 mm / 0.12” carbide drill bit • Mounting screws • Power wire min. 35 mm² / 2 AWG • Ground wire min. 35 mm² / 2 AWG • Speaker wire min. 2 x 4 mm² / 11 AWG Please note! •... -
Page 3: Power Connection
Power connection... -
Page 4: Controls And Functions
Controls and functions... -
Page 5: Turning On The Amplifier
Controls and functions GND -> Ground connection Power terminals REM -> Remote antenna terminal BATT -> +12 Volt Speaker terminals For connection of the speakers BLUE – OK Satus indication RED – Error Terminal for connection of the RCA wires. Cinch ( RCA ) inputs To avoid failure, please use high quality RCA wires. -
Page 6: Connecting The Speaker
Connecting the speaker... -
Page 7: Trimode Operation
Trimode operation Connecting the speaker for trimode operation - notes TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave the crossover switch on “Full” position. Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air- core or Ferrit- ore coils with a minimum diameter of 1 mm / 0.039”... -
Page 8: Specifications
Specifications Model GZNA 2850XII RMS Power @ 4 Ω 2 x 450W (1% THD+N) 2 x 550W (10% THD+N) CEA Standard CEA-2006-A RMS Power @ 2 Ω 2 x 850W (1% THD+N) 2 x 1000W CEA Standard CEA-2006-A (10% THD+N) RMS Power @ 1 Ω... -
Page 9: Troubleshooting Guide
We reserve the right to make needed change or improvement to the product without informing customer about this in advance. De Garantie bepalingen van alle door ground zero geleverde producten is volgens wettelijke bepalingen geregeld, Een retourzending kan alleen na duidelijke afspraak en in de originele verpakking plaatsvinden.SVP een aankoopbon en een duidelijke storingsomschrijving bijvoegen.Van garantie uitgesloten zijn defecten door...
