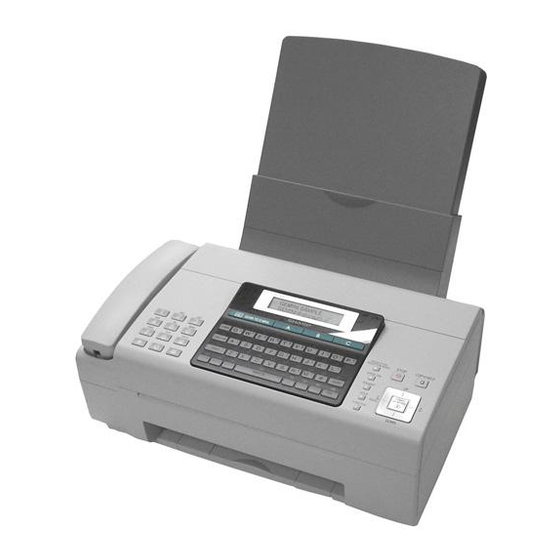

Sharp UX-B800SE Quick Setup Manual

Inkjet Fax

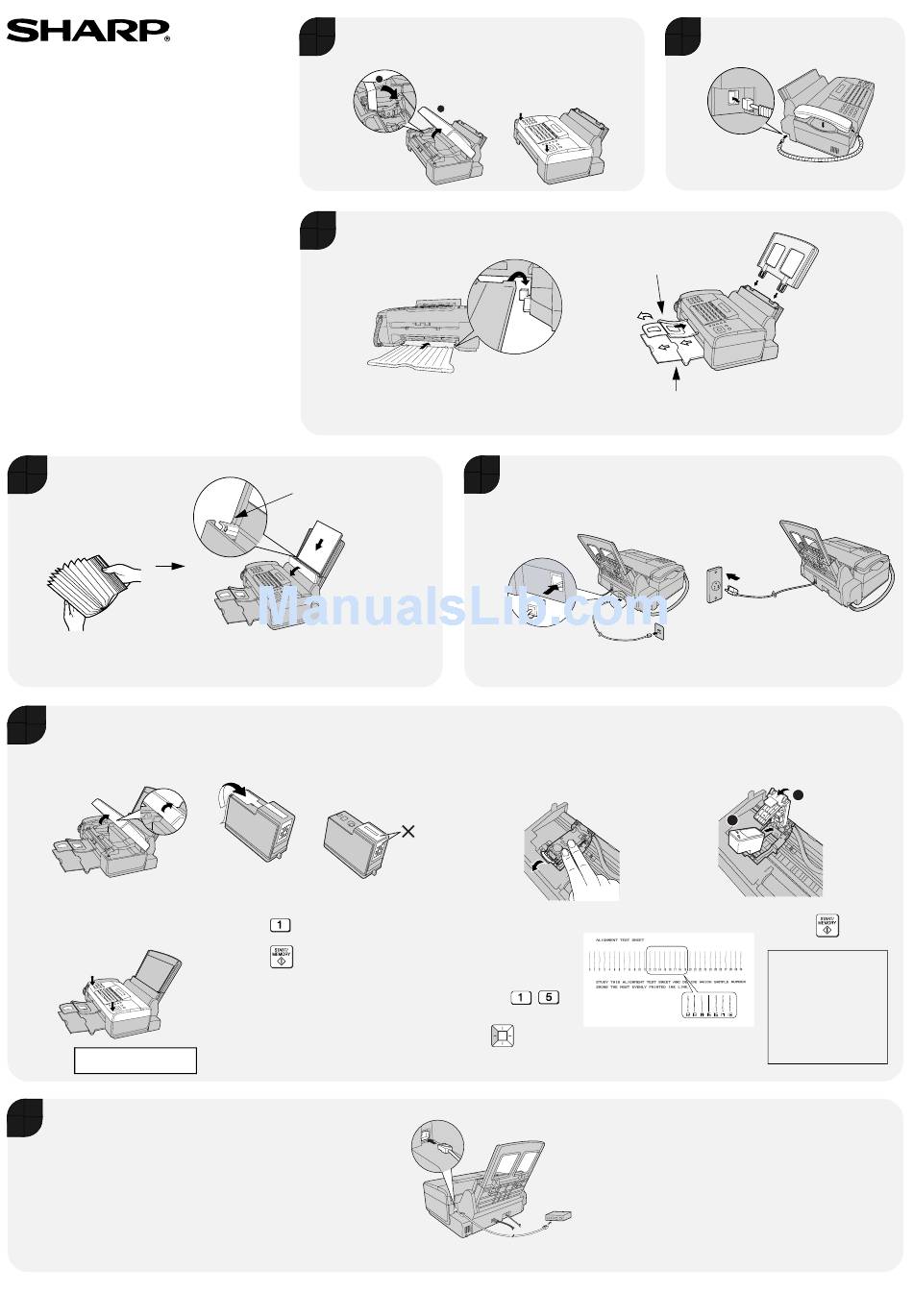

QUICK SETUP GUIDE

IMPORTANT!!
Should you require any assistance
setting up or operating your product,
please
DO NOT RETURN YOUR PRODUCT
TO THE STORE.
After referring to the setup guide and operation
manual, if you still require assistance please
consult our web page at www.sharpusa.com.
From our web page you will be able to directly e-
mail our customer support team.
If you would like personal assistance, please call
our Customer Assistance Center at 1-877-794-
8675.
4
Load paper.
Fan the paper, and tap the
edges against a flat surface
to even the stack.
6
Install the Print Cartridge.
1. Open the operation
panel.
5. Close the cover, pressing
firmly on both front corners.
CHANGE CARTRIDGE
Display:
1=NEW, 2=OLD
7
Setup for Fax to E-mail
To use Fax to E-mail you must:
1. Have an Internet connection
2. Have a router, hub, or switch
through which the machine
can be connected to the
Internet.
1
1. Open the cover (➊) and
remove the tape (➋).
3 Attach the trays.
The stack should not
be higher than this line
Pull the paper
plate forward and
insert the paper
print side up.
Note: If you are loading legal paper, see pages 45
and 48 of the manual to change the paper size
setting to LEGAL (first install the print cartridge).
2. Remove only the tape from the new cartridge.
IMPORTANT: Make sure all tape is removed.
Caution! Do not touch
the gold contact area.
6. a. Press to select NEW.
b. Press .
The machine will print an alignment
page.
Connect one end of an
Ethernet cable (not included)*
to the LAN port on the machine,
and the other end to a LAN port
on your router, switch, or hub.
*Please purchase a 10Base-T/
100Base-TX straight-through
(regular) Ethernet cable.
2. Close the print
compartment cover.
(Do not install the print
cartridge yet.)
2
1
Attach the received
document tray
5
1. Connect the phone line cord
to the TEL. LINE jack and a
wall jack.
3. Make sure the cartridge holder is in
the position shown. Place your
fingers on top of the holder and open
the holder release.
7. In the alignment page,
locate the line that is
closest to a completely
straight line. Enter the
number of that line.
Example:
(To clear a mistake,
press .)
2
Connect the handset.
Attach the document
exit tray and flip out
the extension
Pull the received document tray
extension all the way out
2. Plug the power cord into a
120 V grounded outlet.
4. Insert the new print cartridge (➊).
Close the holder (➋), making
sure it clicks into place.
1
In this example, "15" is
closest to a straight line
The machine requires an IP See page 17 of the manual
to configure the E-mail
address to communicate.
Most networks assign an IP settings ("SENDER
address automatically when ADDRESS" and "SMTP
SERVER" must be
a device is connected.
configured to use Fax to E-
mail).
If your network requires that
a permanent IP address be
assigned to the machine,
see page 23 of the manual.
Attach the
paper tray
2
8. Press .
Note: To enter your
name and fax number
and set the date and
time so that they
appear at the top of
each fax page you
send, see pages 11 -
12 of the manual.
(TCADH3894XHZZ)
