Main unit

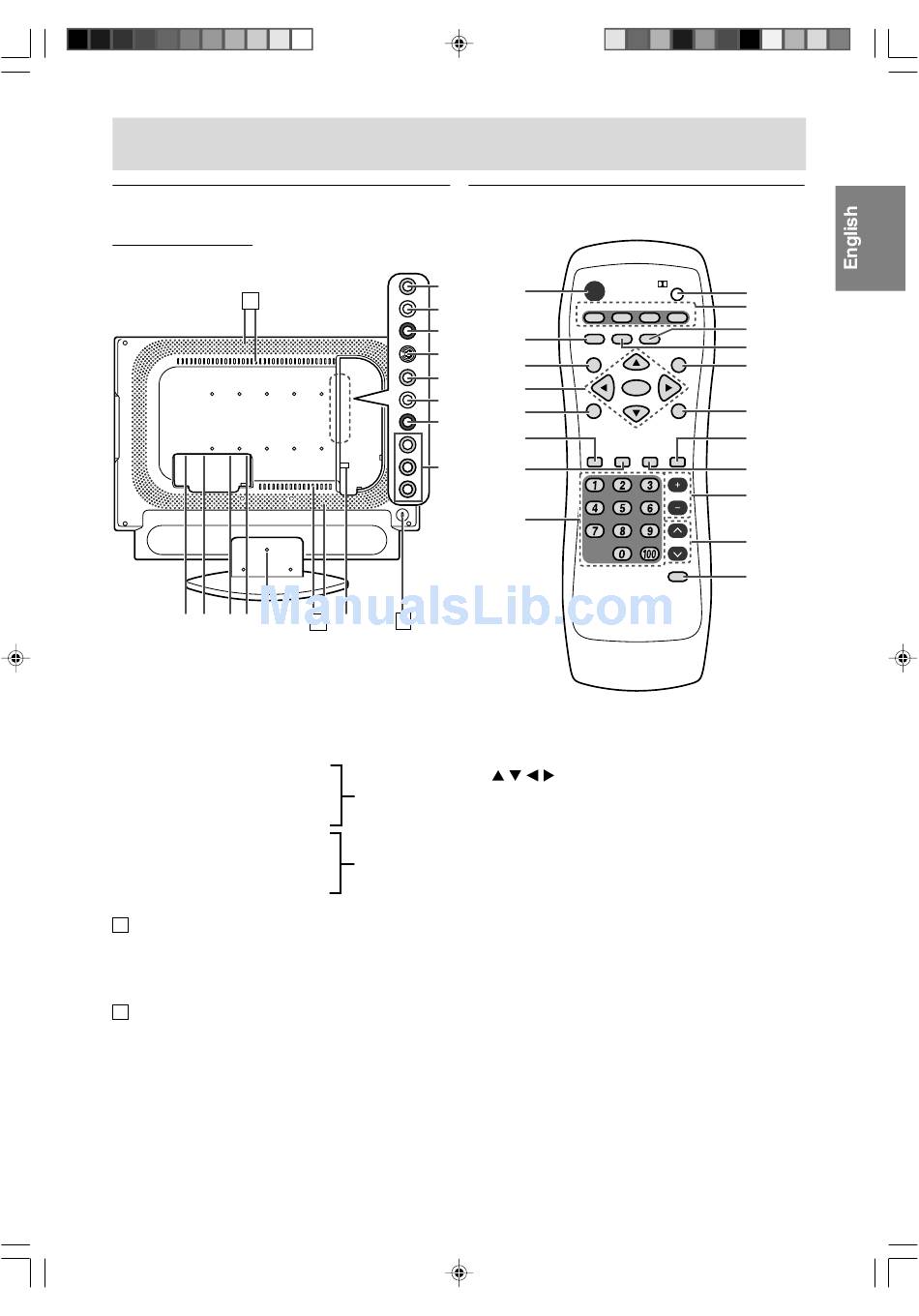

Rear view/left view
1 2 3 4
1. Power input terminal
2. PC digital RGB input terminal (DVI-D 24 pin)
3. PC analog RGB input terminal (mini D-sub 15 pin)
4. PC audio input terminal
5. Lug-hole for cable clamp (See next page.)
6. Antenna input terminal
7. Video input terminal
8. Audio input terminal - Left
9. Audio input terminal - Right
10. S-video input terminal
11. Video input terminal
12. Audio input terminal - Left
13. Audio input terminal - Right
14. Component input terminals
A Ventilation openings
Never block the ventilation openings as this may
lead to overheating inside the monitor and result
in malfunction.
B Security lock anchor
By connecting a security lock (commercially
available) to the security lock anchor, the monitor
is fixed so that it cannot be transported. The
security slot works in conjunction with Kensington
Micro Saver Security Systems.
IT-23M1U_gb_01.P65
Product description
A
5 B
A 6
AV-IN1
AV-IN2
9

Remote control

POWER
7
1
8
PC
9
FREEZE MULTI
2
10
SLEEP
3
11
4
12 BRIGHT
MODE
5
13
6
DISPLAY
14
7
8
1. POWER button
2. FREEZE button
3. SLEEP button
4. buttons and ENTER button
5. BRIGHT MODE button
6. DISPLAY button
7. CC (Closed Caption) button
8. Channel buttons
9. Dolby Virtual button
10. Input buttons (PC, TV, AV1, and AV2)
11. VIEW MODE button
12. MULTI button
13. MENU button
14. BRIGHT button
15. MUTE button
16. MTS (Multi ch TV Sound) button
17. VOL buttons
18. CH (channel) buttons
19. FLASHBACK button
E9
2004/08/20, 10:41
Virtual
9
10
TV AV1 AV2
11
VIEW MODE
12
MENU
13
ENTER
BRIGHT
14
15
CC MTS MUTE
16
17
VOL
18
CH
FLASHBACK
19
