MINI-2

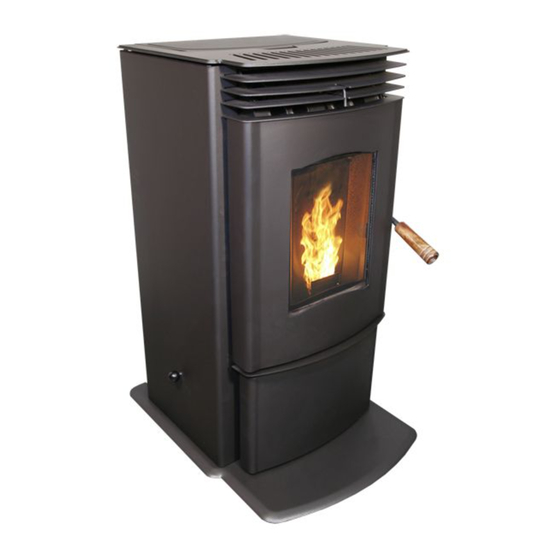

F R E E - S T A N D I N G P E L L E T S T O V E
OWNER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions
and installation inspection requirements in your area.
50-1927
4001609
Version Française: www.enviro.com/fr.html
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enviro MINI-2
Summary of Contents for Enviro MINI-2
- Page 1 OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-1927 4001609 Version Française: www.enviro.com/fr.html...
-
Page 2: Table Of Contents
Table of Contents Introduction...........................3 Rating Label Location........................3 Safety Warnings And Recommendations..................3 Pellet Quality..........................6 Emissions and Efficiencies........................7 Operating Instructions........................8 Control Board Functions......................8 Automatic Safety Features of your Pellet Stove.................8 Operating your Pellet Stove......................8 Turning your Pellet Stove Off....................9 Slider/Damper Set-Up......................10 Guidelines for fine-tuning for fuel quality................10 Routine Maintenance and Cleaning....................11 Installation..........................13 Deciding Where to Locate your Pellet Appliance................13... -
Page 3: Introduction
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. - Page 4 If this power cord should become damaged, a replacement power cord must be purchased from a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or...
- Page 5 GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.
-
Page 6: Pellet Quality
Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned. -
Page 7: Emissions And Efficiencies
This manual describes the installation and operation of the Enviro Mini pellet heater. This heater is U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 particulate emission standards. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 6,881-23,892 Btu/hr. -
Page 8: Operating Instructions
Operating Instructions ontRoL oaRD unctionS 1. AUGER LIGHT: This green light will flash in conjunction with the auger pulse. 2. MODE LIGHT: Responsible for signaling the state of the control AUGER board. When the light is flashing the stove is in an automatic start mode or the thermostat has control of the unit. -
Page 9: Turning Your Pellet Stove Off
Operating Instructions AUGER AUGER MANUAL MODE: MODE MODE All control of circuit board function is adjusted at the circuit board. To START: Press the ON / OFF button. The stove will turn on. The AUTO/OFF AUTO/OFF system light will flash. The Auger Light will flash with each pulse of the HIGH/LOW HIGH/LOW MANUAL... -
Page 10: Slider/Damper Set-Up
Operating Instructions LiDeR ampeR THE SLIDER / DAMPER HAS BEEN SET AT THE FACTORY. This is used to regulate the airflow through the pellet stove. The slider damper knob is located on the left cab side (see Figure 5). The slider damper factory setting has been set for peak efficiency operation (see Figure 6). -
Page 11: Routine Maintenance And Cleaning
Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its’ optimum and giving you excellent heat value: 2-3 Days / Weekly Semi-annually or 2 Tons of Fuel Burn Pot Liner Burn Pot and Liner Exhaust Vent... - Page 12 Routine Cleaning and Maintenance If the glass has build up that can not be removed with only the cloth, clean the glass using paper towel and a gas appliance glass cleaner, this may be purchased through most dealers. If a gas appliance glass cleaner is not available, use a damp paper towel dipped in fly ash to clean the glass.
-
Page 13: Installation
Installation eciDing HeRe to ocate youR eLLet ppLiance 1. Check clearances to combustibles. 2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3. Do not install the stove in a bedroom. 4. -
Page 14: Removing Pellet Stove From Pallet & Hearth Pad Installation
Installation emoving eLLet tove aLLet anD nStaLLing eaRtH Tool Required: ● T-20 screwdriver ● ” socket or flat head screwdriver Installation: 1. Slide a hearth pad tab through each of the three (3) slots on the hearth pad so the slotted end is up and Figure 11: Screw behind ash box. -
Page 15: Clearances To Combustibles
Installation LeaRanceS to ombuStibLeS IMPORTANT: Attach the Mini’s Hearth Pad when installing the unit on a combustible floor. The supplied hearth pad meet all the requirement of a proper hearth pad. If you do not use the supplied hearth pad a hearth pad must be used when on combustible material. -
Page 16: Vent Termination Requirements
Installation eRmination eQuiRementS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 18 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened. -
Page 17: Outside Fresh-Air Connection
Installation utSiDe ReSH onnection Outside fresh air is mandatory when installing this unit in airtight homes and mobile homes. A Fresh-air intake is strongly recommended for Outside Wall all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. -
Page 18: Mobile Home Installation
(3) screws evenly spaced. CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST ENVIRO Mini BE MAINTAINED. Optional Hearth Pad Flooring Steel Frame ” Lag Bolts... -
Page 19: Horizontal Exhaust Through Wall Installation
Installation oRizontaL XHauSt HRougH nStaLLation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment. -
Page 20: Through Wall With Vertical Rise And Horizontal Termination Installation - Freestanding
Installation 9. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another length of pipe (PL type) to the outside of the home to connect to the first section. Do not forget to place high temperature silicone around the pipe that passes through the thimble. -
Page 21: Inside Vertical Installations
Installation nSiDe eRticaL nStaLLationS 1. Choose a stove location that is ideal. See the Rain Cap (ensure cap is section “d eciding here tO Ocate yOur ellet at least 3ft above the 2 ft .” roof at the lowest point) ppliance (600 mm) 2. -
Page 22: Hearth Mount Installation
Rain Cap Steel Plate or Flashing Installation Flexible or Rigid 6" Stainless Steel Liner eaRtH ount nStaLLation Damper Removed or Fastened Open Refer to Figures 29 and 30. 10" (25.4 cm) Mantel Minimum 8" (20 cm) 1. Install the hearth pad. from top of stove Flue 2. -
Page 23: Top Vent Adaptor Kit (50-4116)
Installation (50-4116) DapteR *In order to achieve the maximum rated efficiency of 80.2% HHV purchase of a top vent adapter kit is required. Use the sheet metal screws provided to attach the kit to the rear of the unit as shown. Please see kit instruction manual for more detailed installation instructions. -
Page 24: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1. - Page 25 Troubleshooting Poor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. Exhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. Check the fuse on the circuit board.
- Page 26 Troubleshooting 7. The convection blower will not function normally. Clean all grill openings at the back and below unit . Press the fan button; does the fan come on? Press again to verify that the blower turns on; if, not contact your local dealer for service.
-
Page 27: Wiring Diagram
Wiring Diagram Armor Cable Supplied Grey Optional Exterior Vacuum Exhaust Blower Grey Switch Black White White Combustion Blue Brown Blower Exhaust Temperature Sensor Power Cord Brown Ground Black 115V 115V White Black Black White 220V 220V Brown Blue Thermostat Common 5 Amp Fuse Ignitor... - Page 28 Parts List Reference Description Part Number Number 120°F (49°C) Ceramic Fan Temperature Sensor EC-001 Auger Motor - 115V EF-001 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 Vacuum Switch - 115V EF-017 Silicone Hose EF-018 Aluminum Hose Barb EF-019 Shoulder Bolt, Hardened Bushing &...
-
Page 29: Parts List
Parts List Reference Description Part Number Number Auger 50-1161 Firebox Panel Set with Insulation 50-1162 Front Louvers 50-1169 Lid Set 50-1171 Stove Top Assembly 50-1172 Hopper Guard 50-1174 Handle Bracket 50-1177 Draft Slider 50-1178 Ash Pan Cover 50-1180 Ash Pan 50-1969 Ash Shelf Louver 50-1182... -
Page 30: Parts Diagram - Components
Parts Diagram - Components G H/ M AN A IR T IO Mini - Components September 2008... -
Page 31: Parts Diagram - Steel
Parts Diagram - Steel... -
Page 32: Warranty
Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, ... -
Page 33: Notes
Notes... -
Page 34: Installation Data Sheet
SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com Summer 2021 C-16232...
