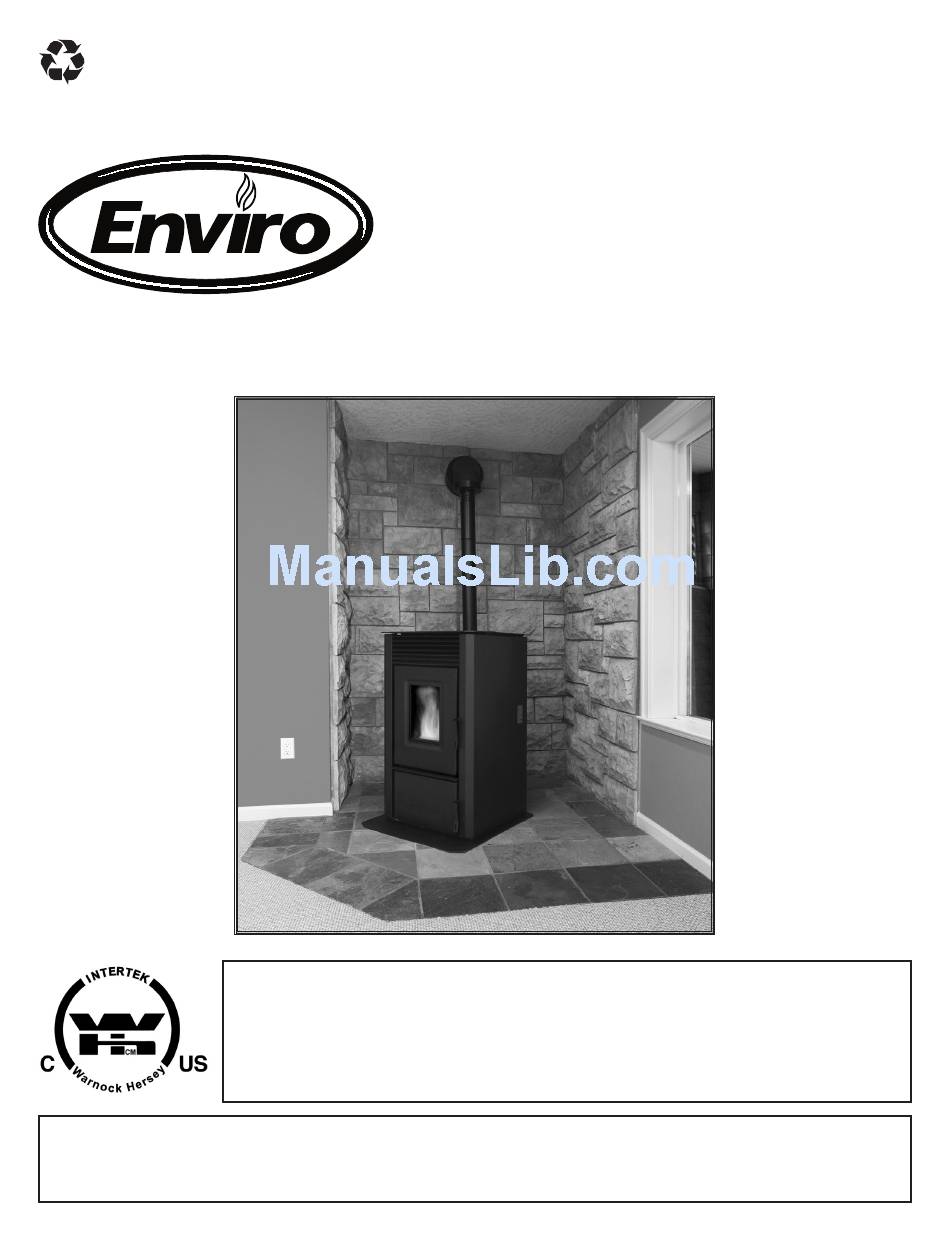

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PELLET STOVE
Enviro
Maxx
TECHNICAL MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE
TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-1532

Advertisement

Table of Contents
loading

Related Manuals for Enviro Maxx

Summary of Contents for Enviro Maxx

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. PELLET STOVE Enviro Maxx TECHNICAL MANUAL PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.

  • Page 2: Table Of Contents

    Table of Contents Safety Warnings & Recommendations....................3 Installation.............................5 Rating Label Location........................5 Deciding Where to Locate your Pellet Appliance................5 Removing Pellet Stove From Pallet.....................5 Dimensions & Specifications......................6 Clearances to Combustibles.......................7 Hearth Shield Installation......................7 Thermostat Installation......................7 Vent Termination Requirements....................8 Outside Fresh-Air Connection.....................9 Exhaust And Fresh Air Intake Locations..................9 Mobile Home Installation......................10 Corner Through Wall Installation....................10...

  • Page 3: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 4 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 432 watts.

  • Page 5: Installation

    Installation ATING ABEL OCATION The rating label is located on the inside of the hopper lid. ECIDING HERE TO OCATE YOUR ELLET PPLIANCE 1. Do not install the stove in a bedroom or room where people sleep in. 2. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation.

  • Page 6: Dimensions & Specifications

    " (680mm) " (637mm) " (650mm) " (1063mm) " (1047mm) " (605mm) Figure 2: Dimensions of Maxx. Table 1: Maxx Specifications. Testing Standard Frequency Voltage ASTM 1509-04 60 Hz 110 - 120 V Fuel type Current Max Power wood pellets - 6mm (1⁄4”) dia.

  • Page 7: Clearances To Combustibles

    Corner to unit 4 inches (10 cm) Ceiling height 90 inches (228.5 cm) Figure 3: Maxx Clearance to Combustibles. EARTH HIELD NSTALLATION 1. Remove the right and left hand cabinet sides. Partially back out the two (2) T-20 Torx screws on the back of the each panel and the two (2) located on the front inside edge below the louvers and ash shelf.

  • Page 8: Vent Termination Requirements

    Installation ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.

  • Page 9: Outside Fresh-Air Connection

    (107 mm) " (361mm) FRESH AIR INTAKE. Base of unit to center of intake min. 14 ” (361 mm) Center of unit to center of intake 51⁄8” (130 mm) " " (130mm) (107mm) Figure 8: Maxx Inlet and Outlet Location.

  • Page 10: Mobile Home Installation

    Installation OBILE NSTALLATION ● Secure the heater to the floor using the four (4) holes in the pedestal. ● Ensure the unit is electrically grounded to the chassis of your home (permanently). ● Do not install in a room people sleep in. ●...

  • Page 11: Horizontal Exhaust Through Wall Installation

    Installation ORIZONTAL XHAUST HROUGH NSTALLATION Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment and with all local regulations, including those referring to regional and national.
  • Page 12 Installation 8. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another length of pipe to the outside of the home to connect to the first section. Do not forget to place high temperature silicone around the pipe that passes through the thimble.

  • Page 13: Recommended - Through Wall With Vertical Rise And Horizontal Termination Installation

    Installation RECOMMENDED - T HROUGH ERTICAL ISE AND ORIZONTAL ERMINATION NSTALLATION Termination cap 90°elbow Wall framing A 45° down elbow may be used in place of the Vertical section termination cap (or stainless steel termination of vent pipe hood). Wall strap Horizontal frame for thimble...

  • Page 14: Outside Vertical Installations

    Installation UTSIDE ERTICAL NSTALLATIONS To accomplish an outside vertical pipe installation, follow the “H ” ORIZONTAL XHAUST HROUGH NSTALLATIONS section and then finish it by performing the following (refer to Figure 15). 1. Install a tee with clean out on the outside of the house. 2.

  • Page 15: Inside Vertical Installations

    Installation NSIDE ERTICAL NSTALLATIONS 1. Place the unit on the hearth pad if a hearth pad is to be used (or on solid material if installed on a carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will be 3”...

  • Page 16: Hearth Mount Installation

    Installation EARTH OUNT NSTALLATION Damper Removed or Fastened Open Mantel Minimum 200mm (8") from top of stove Clean-out Min 150mm (6") Fresh-air intake should com from chimney. If holes Floor already exist fresh-air Protection intake can be taken through back of the fireplace or Masonry Fireplace Combustible Floor through the ash dump.

  • Page 17: Slider/Damper Set-Up

    Installation LIDER AMPER This is used to regulate the airflow through the pellet stove. The slider damper should be set by a trained technician using magnehelic. 1. To install the optional slider damper Exhaust Channel rod remove the left cabinet side panel. Partially back out the two (2) T-20 Torx screws on the back of the each panel and Exhaust Fan...

  • Page 18: Troubleshooting

    Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.
  • Page 19 Troubleshooting üPoor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning üExhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower, if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. üCheck the fuse on the circuit board.
  • Page 20 Troubleshooting 7. The convection blower will not function normally. üClean all grill openings at the back and below unit . üCheck the Voltage across the blower wires, It should adjust with the heat output settings. If not contact your local dealer for service. 8.

  • Page 21: Wiring Diagram

    Wiring Diagram Brown Exhaust Temperature Sensor Brown White Combustion Blue Blower Black White 120V Black Grounded Plug Ignitor Ground Thermostat White Auger Motor Black White Yellow 5 Amp Fuse Vacuum Yellow Switch Black Yellow White Blue Brown Brown White Convection Purple Purple Blower...

  • Page 22: Parts List

    50-1531 Maxx Domestic Technical Manual 50-1532 600 Watts Backup System 50-1547 Auger Stops (Clear Rubber) 50-1559 Maxx Door - Small Glass 50-1631 Maxx Door - Large Glass 50-1632 Hopper Lid Hinge - Left 50-1633 Hopper Lid Hinge - Right 50-1634...
  • Page 23 Parts List Reference # Description Part # Hopper Lid 50-1635 Trivet 50-1636 Top Front with Mount 50-1637 Heat Exchanger Rod 50-1638 Back Grill - Top 50-1639 Back Grill - Bottom 50-1640 Cabinet Side - Left 50-1641 Cabinet Side - Right 50-1642 Louver Assembly 50-1643...

  • Page 24: Parts Diagram - Components

    Parts Diagram - Components Max - Components June 2007 � �� �� � �� �� �� �� �� �� � �� �� �� �� �� � �...

  • Page 25: Parts Diagram - Steel

    Parts Diagram - Steel...

  • Page 26: Warranty

    Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality.
  • Page 27 Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
  • Page 28 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.

  • Page 29: Installation Data Sheet

    SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com May 2, 2008 C-11582...
