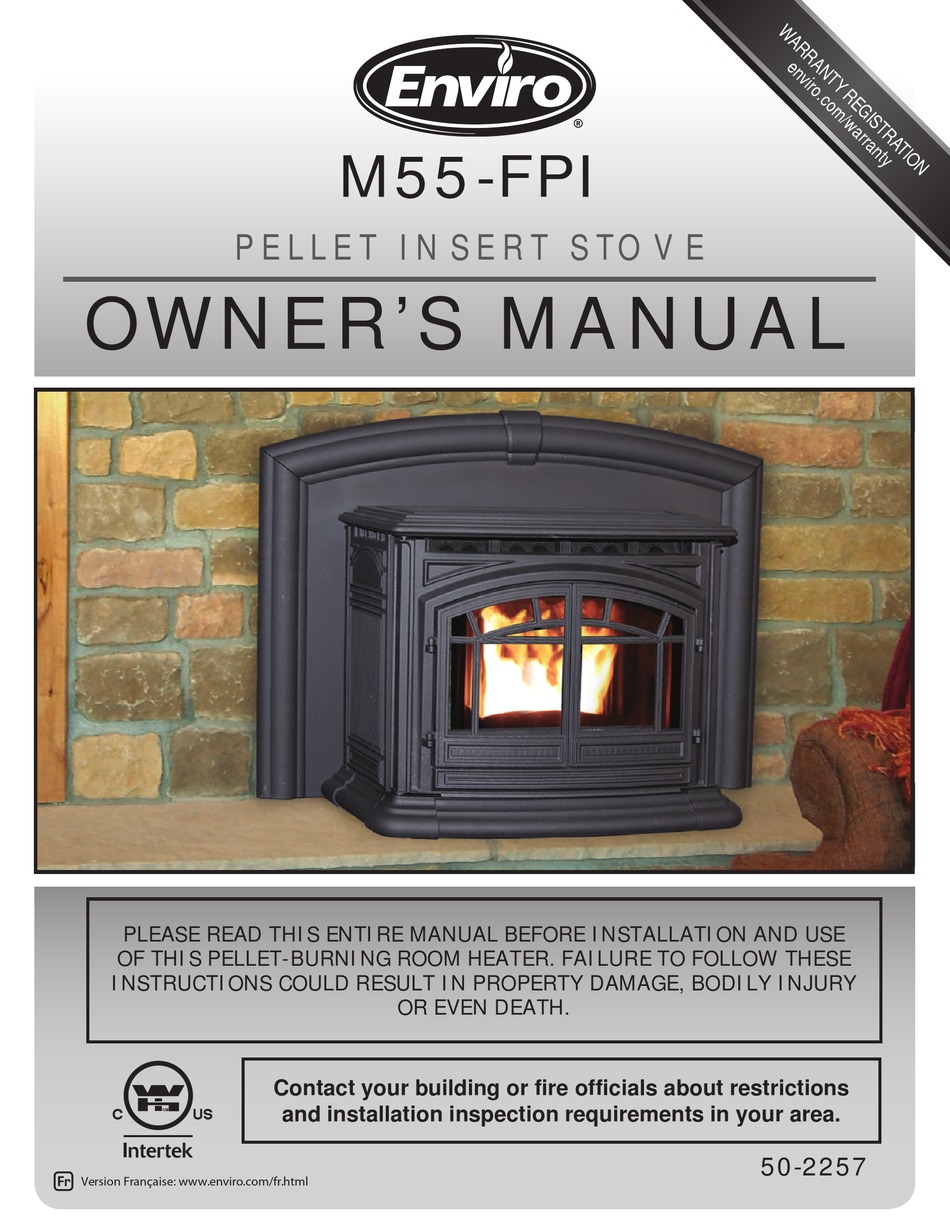

M55-FPI
P E L L E T I N S E R T S T O V E
OWNER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions
and installation inspection requirements in your area.
50-2257
Version Française: www.enviro.com/fr.html
Advertisement
Table of Contents
Related Manuals for Enviro M55-FPIs640
Summary of Contents for Enviro M55-FPIs640
- Page 1 OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-2257 Version Française: www.enviro.com/fr.html...
-
Page 2: Table Of Contents
Table of Contents Introduction.......................3 Rating Label Location....................3 Fuel Quality........................3 Emissions and Efficiencies......................4 Safety Warnings & Recommendations..................5 Operating Instructions......................7 Dimensions & Specifications..................7 Control Board Functions....................8 Automatic Safety Features of Your Pellet Stove............8 Operating Your Pellet Stove..................9 Turning Your Pellet Stove Off..................10 Slider/Damper Set-Up....................10 Adjustable Auger Cover Set-Up...................11 Routine Cleaning and Maintenance..................12... -
Page 3: Introduction
Fuel quality is important, please read the following: Your Enviro pellet stove has been designed to burn ¼” (6mm) dia wood pellets and other organic fuels. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual. -
Page 4: Emissions And Efficiencies
FFiciency Rates: This manual describes the installation and operation of the Enviro M55 pellet heater. This heater meets the 2015 U.S. Environmental Protection Agency’s wood emission limits for wood emission limits sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 9,200-45,500 Btu/hr. -
Page 5: Safety Warnings & Recommendations
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. - Page 6 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 504 watts.
-
Page 7: Dimensions & Specifications
Specifications imensions 16 1/8" 24 3/4" 26 7/8" 12" 32 7/8" 23" 44" Figure 1: Dimensions of M55C-FPI. PeciFications Input rating when using: Wood Pellets/Corn - 55,000BTU (16.1KW•hr) & Wheat/Barley - 53,000BTU (15.5KW•hr). Table 1: M55C-FPI Specifications. Description Fuel type Residential Pellet Heater 6mm (¼”) dia. -
Page 8: Operating Instructions
Operating Instructions ontRoL oaRd unctions Note: The Control Panel is located underneath the units Cast Hopper Lid which is attached to a safety switch that will immediatley stop the auger. The switch will stop operation of the stove and display a #4 flash code if the lid is not closed within two minutes. -
Page 9: Operating Your Pellet Stove
Operating Instructions PeRating eLLet tove THE UNIT WILL NOT OPERATE WITH THE DOOR OR ASH BOX OPEN. Open the hopper lid only to re- fuel or to adjust the controls. the unit will shut down if the hopper lid is left open for longer than two minutes. -
Page 10: Turning Your Pellet Stove Off
Operating Instructions setting. If the thermostat contacts remain open, the stove automatically begins its shutdown routine. The stove will re-light when the thermostat contacts close again. uRning eLLet tove • MANUAL and HI / LOW mode: To turn the unit OFF, simply press the ON / OFF button. This will stop the feed of pellets. -
Page 11: Adjustable Auger Cover Set-Up
Operating Instructions djustabLe ugeR oveR The auger cover is located within the hopper. This adjustment allows for greater control of the feed rate than offered by the feed trim positions on the control panel. Due to varying density by volume in fuels it may be necessary to adjust this cover either up or down to control the maximum output of 55,000 BTU. -
Page 12: Routine Cleaning And Maintenance
Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its optimum and giving you excellent heat value. The appliance, flue gas connector and the chimney flue require regular cleaning. Check them for blockage prior to re-lighting after a prolonged shut down period. - Page 13 Routine Cleaning and Maintenance Front castings Heat eXcHangeR tubes (Weekly) removed for The exchanger tube scraper rod handle is located above clarity the firebox door. Move the handle all the way in and out a few times (ONLY WHEN THE UNIT IS COLD) in order to clean away any fly ash that may have collected on the heat exchanger tubes.
- Page 14 Remove the glass and any broken pieces. High temperature fiberglass tape should be used around the glass in the same location as the original fiberglass. Insert the glass into the retainer and screw the door to the retainer. The use of substitute materials is prohibited. Use Enviro Part: #50-2119...
-
Page 15: Optional Service Rail Kit
Routine Cleaning and Maintenance Optional Service Rail Kit (Part number 50-2262) 1. Remove Cast Ash Drawer Front. 2. Slide open the Cast Top. 3. Lift off Cast Sides. 4. Clip Side Rails to unit. 5. Attach Front Rail using the quick release pins as shown in Fig. -
Page 16: Technical Installation Instructions
Technical installation instructions FoR QuaLiFied instaLLeRs onLy Installation eciding HeRe to ocate youR eLLet PPLiance 1. Unit must be installed in a masonry fireplace. 2. Do not install the stove in a bedroom or room where people sleep in. 3. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation. -
Page 17: Installing The Inset Frame And Levelling
Installation NOTE: Installer must attach the metal “fireplace altered” tag using screws or nails to the fireplace, in a location readily visible should the fireplace insert be removed, if the fireplace has been modified to accomodate the M55C-FPI. & L nstaLLing tHe nseRt Rame... -
Page 18: Clearances To Combustibles
Installation To Start Stove: S LABEL / NE RETIREZ PAS CETTE ÉTIQUETTE grades of wood LeaRances to ombustibLes of pellets in the INSTALLED AS A FIREPLACE INSERT STOVE MODEL (FPI) / A INSTALLE To Operate Stov COMME UN MODELE SUR PIED DE POELE. MODE: (Requir Minimum clearances to combustible materials./ Les dégagements minimums aux thermostat cont... -
Page 19: Vent Termination Requirements
Installation eRmination eQuiRements IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened. -
Page 20: Outside Fresh Air Connection
Installation utside ResH onnection This Heater must have adequate air for proper combustion in the room that it is installed. A Fresh-air intake is strongly recommended for all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. -
Page 21: Masonry Fireplace Installation
Installation Installation asonRy iRePLace nstaLLation non-combustible manufactured Rain Cap hearth pad (min. 24 gauge galvanized Steel Plate or Flashing steel or similar) must cover combustible flooring underneath, as well as 6” (150 Flexible or Rigid 4" mm) in front of the heater and 6” (150 Stainless Steel Liner mm) to the side of the heater. -
Page 22: Positive Flue Connection
Installation (usa o ositive onnection WitHout a eLine This unit does not require a full reline (in USA only) when installing into a masonry fireplace, however, it is recommended to ensure proper drafting of the appliance. IMPORTANT: Ensure the chimney and firebox are cleaned and free of all debris, including soot and ashes, before proceeding with this installation. -
Page 23: Built-In Installation
Installation uiLt nstaLLation Installation without a masonry fireplace - The M55C-FPI can be installed without an existing masonry fireplace by building an enclosure for the unit to be installed in. This enclosure must be a minimum of 18” deep, 36” wide and 23-1/4” high and made with ½”... -
Page 24: Horizontal Exhaust Through Wall Installation
Installation oRizontaL XHaust HRougH nstaLLation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment and with all local regulations, including those referring to regional and national. -
Page 25: Through Wall With Vertical Rise And Horizontal Termination Installation
Installation Recommended - t HRougH eRticaL ise and oRizontaL eRmination nstaLLation NOTE - This venting configuration is only for use with the Built-In installation. Termination cap 90°elbow Wall framing Vertical section of vent pipe Wall strap Horizontal frame for thimble Clean out tee Wall thimble... -
Page 26: Outside Vertical Installation
Installation utside eRticaL nstaLLations To accomplish an outside vertical pipe installation, follow the “H ” orizontal xHauSt HrougH nStallationS section and then finish it by performing the following. 1. Install a tee with clean out on the outside of the house. 2. -
Page 27: Inside Vertical Installation
Installation nside eRticaL nstaLLations 1. Install a tee or 90° elbow on the inside of the house. 2. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent straight and secure. All joints in the exhaust venting system must be fastened with at least three (3) screws. -
Page 28: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1. - Page 29 Troubleshooting • Exhaust Temperature Sensor failure. Bypass sensor located on Exhaust Blower, if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. • Check the agitator to make sure it is turning properly 3.
- Page 30 Troubleshooting 7. The convection blower will not function normally. • Check the line fuse to see if it has blown. • Clean all grill openings at the back and below unit . • Check the Voltage across the blower wires, It should adjust with the heat output settings. If not contact your local dealer for service.
-
Page 31: Wiring Diagram
Wiring Diagram Black Brown 2µF Capacitor Black Exhaust Blue Combustion Temperature Brown Blower Blue Blue Sensor Black White 120V Ground Air Pump White Plug Green Ground Ignitor White Ground Thermostat White Agitator Blue/Yellow Black Motor White Auger Yellow Yellow Motor Purple Brown Blue... -
Page 32: Parts List
Parts List Reference # Description Part # OPTION Log Set 50-1963 OPTION M55CI O/S Filler Panel 50-2155 OPTION Pellet Stove Thermostat 50-1971 OPTION Glass Tinted M55C 50-2247 OPTION M55C-FPI Service Rails 50-2262 Hopper Switch 50-2052 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 120°F (49°C) Ceramic Fan Temp Sensor EC-001... - Page 33 Parts List Reference # Description Part # M55C-FPI Control Panel with Decal 50-2267 Exhaust Channel CW Sensor 50-2286 Baffle 50-2287 ¼” Spring Pin 50-1701 Agitator Bushing Left Side 50-1703 M55C-FS Wiring Harness 50-2149 Latch Bolt & Rollers C/W Nut 50-2213 Motherboard Mounting Panel 50-2288 Burn Pot Scraper Tool...
- Page 34 Parts List Reference # Description Part # M55C-FPI Cast Side Right - PD 50-2270 M55C-FPI Cast Side Right - Beach 50-2275 M55C-FPI Cast Side Right - Chestnut 50-2281 M55C-FPI Cast Side Right - DB 50-2298 M55C-FPI Cast Ash Door - PD 50-2271 M55C-FPI Cast Ash Door - Beach 50-2276...
-
Page 35: Parts Diagram - Components
Parts Diagram - Components... -
Page 36: Parts Diagram - Steel
Parts Diagram - Steel... -
Page 37: Notes
Notes... - Page 38 Notes...
-
Page 39: Warranty
Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, ƒ... -
Page 40: Installation Data Sheet
SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) ADDRESS: DATE OF INSTALLATION:___________ (dd/mm/yyyy) _________________________________________ MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com May 8, 2015 C-14629...
