Rack-Mounting The Firewall By Using Front Mounting Brackets - H3C SecPath F1070 Manual

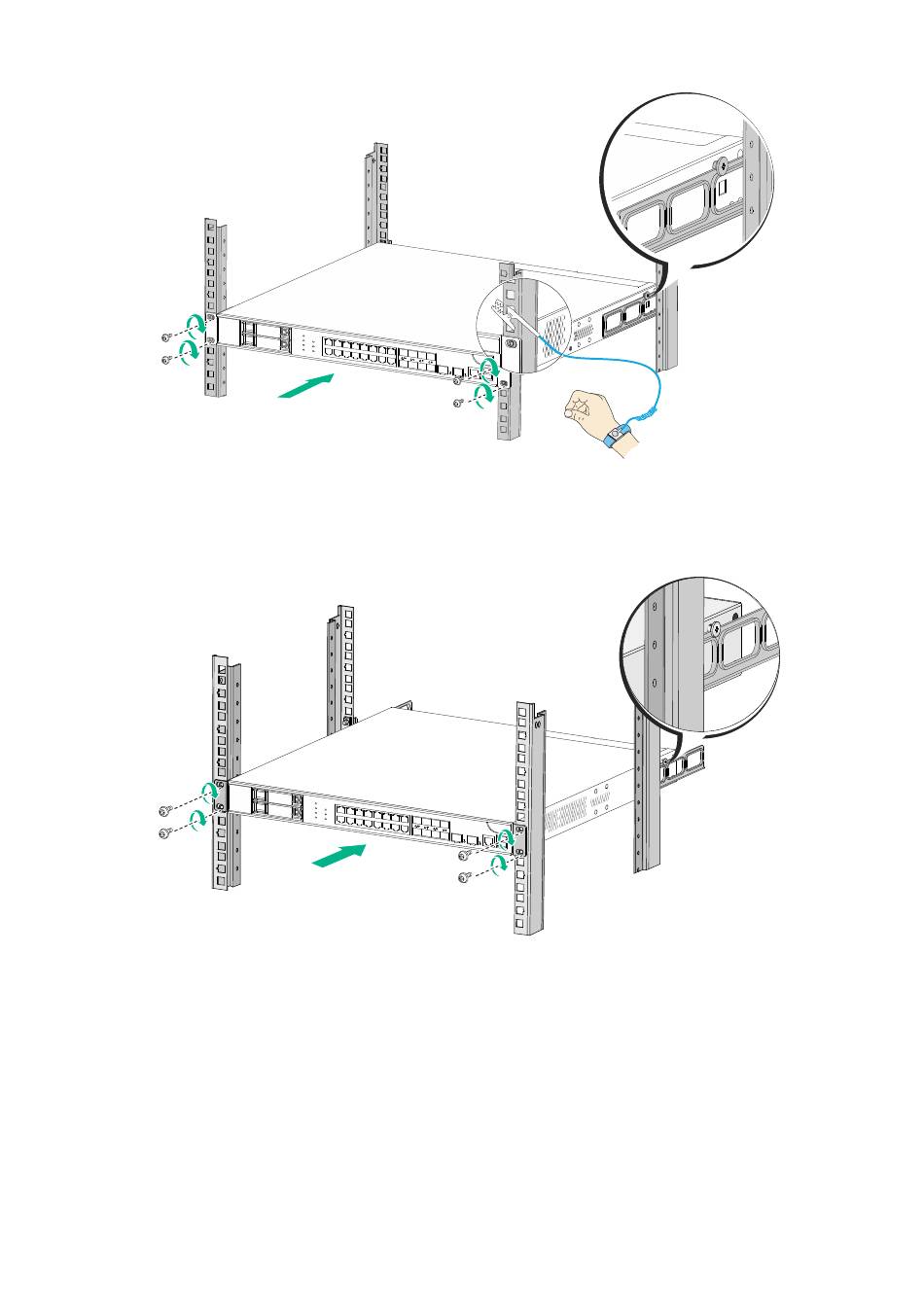

Figure2-6 Mounting the firewall in the rack (with the wide flange of the rear mounting
brackets inside the rack)
Figure2-7 Mounting the firewall in the rack (with the wide flange of the rear mounting
brackets outside the rack)

Rack-mounting the firewall by using front mounting brackets

The F1005 and F1010 firewalls support this installation method.
To install the firewall in a standard 19-inch rack by using front mounting brackets:
1. Wear an ESD wrist strap and make sure the wrist strap makes good skin contact and is reliably
grounded.
2. Unpack the firewall and accessories.
3. Mark the cage nut installation positions on the rack posts by using the mounting brackets.
4. Install cage nuts.
