H3C FAN-120-1-A User Manual

H3C FAN-120-1-A Fan Tray User Manual-APW100
H3C FAN-120-1-A

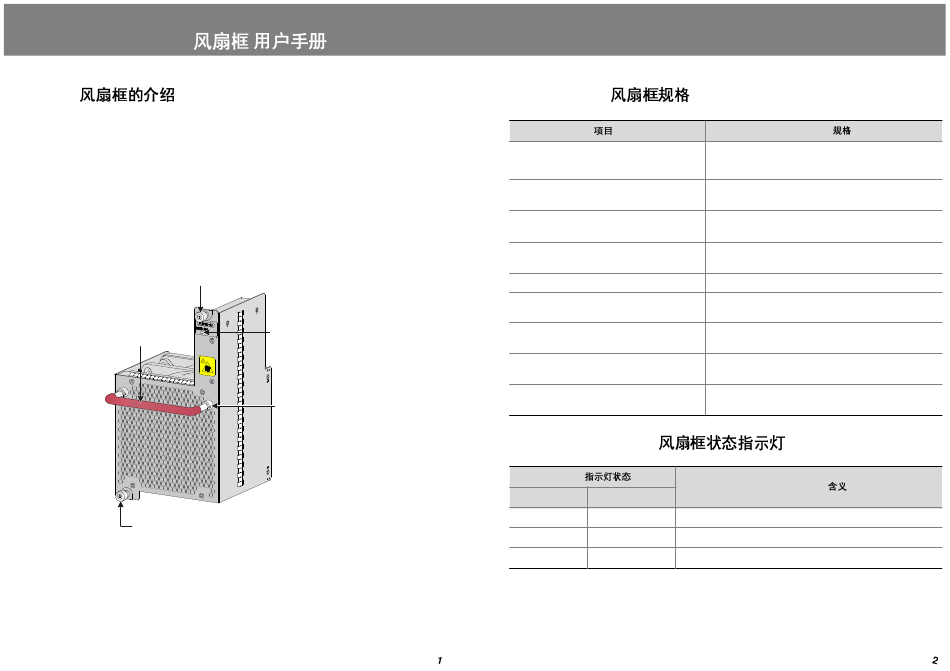

Overview
The FAN-120-1-A fan tray provides a maximum airflow of 280 cubic feet per minute (CFM).
The fan tray draws ambient air into the chassis through the air vents in the MPU and LPU
panels and exhausts the air carrying heat through the air vents in the fan tray.
FAN-120-1-A 风扇框能够提供的最大风量为280 CFM（立方英尺/分钟）。
该风扇框采用抽风设计，冷风由前面板主控板区和业务板区通风孔进入，携带运行产生的热
量，从风扇框通风孔排出。
Captive screw 松不脱螺钉
Handle 风扇框把手
Captive screw 松不脱螺钉
Panel side view 面板侧外观
-APW100
Fan tray status LED
风扇框状态指示灯
Handle pivot
风扇框把手转轴
Specifications
Item
Dimensions (H × W × D )
风扇框尺寸（高 × 宽 × 深）
Airflow direction 风道方向
Max fan speed 最大风扇转速
Max airflow 最大风量
Max power consumption 最大功耗
Operating temperature 工作环境温度
Operating humidity 工作环境相对湿度
Storage temperature 存放环境温度
Storage humidity 存放环境相对湿度
Fan tray status LED
Status
OK
FAIL
On 常亮 Off 灯灭
Off 灯灭 On 常亮
Off 灯灭
Off 灯灭
BOM: 3101A0RJ
Specification
123.3 × 214.1 × 108.8 mm (4.85 × 8.43 × 4.28 in)
123.3 × 214.1 × 108.8 mm
From the port side to the power module side
风扇从端口侧向电源侧抽风
11000 RPM
11000 R.P.M（转/分钟）
280 CFM
280 CFM（立方英尺/分钟）
270 W
0°C to 40°C (32°F to 104°F)
0°C～40°C
5% RH to 95% RH, noncondensing
5%～95% RH, 无冷凝
–40°C to +70°C (–40°F to +158°F)
–40°C～70°C
5% RH to 95% RH, noncondensing
5%～95% RH, 无冷凝
Description
The fan tray is operating correctly. 风扇框正常工作
The fan tray is faulty.风扇框故障
The fan tray is not powered on. 风扇框未上电
