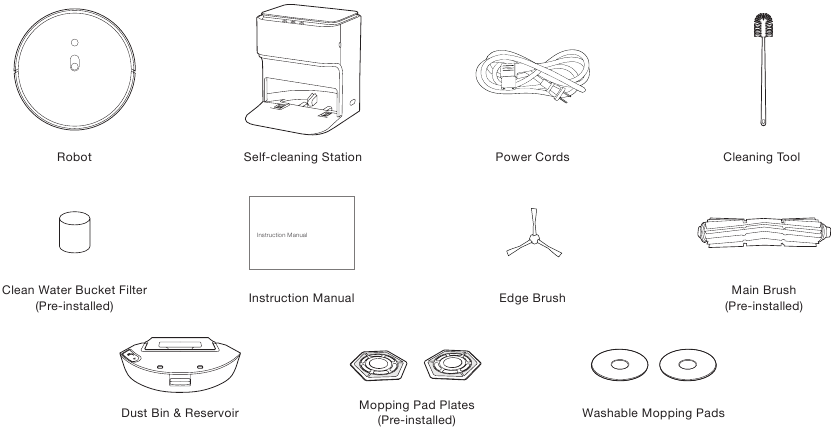

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

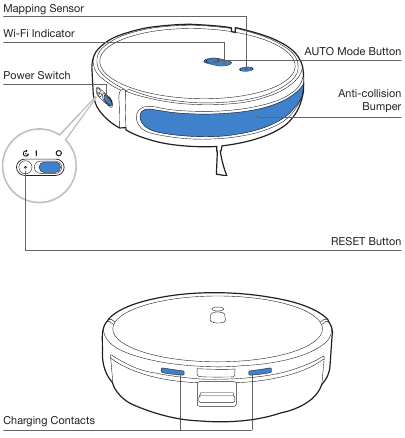

Main Unit

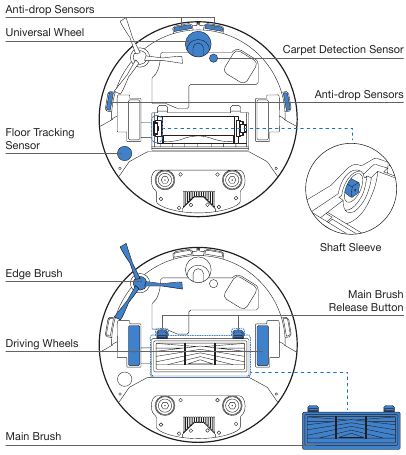

Bottom View

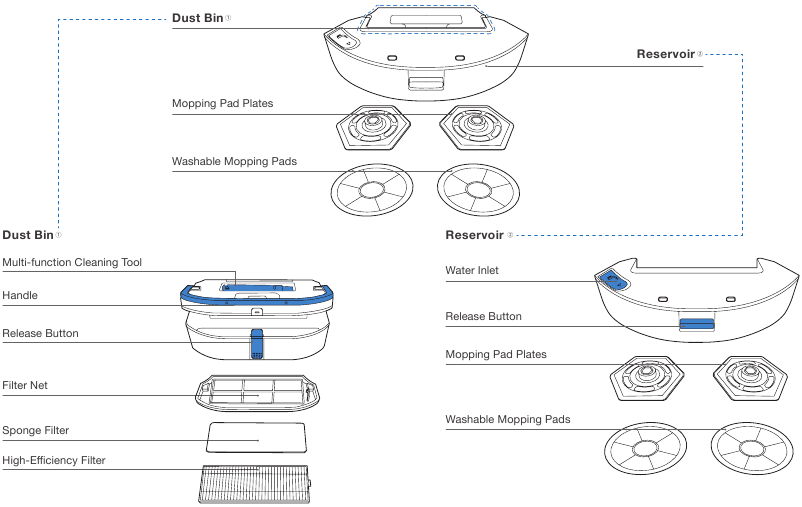

Dust Bin & Reservoir

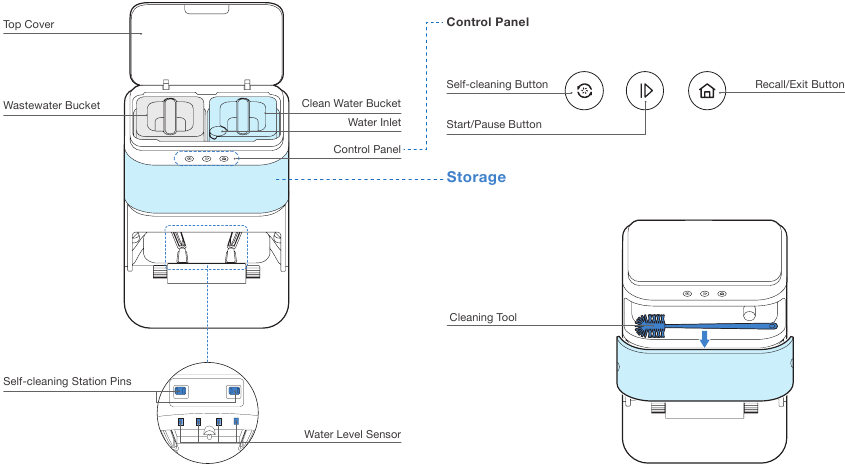

Self-cleaning Station

Operating and Programming

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

During the first use, make sure each room door is open to help Robot fully explore your house.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Make sure areas to be cleaned are well illuminated so Mapping Sensor works properly.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Put away objects including wires, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the Detection Sensor.

Quick Start

Before using Robot, please remove all protective films or protective strips on Robot and Self-cleaning Station.

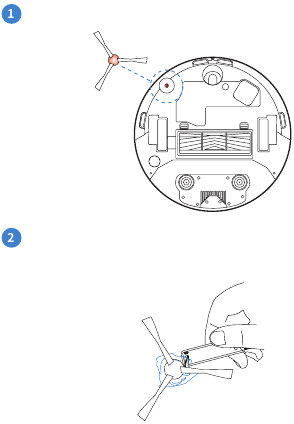

1. Install Edge Brush

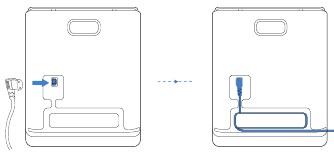

2. Assemble Self-cleaning Station

3. Self-cleaning Station Placement

   Keep the area around the Station clear of objects and reflective object surfaces.
4. Add Water to Clean Water Bucket

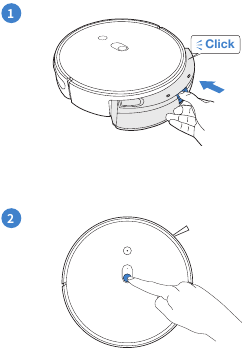

5. Power ON
   Note: I = ON, O = OFF.
   Robot cannot be charged when being powered OFF.
6. Charge Robot


yeedi App

To enjoy all available features, it is recommended to control your Robot via the yeedi App.

Before you start, make sure that:

• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly flashing.


Wi-Fi Indicator Light

	Slowly flashing	Disconnected to Wi-Fi or waiting for Wi-Fi connection
	Rapidly flashing	Connecting to Wi-Fi
	Solid	Connected to Wi-Fi

Tips:
If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual.

Operating the Unit

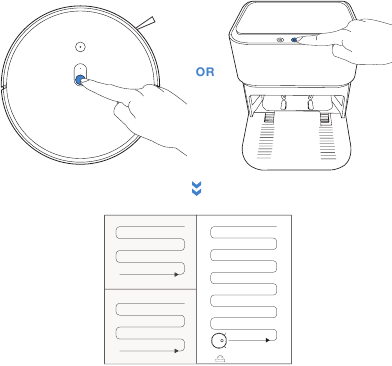

1. Start
   Please start mapping in Vacuum Mode to ensure efficiency. Take off the Mopping Pad Plates to switch to Vacuum Mode; Do not remove the Reservoir.

2. Pause
   Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on Robot to wake it up.

3. Wake Up

4. Power OFF
   Note: When Robot is not working, it is recommended to keep it switched ON and charging.


Dust Bin & Reservoir

Note:

1. To prolong the service life of the reservoir, it is recommended to use purified water or softened water for the mopping system.
2. Empty the reservoir after Robot finishes mopping.

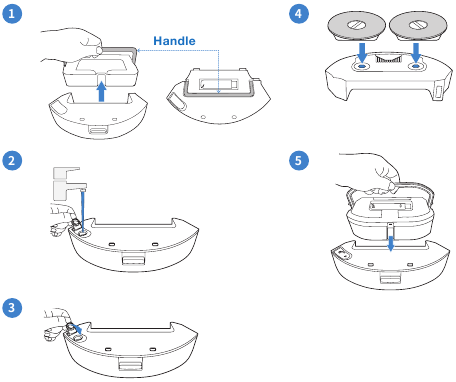

Add Water

*Make sure the lid is tightened.
An untightened lid may cause water leakage.

Install Dust Bin & Reservoir

Self-cleaning Station

1. Start/Pause Robot

2. Recall Robot/ Direct Robot to Exit Self-cleaning Station

3. End Cleaning Task, Direct Robot Back to Self-cleaning Station & Start Cleaning Mopping Pads


Maintenance

Regular Maintenance

To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: yeedi manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

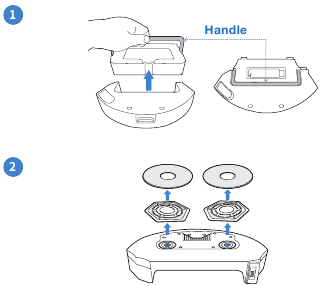

Reservoir

Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug Self-cleaning Station.
Note: After Robot finishes cleaning, empty the Reservoir.

Note:

1. Use the Self-cleaning Station to clean and dry the Washable Mopping Pads. To extend the life of the Washable Mopping Pads, do not remove them from the Mopping Pad Plates too often.
2. Rinse the Mopping Pad Plates with water. Do not use a cloth or any other object to scrape the plates as this may shorten the life of its fastener.
3. Please replace the Washable Mopping Pads when yeedi APP prompts.

To purchase accessories, please visit https://us.yeedi.com.

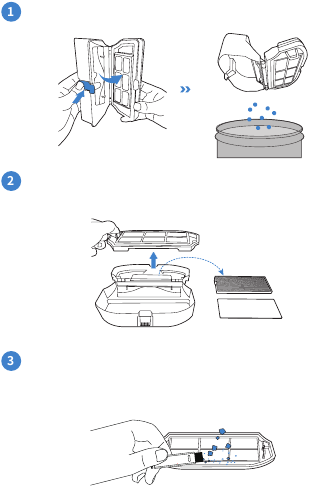

Dust Bin

Note:

1. Please rinse the filter with water as shown below.

2. Do not use finger or brush to clean the filter.
3. Be sure to dry out the filter for at least 24 hours after washing.


Self-cleaning Station

1. Add Water to Cleaning Tank

2. Clean Cleaning Tank

3. Drain the Water Out of Cleaning Tank

4. Empty Wastewater Bucket

5. Clean the Clean Water Bucket Filter

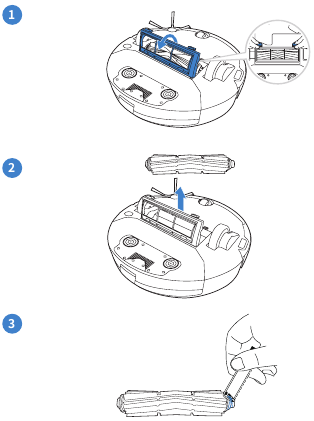

Main Brush

Note: If Shaft Sleeve of the Main Brush falls off, please clean up the debris and reinstall it.

Edge Brush

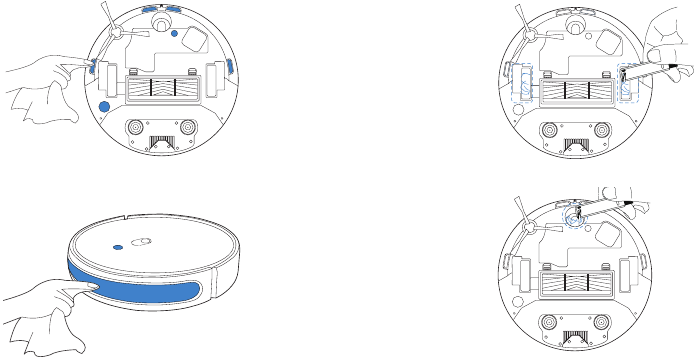

Other Components

*Please wipe the components with a clean, dry cloth.

Note: Please be alert that Universal Wheel may result in floor damage if it is clogged with hair and debris.
When the Universal Wheel cannot rotate even after cleaning it, please stop any further use of the device and immediately contact customer service for help.

Troubleshooting

Wi-Fi Connection

Before Wi-Fi setup, make sure Robot, mobile phone, and Wi-Fi network meet the following requirements.

Robot and Mobile Phone Requirements

• Robot is fully charged and the power switch of Robot is turned on.
• Wi-Fi status light slowly flashes.
• Turn off mobile phone's cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

Product Specifications

Model	DVX46
Rated Input	20V 2A
Battery	RC02-LI-1440-5200
Nominal Voltage	14.4V
Watt Hour	69.12Wh
Self-cleaning Station Model	CH2028
Rated Input	100-240V~ 50-60Hz 70W
Rated Output	20V 2A
Frequency bands	2400-2483.5MHz
Networked Standby Power	Less than 2.00W

Output power of the Wi-Fi module is less than 100mW.
Output power of the 2.4G module is less than 10mW.
Note: Technical and design specifications may be changed for continuous product improvement.
