UniPix ATMOS Operation Manual

Pipette accuracy tester
Hide thumbs Also See for ATMOS:

Advertisement

Quick Links

ATMOS
Pipette Accuracy Tester
Operation Manual
www.unipix-atmos.com
sales@unipix-atmos.com
ATMOS Operation Manual
page 1/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATMOS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for UniPix ATMOS

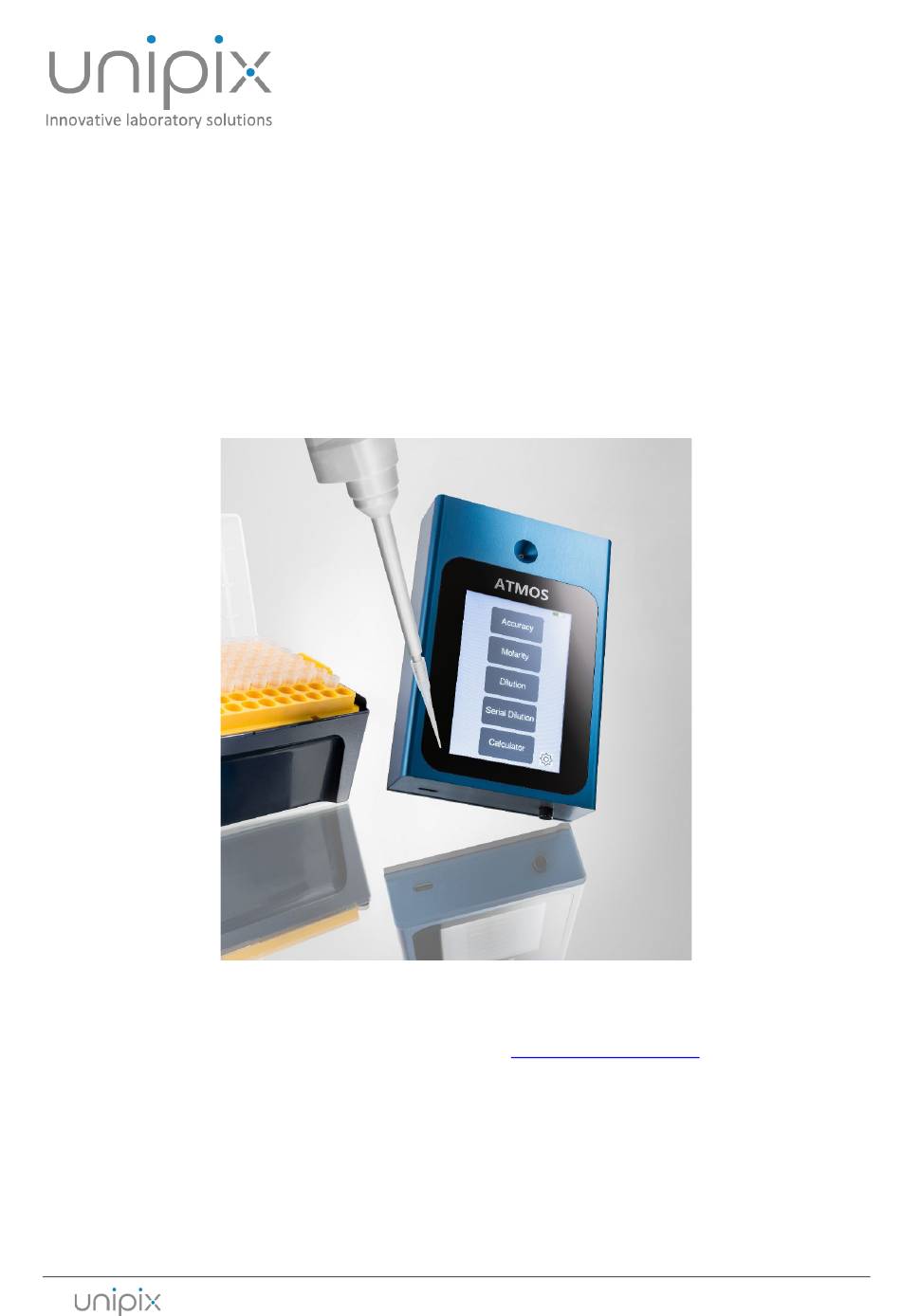

  • Page 1 ATMOS Pipette Accuracy Tester Operation Manual www.unipix-atmos.com sales@unipix-atmos.com ATMOS Operation Manual page 1/24...
  • Page 2: Imprint

    Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted without the express written permission of UniPix GmbH. While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for errors or missions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it.
  • Page 3: Table Of Contents

    Imprint .................................. 2 Contents ................................3 General Information ............................. 5 About ATMOS ..............................5 Using ATMOS ................................ 6 Turning on ATMOS ............................6 ATMOS Functions ..............................7 Accuracy Function ............................7 Pipette Size Selection Screen ........................7 Measurement screen ........................... 7 Measurement Procedure ..........................
  • Page 4 Disclaimer The Pipette Accuracy Tester ATMOS is designed for the specific use of testing and calibrating air displacement • laboratory pipettes and no other use is recommended. • The user must read and understand this manual before operation. • This instrument should only be used in a laboratory environment.
  • Page 5: General Information

    General Information About ATMOS The UniPix ATMOS Pipette Accuracy Tester is an instrument for precise measurement of air displacement pipettes, without need of liquid. It is based on comparison with a calibrated internal reference cavity in the instrument. It also measures the leak rate of pipettes.
  • Page 6: Using Atmos

    Using ATMOS Turning on ATMOS Press the main switch on the front of the instrument to power on. • After powering on, the instrument runs a self-test procedure for about 10 seconds. • The home screen then shows all available functions: •...
  • Page 7: Atmos Functions

    ATMOS Functions The ATMOS device offers various functions for daily laboratory work. Apart from the pipette accuracy measurement, it can also support the user with molarity/dilution/serial dilution calculations and offers a standard calculator. All functions are described below. Accuracy Function The accuracy function will measure the accuracy of your pipette.
  • Page 8: Measurement Procedure

    1. Insert the pipette tip firmly in the center port. Hold the pipette vertically and steady. NO LIQUID IN THE PIPETTE TIP! (liquid will permanently damage the instrument) 2. Press the Start button, without moving the pipette. ATMOS Operation Manual page 8/24...
  • Page 9 4. The progress bar at the bottom indicates that the instrument is measuring. The pipette and the piston should be kept steady when the progress bar is RED. 5. Release the piston, when the progress bar is GREEN. ATMOS Operation Manual page 9/24...
  • Page 10: Results Screen

    RESULT: Measured volume displacement of each measurement. Leak rate: Expressed in volume loss per second. A leak above 0.5%/sec of test volume indicates a leaky pipette, or leaky tip connection (or a bad insertion of the tip into ATMOS port). The following actions are possible: SKIP: This will remove the current measurement.
  • Page 11: Statistics Screen

    Average volume of the series of n measurements and standard deviation (STDEV) of the measurement • series The New measurements button will go back to the main screen and you can start a new series of measurements or select another function of ATMOS (molarity, dilution, serial dilution or calculator). ATMOS Operation Manual page 11/24...
  • Page 12: Molarity Function

    “R” on the lower left side of the screen. Measurement unit of any of the values can be adjusted by clicking on the respective unit (e.g. click on “mL” to change to “µL”). ATMOS Operation Manual page 12/24...
  • Page 13: Dilution Function

    The button “AC” will reset all values. The button “<<” returns to main screen. You can change the measurement unit of all 4 values by clicking on the unit (e.g. click on “mL” to change to “µL”). ATMOS Operation Manual page 13/24...
  • Page 14: Serial Dilution Function

    A number keyboard will show up and you can overwrite the default values. The button “AC” will reset all values. You can change the measurement units by clicking on the unit (e.g. click on “mL” to change to “µL”). ATMOS Operation Manual page 14/24...
  • Page 15: Calculator Function

    A standard numbers keyboard shows up and you can calculate: /  Divide X  Multiply -  Subtract +  Add =  Result The button “AC” resets all values. The button “<<” returns to the main screen. ATMOS Operation Manual page 15/24...
  • Page 16: Settings Screen

    To change the time, click on the button “Time”. You will be asked to type in the time in the following order: 1. Hour 2. Minute Please note: ATMOS runs on 24h. Each value has to be entered with 2 digits (hh mm). There is no need to confirm the values. Typing the second digit will automatically confirm your input. Info Clicking on the button “Info”...
  • Page 17 T1: temperature on sensor 1 T2: temperature on sendor 2 The values of P and Pref should be similar. Now insert a tip and press the piston to the first stop. The measured pressure will increase. ATMOS Operation Manual page 17/24...
  • Page 18 If the values differ, please run the test again, maybe with a different pipette. If the test is still unsuccessful, please contact UniPix or your local sales person. ATMOS Operation Manual...
  • Page 19: Readatmos" Program

    !! Make sure to download the correct version corresponding to the firmware of your device!! The firmware version is shown on the starting screen in the lower left corner when the ATMOS device is switched on. It can also be found under “Info” (Gear symbol on the main screen, then “Info”).
  • Page 20: All Other Firmware Versions

    All other firmware versions Verify that your ATMOS device is connected to the computer and turned on. Then start “ReadATMOS” on your computer. The following window appears. First click the button “update ports” to identify the port connected to ATMOS.
  • Page 21 A new window will show up and you will be asked for a name and location for your Excel file. Please select the storage location and enter a file name. Then click “Save”. After pushing the “Save”. button, the “ReadATMOS”. program will download data from ATMOS. The blue bar shows the progress.
  • Page 22: Atmos Technical Specifications

    ±0.15µl P=20 20 µl ±0.18 µl ±0.05µl P=10 10µl ±0.14 µl ±0.06µl Figure: Atmos accuracy in function of tested volume displacement Technical Specifications Dimensions 12.5 x 8.5 x 3 cm Weight 420 g Power supply 5V DC, 2A Battery 2000 mAh, Lithium-Polymer Operational temp.
  • Page 23: Troubleshooting

    Clean(no liquid!) or contact your sales person. Very bad pipette Verify tip, and try another pipette. Software shows Device is no connected or Connect ATMOS via USB cable and turn it on. error message when turned on Then start the software again. starting...
  • Page 24: Further Information

    UniPix shall not be liable for damage resulting from any actions other than those described in the operating manual or following the use of non-original replacement parts.
