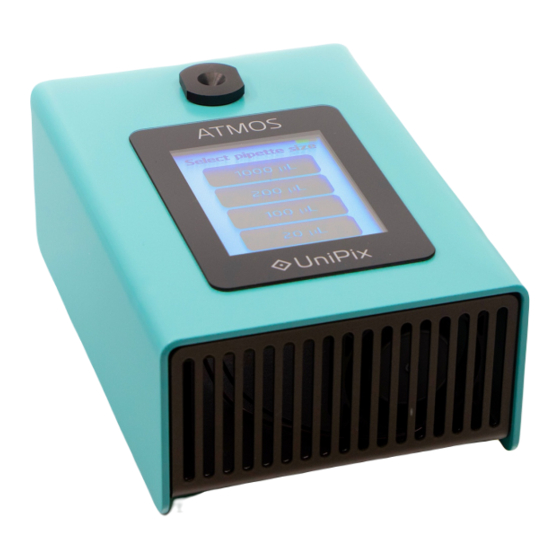

- Page 1 ATMOS Nano Pipette Accuracy Tester P1 – P20 Operation Manual Rev. 1.01 Designed in Switzerland Assembled in Switzerland UniPix, Switzerland Web: www.unipix-lab.com Email: info@unipix-lab.com UniPix Atmos ATMOS Nano Operation manual Rev. 1.01 page 1/1...
- Page 2 It is recommended to verify that the instrument battery is well charged or use the instrument Function with the external power supply connected via the USB cable. The UniPix Atmos Pipette Accuracy Tester is an instrument for precise measurement air The instrument is powered by an internal Li-ion displacement pipette, without need of liquid. It is...
- Page 3 GO arrow, without moving the pipette. Notes: • Only use new and clean tips • Never use tips that contains a liquid. Notes: • Don't move the pipette piston • Keep the pipette in stable position during • It is possible to run the test without entering the testing a volume. • If the instrument is used test volumes larger The arrow "ID" at the bottom right of the screen than 20 µl, the measurement accuracy is not allows to enter date and pipette ID for USB transfer valid. of calibration data (see "interfacing" section). UniPix Atmos ATMOS Nano Operation manual Rev. 1.01 page 3/6...
- Page 4 The pipette and the piston should not move during the measurement. The measurement time is typically five seconds. 2: Release phase: Continue On the display of this new screen, release the piston, but don’t remove the tip. The reasons for bad reading can be: Release • Bad insertion of the tip into the port • User not following instructions during the calibration process • A totally nonfunctional pipette • A very leaky pipette or tip connection UniPix Atmos ATMOS Nano Operation manual Rev. 1.01 page 4/6...
- Page 5 Systematic error Random error (a) (b) P10 ± 0.12 µl ±0 08 µl ± 0.125 µl ± 0.075 µl ± 0.08 µl ± 0.04 µl ± 0.05 µl ± 0.05 µl (a) Expressed as the deviation of the mean of a tenfold measurement from selected volume (b) Expressed as the coefficient of variation of a tenfold measurement UniPix Atmos ATMOS Nano Operation manual Rev. 1.01 page 5/6...
- Page 6 Help command: this will send the list of all damage, the join can be replaced by the user. Please available commands carefully follow these instructions: • Before changing the joint, order the The second set of commands is for remote original replacement part from UniPix web controlling Atmos for operation in a robotic site platform : • Unscrew the port • Remove the elastomer joint which is inside After receiving this command, Atmos will •...
- Page 7 2 µl ±0.04µl Very bad Try another 1 µl ±0.05µl pipette pipette Warranty UniPix shall not be retained liable for any Technical specs consequences of improper handling, use, servicing, Dimensions 14.5 x 10 x 5.5 cm operating or unauthorized repairs of the instrument or the consequences of normal wear Weight 820 g and tear as well as the failure to follow the...
