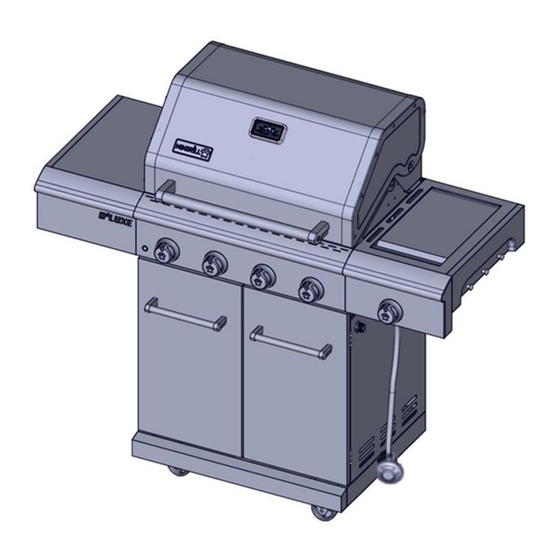

Summary of Contents for Nexgrill DELUXE 720-0958AE
Page 1
ITM./ART. 1900635 Outdoor Gas Grill Operating Instructions 15-30 Pages 戶外瓦斯烤爐操作說明 頁數 2 – 14 19000745A0 序列號____________________ 生產日期_____________________ 購買日期:_____________________ SERIAL # ____________________ MFG. DATE ______________________ PURCHASE DATE: ____________________ • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. •...
Table of Contents Safety Instruction ..... Troubleshooting..... . . Gas Hook–Up .
Page 3
WARNING CAUTION: Beware of Flashback Do not try lighting this appliance without reading the “LIGHTING INSTRUCTIONS” section of this manual. CAUTION: Spiders and small insects occasionally spin webs or make nests in the grill TESTED IN ACCORDANCE WITH ANSI Z21.58-2015 • burner tubes during transit and CSA 1.6-2015 STANDARD FOR OUTDOOR COOKING warehousing.
Page 4
• LP-Gas Supply System DO NOT use this appliance under overhead combustible surfaces. This outdoors cooking gas appliance is not • If the information is not followed intended to be installed in or on recreational vehicles 304.8 mm exactly, a fire resulting in death / 12 in.
Page 5
When using the grill, do not touch the grill rack, burner grate WARNING or immediate surroundings as these areas become Keep a spray bottle of soapy water near the gas supply extremely hot and could cause burns. Use only dry valve and check the connections before each use.
Gas Hook-Up L.P. TANK REQUIREMENT Make sure all burner valves are in their off position. Inspect valve connections, port, and regulator assembly. A dented or rusty L.P. tank may be hazardous and should be Look for any damage or debris. Remove any debris. checked by your L.P.
Leak Testing GENERAL ALWAYS CHECK FOR LEAKS AFTER EVERY L.P. TANK CHANGE Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas leak test check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly Check all gas supply fittings for leaks before each use.
Operating Instructions GENERAL USE OF THE GRILL NOTE: The hot grill sears the food, sealing in the juices. The more thoroughly the grill is preheated, the faster the meat Each main burner is rated at 12,000 BTU/hr. The main grill browns and the darker the grill marks.
Sear Burner Match Light Main Burner 1. If the burner will not light after several attempts then the burner can be match lit, before using the match allow 5 minutes for any accumulated gas to dissipate. 2. Clip a match on one end of the lighting rod. 3.
Care and Maintenance STAINLESS STEEL Warning: If you wish to replace main burner, we There are many different stainless steel cleaners available. strongly recommend that you hire a professionally Always use the mildest cleaning procedure first, scrubbing trained technician to replace it. Please understand that in the direction of the grain.
Troubleshooting SPIDER AND INSECT WARNING COOKING TEMPERATURES Checking and cleaning burner/ venturi tubes for insects and High setting-Use this setting for fast warm-up, for searing insect nests. A clogged tube can lead to a fire beneath the steaks and chops, and grilling. grill.
PROBLEM SOLUTION Grill only heats to 93-149°C / 200-300°F. Check to see if the fuel hose is bent or kinked. Make sure the grill area is clear of dust. Make sure the burner and orifices are clean. Check for spiders and insects. The regulator has a safety device that restricts the flow of gas in the event of a leak.
Grill Cooking Chart WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Slice. Dot with butter or margarine. Wrap in Vegetables heavy -duty foil. Grill, turning occasionally. Fresh Beets Grill, turning once. Brush occasionally with Carrots Medium 12 to 20 minutes melted butter or margarine.
Page 14
WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Grill, turning occasionally. 30 to 40 Ribs Medium During last few minutes brush with barbecue minutes sauce. Turn several times. Ham steaks 2.5 cm / 1 in. High 4 to 8 minutes Trim edges.
Grill Recipe Suggestion BBQ SALMON 1 20 oz. Can pineapple chunks in juice, 1/8 tsp. pepper drained half hour before cooking, turn 4 cups thinly sliced potatoes (4 medium- 2 large salmon steaks the burner to the grill on full. Drain sized potatoes) 2 tbs.
Page 16
FAJITAS EGGPLANT CAVIAR PORK ROAST 1-1/2 lb. flank steak or boned chicken 1 large eggplant Apple cider vinegar basting sauce: breasts 2 tbs. olive oil 1 c. apple cider vinegar 2 tbs. oil 2 tbs. wine vinegar 6 oz. water 2 tbs.
The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and/or freight pre-paid by the consumer, for review and examination. Nexgrill’s obligation is limited to repair, replacement, or depreciated value, at the option of Nexgrill.
Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Main lid Sear burner Main lid screw Sear burner igniter wire Temperature gauge Housing Sear burner igniter wire Temperature gauge Sear burner lid hinge rod Logo Sear burner lid hinge rod pin Main lid handle Sear side burner bowl assembly Hood buffer A...
Page 33
Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Pulse igniter wire 6mm Nut Driver Sold Separately NG conversion kit (Only applicable in Sold Separately as set NG orifice pack North America) NG gas hose with quick connector Main burner NG orifice assembly NG regulator assembly Sear burner NG orifice...
Page 36
Distributed by: Imported by / Importé par : Importado por: Costco Wholesale Corporation Costco Wholesale Canada Ltd.* Importadora Primex S.A. de C.V. P.O. Box 34535 415 W. Hunt Club Road Blvd. Magnocentro No. 4 Seattle, WA 98124-1535 Ottawa, Ontario San Fernando La Herradura K2E 1C5, Canada Huixquilucan, Estado de México 1-800-774-2678...
