Summary of Contents for DAPAudio DS-860D

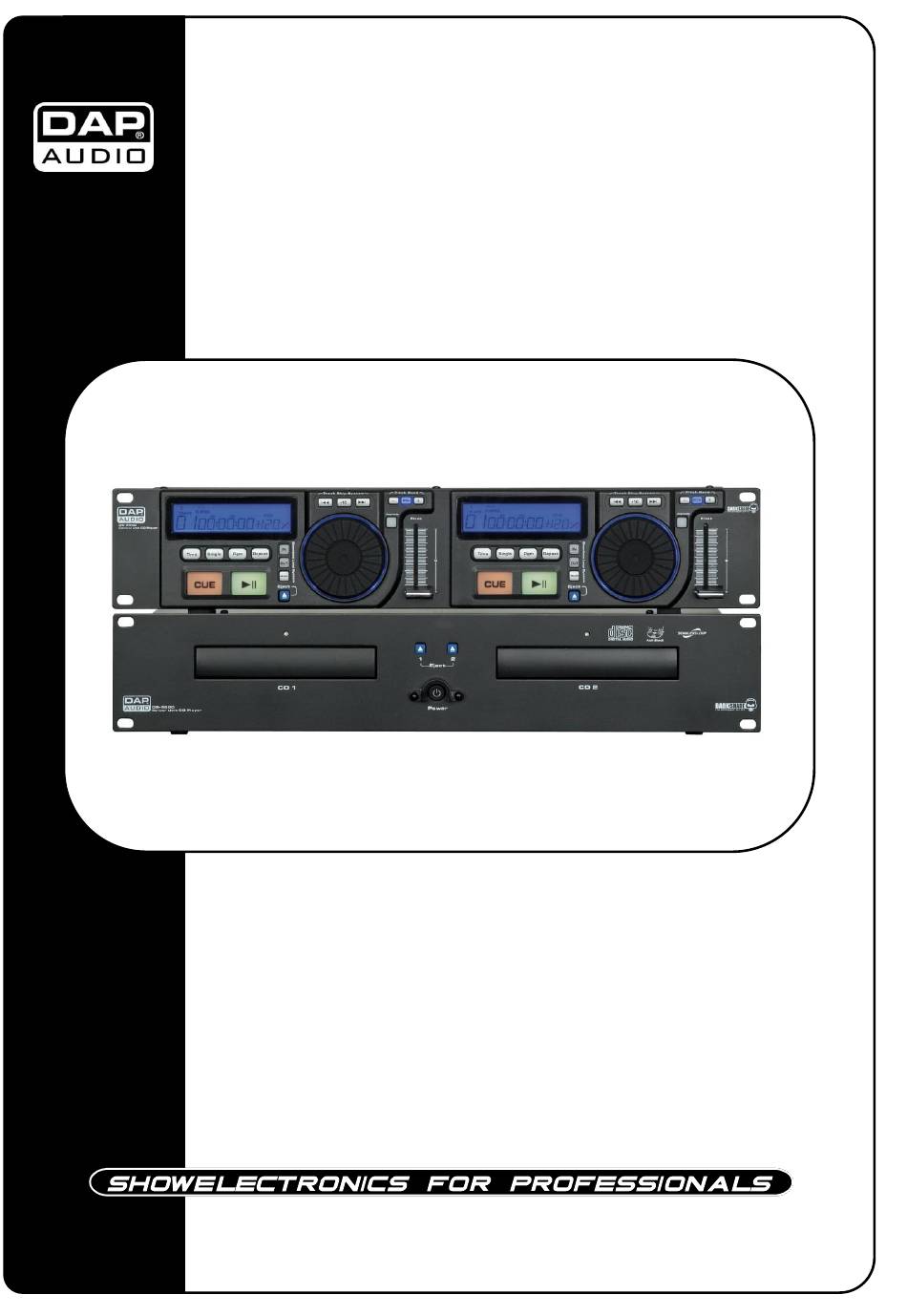

- Page 1 DS-860D ORDERCODE D1180...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DS-860D brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio DS-860D™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................ Return Procedure..............................Claims..................................Description..................................Overview................................. Frontview................................. Rearview................................. Installation..................................Set Up and Operation..............................Functions..................................Operations................................... Opening and closing of the disc holder......................Loading CD’s................................. Selecting Tracks..............................Starting Playback.............................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DS-860D • 1x control cable - 1m • 2x RCA stereo cable - 1,5m •... -
Page 5: Operating Determinations
Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features DS-860D is a professional Twin CD Player from DAP Audio. • Anti-shock memory • Program mode (20 tracks) • Continuous and Single play mode • Large jog wheel • Auto cue • Seamless loop Overview... -
Page 8: Frontview
Frontview Fig. 2 1) LCD Display 13) Repeat 2) Loop Out 14) Cue 3) Loop In 15) Play/ Pause 4) B.Skip 16) Open/ Close 5) + 10 (Track+10 Button) 17) Reloop 6) F.Skip 18) Jog + Shuttle Wheel 7) Pitch – Button 19) Jog Mode 8) Pitch Button 20) Pitch Fader... -
Page 9: Rearview
Rearview Fig. 3 25) Controller- Main Unit Connector. Use the supplied control cables only. Using other cables will result in damage. 26) Main Unit- Controller Connector. Use the supplied control cables only. Using other cables will result in damage. 27) Line Out 28) 115V/230V Switch 29) AC Power Cord... -
Page 10: Installation
Installation Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed.. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 11: Functions
Functions NAMES AND FUNCTIONS Below is a description of the functions of the controls. CD-player Functions 1. LCD Display 2. Loop IN: Press this button to set the startpoint of the loop. 3. Loop OUT: Press this button to set the endpoint of the loop. 4. -
Page 12: Operations
22. Power ON/OFF This is the main Power switch. Press to turn the device on. 24. Load LED If there is no disc in the disc holder, the LED is lit. While loading the buffer, the LED blinks and when the CD player is ready for playback, the LED dims. -
Page 13: Stop Playback
5. Stop Playback There are two ways to stop playback: 1. Press the Play/Pause button during playback to pause at that point. 2. Press the Cue button during playback to return to the cue point and enter pause condition. Fig. 7 6. -
Page 14: Scanning (Fast Forward/Fast Backward)
10. Scanning (Fast forward/Fast backward) • Scanning is a function for moving quickly forward or backward while rotating the Shuttle Wheel. • Turn the Shuttle Wheel to begin scanning. The disc moves rapidly forward or backward and the sound is audible. The current scan point is indicated on the LCD. •... -
Page 15: Reloop
15. Reloop 1. If you press the Reloop button, the disc will go back to the last selected loop. 2. Press the button over and over rapidly to start the loop again and again. 3. Press one of the Loop buttons again, the loop play function is canceled, the Loop indicator dimms. -
Page 16: Maintenance
Maintenance DAP Audio-CD-Player DS-860D requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 17: Product Specifications
Product Specification Power Supply: AC 110/230 Volt – 50/60 Hz Power consumption: 25W Frequency response: 20 Hz – 20 kHz Signal/noise ratio: 96 dB Pitch control: +/- 12% Time display: Remain, total remain, elapsed Sampling frequency: 44,1 kHz DA converter: 24 Bit Harmonic distortion: 0,003% Dimensions main unit: 19"... - Page 18 2009 Dap Audio.
