DAPAudio 800-D MKII Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
800-D MKII
ORDERCODE D1111

Advertisement

Table of Contents
loading

Related Manuals for DAPAudio 800-D MKII

Summary of Contents for DAPAudio 800-D MKII

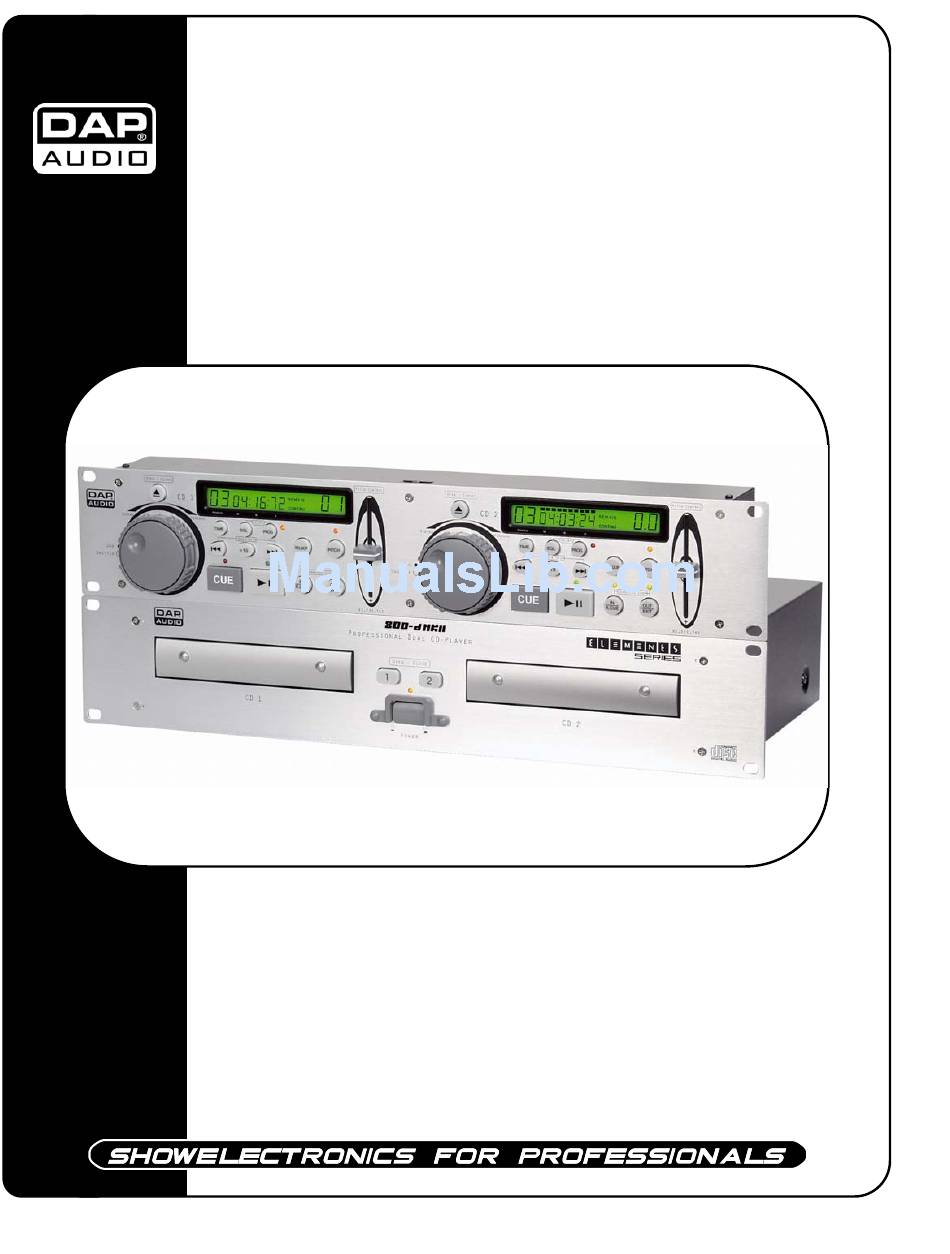

  • Page 1 800-D MKII ORDERCODE D1111...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio 800-D MKII brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.

  • Page 3: Table Of Contents

    Dap Audio Dap Audio 800-D MKII Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations…………………………………………………………………………………….. Description..…................……….…………………………………. Overview Main Unit ………………………...…………….........………...……... Overview Control Unit ……………………...……………..............… LCD………..………………………………...…………………………………..……......Installation............……..……………………………….……………………….. Set Up and Operation..............……..…………………………….…… Functions….............……..…............……..………... Operations............……..…..........……..……………. Opening and closing of the disc holder…………......……….………………………………. Loading CD’s....……….………………………….....……….…………………………. Selecting Tracks….....……….………………………….....……….…………………..

  • Page 4: Warning

    WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 5: Operating Determinations

    Please turn off the power switch, when changing the power cord or signal cable, or select the input • mode switch. Extreme frequency boosts in connection with a high input signal level may lead to overdriving your • equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT control.

  • Page 6: Description

    Description of the device Features 800-D MKII is a CD-Player from DAP Audio. • 8 times oversampling, 1 bit D/A converter • Single/Continuous • Auto-Cue • Relay play allows consecutive playback during 2 decks • Taktabstand Pitch-Display • Frame-search • + 10 Tracks Skip Search •...

  • Page 7: Overview Control Unit

    Overview Control Unit Frontside Backside (1) SHUTTLE (Shuttle dial) (14) CUE (Cue Button) (2) OPEN/CLOSE (Open/Close Button) (15) +10 (Track+10 Button) (3) TIME (Time Button) (16) PLAY Indicator (4) LCD (Liquid Crystal Display) (17) PLAY/PAUSE (5) SGL (Single Button) (18) F.SKIP (6) PROGRAM (Program Button) (19) LOOP (Loop Button) (7) Program Indicator...

  • Page 8: Installation

    Installation 800-D MKII Installation Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed. Screw the CD player in a 19“ Rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 9: Functions

    Functions NAMES UND FUNCTIONS Below is a description of the functions of the controls. Main Unit 1) POWER (Power ON/OFF-Switch): When the POWER-switch is pressed the POWER turns on. 2) Disc Holder: Place the disc in the holder. Press the OPEN/CLOSE-button to open and close the disc holder.
  • Page 10 original BPM. 21) PITCH + button: The CD speeds up while this button is pressed. Release the button to return to the original BPM. 22) PITCH (Pitch-button): Use the button to enable or disable BPM adjustment with the pitch slider. BPM adjustment with the pitch slider is enabled when the PITCH LED lights.

  • Page 11: Operations

    Operations 1. Opening and closing of the disc holder • Turn the unit’s power on. Press the OPEN/CLOSE-button to open the disc holder. • The disc holder cannot be opened during playback, to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally.

  • Page 12: Stopping Playback

    5. Stopping Playback There are two ways to stop playback: 1). Press the PLAY/PAUSE button during playback to pause at that point. 2). Press the CUE button during playback to return to the cue point and enter pause condition. (Back Cue) Fig.

  • Page 13: Cueing

    7. Cueing • "Cueing" is the action of preparing for playback. • Press CUE button, the player will enter CUE-Mode, the playback returns to cue point and enter pause condition, the CUE indicator lights up and the PLAY indicator flashes. When PLAY/PAUSE button is pressed, play starts from the cue point.

  • Page 14: Scanning (Fast Forward/Fast Backward)

    9. Scanning (Fast forward/Fast backward) • Scanning is a function for moving quickly forward or backward when the SHUTTLE is rotated. • This unit supports 4 different speeds according to the rotating angle of the SHUTTLE. • Turn the shuttle dial to begin scanning. The disc moves rapidly forward or backward and the sound is output.

  • Page 15: Program Play

    • 3) Turn the JOG dial • Turn the jog dial clockwise during play to increase the BPM in the forward direction, counterclockwise to decrease the BPM in the reverse direction. The faster you turn the wheel, the more BPM changes. The BPM changes with a range of+/-16%.

  • Page 16: Before Switching Off The Power

    Before switching off the power When you have finished using the CD player, before switching off the power, be sure that the disc holder has been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off. Do not switch off the power, Switch off the power after the disc holder has when the disc holder is open.

  • Page 17: Maintenance

    Maintenance DAP Audio-CD-Player 800-D MKII requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.

  • Page 18: Product Specifications

    Product Specification Model: Dap Audio 800-D MKII Power: 230V-50Hz (CE) Powerconsumption: 25W Dimensions Main Unit: 482x262x88,8 mm (LxWxH) Control Unit: 482x97x88,8 mm (LxWxH) Weight Main Unit: 5 kg Control Unit: 2 kg Design and product specifications are subject to change without prior notice.
  • Page 19 2004 Dap Audio.
