Summary of Contents for DAPAudio CORE CDMP-750

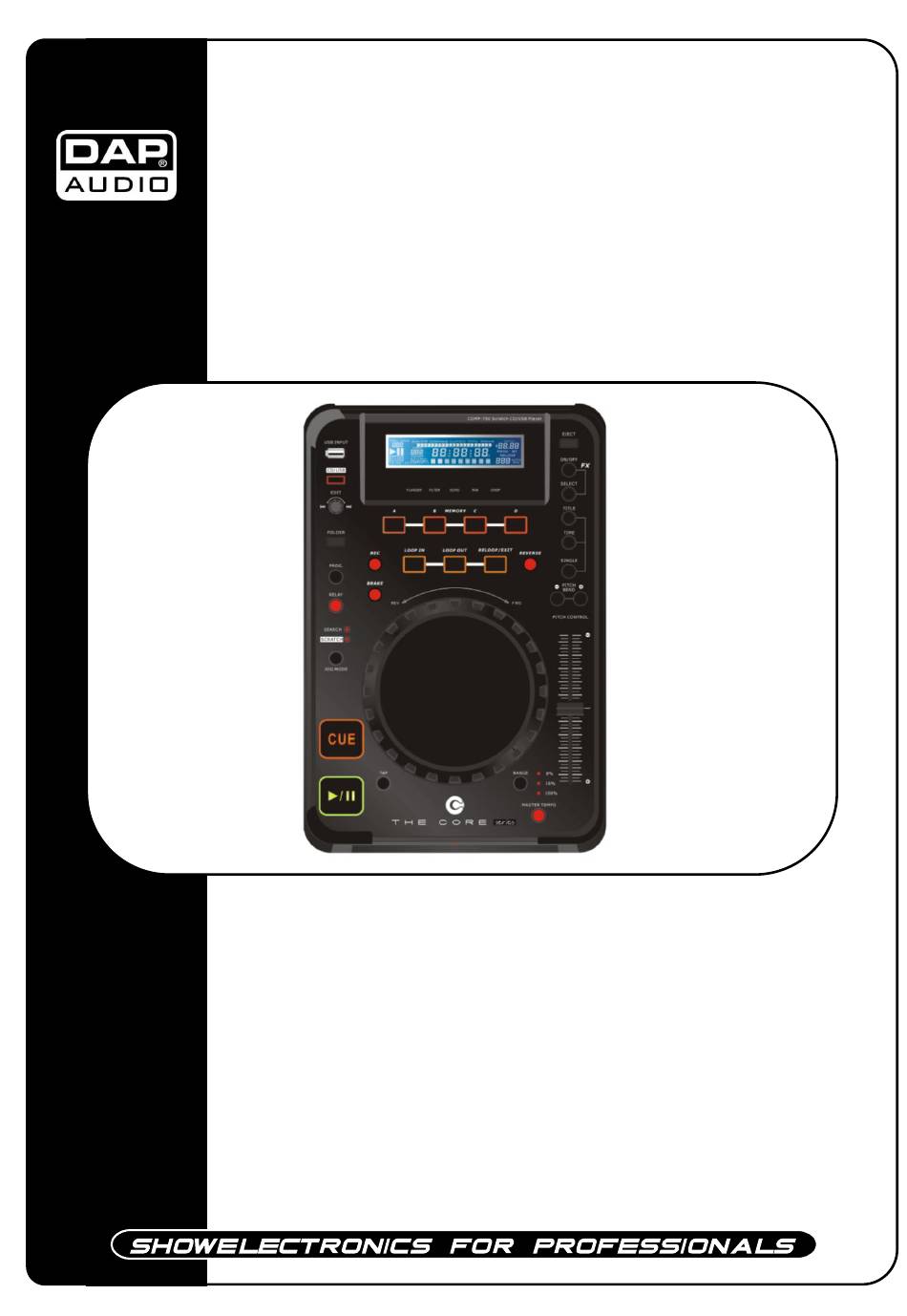

- Page 1 CDMP-750 ORDERCODE D1155 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio CDMP-750 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Dap Audio Dap Audio CDMP-750™ Product Guide Warning ..................................2 Unpacking Instructions ............................2 Safety-instructions ..............................2 Operating determinations .............................3 Return Procedure ..............................4 Claims ..................................4 Description ..................................5 Overview ...................................5 Top .....................................6 Front ...................................7 Back ...................................7 Installation ..................................7 Set Up and operation ..............................7 Functions ..................................8 Operations .................................. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Operating Determinations
Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. Only use system indoor, avoid contact with water or other liquids. ... -
Page 6: Claims
Claims The client has the obligation to check the delivered goods immediately upon delivery for any short- comings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise. -
Page 7: Description
Description of the device Features CDMP-750 is a professional DJ CD/MP3 Player from DAP Audio. • LCD display with blue backlight • Pitch control +/- 8/16/100% • Electronic anti shock buffer (15 seconds) • Seamless loop function • Beat related auto loop function •... -
Page 8: Top
Fig. 1 1) USB port 20) Memory C button 2) CD/ USB button 21) Reloop/ Exit 3) Edit encoder 22) Memory D button 4) Folder button 23) Reverse button 5) Prog. button 24) Eject button 6) Relay button 25) FX on/off button 7) Search LED 26) FX select button 8) Scratch LED... -
Page 9: Front
Front Back Fig. 2 39) Disc Slot 40) Digital out 41) Line out L/R 42) Remote jack 43) Relay jack 44) Power switch 45) AC Power Installation Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed. Connect all cables. -
Page 10: Functions
Functions NAMES AND FUNCTIONS Below is a description of the functions of the controls. 1. USB port Use this port to connect a USB stick or an external hard disk. The USB port is only active when you’re in USB mode. Note: The CDMP-750 can handle a maximum of 2 Tbyte, 999 folders and 999 files. - Page 11 15. LCD Display Fig. 3 TOTAL TRACK: Shows the current track number or the folder number while selecting folders. : Indicates that the unit is in playback mode : Indicates that the unit is in pause mode CUE: indicates that a cue point has been memorized. CD: Indicates that the unit is in CD mode.
- Page 12 26. FX Select button Pushing this button allows you to select one of the five effects as shown below. Fig. 4 27. Title button Pushing this button allows you to select one of the four display modes (MP-3 only) as shown below. Fig.
-
Page 13: Operations
42. Remote jack Use a 3,5mm mono jack cable to connect this input to a fader start output on a mixer for remote control of the play/pause (13) button. 43. Relay jack Use a 3,5mm mono jack cable to connect the relay jacks of two CDMP-750’s to enable relay play. 44. -
Page 14: Stop Playback
Stop playback There are two ways to stop playback: • Press the play/ pause (13) button during playback mode to pause at that point. • Push the cue (11) button during playback to return to the cue point and enter pause mode. Fig. -
Page 15: Scanning (Fast Forward/Fast Backward)
Scanning (fast forward/fast backwards) Scanning is a function for moving quickly forward or backward while dialing the jogwheel (10). 1. Push the jogmode (9) button until the unit enters search mode. The search (7) LED will light up. 2. Dial the jogwheel (10) to start scanning. The disc moves rapidly forward or backward and the sound is audible. -
Page 16: Loop Play
Loop play 1. Push the loop in (17) button to set the loop start point, The loop in (17) button will light up, indicating that the start point is memorized. 2. Push the loop out (19) button to set the loop end point. The loop out (19) button will light up. After the end point is set;... -
Page 17: Before Switching Off The Power
Before switching off the power CAUTION: Do not force the disc in when the power is switched off. Do not switch off the power, when the disc is ejecting. Switch off the power after the disc has been ejected. CD’s 1. -
Page 18: Product Specifications
Product Specification Quantization 1 bit linear/Channel, 3 Beam Laser Oversampling rate 8 Times Sampling Frequency 44.1 kHz Frequency response 20 Hz to 20 kHz ±2db T.H.D. + NOISE Less Than 0.03% S/N ratio (IHF-A) > 75 dB Dynamic range > 75 dB Output level 1.0 Volts R.M.S. - Page 19 2011 Dap Audio.
