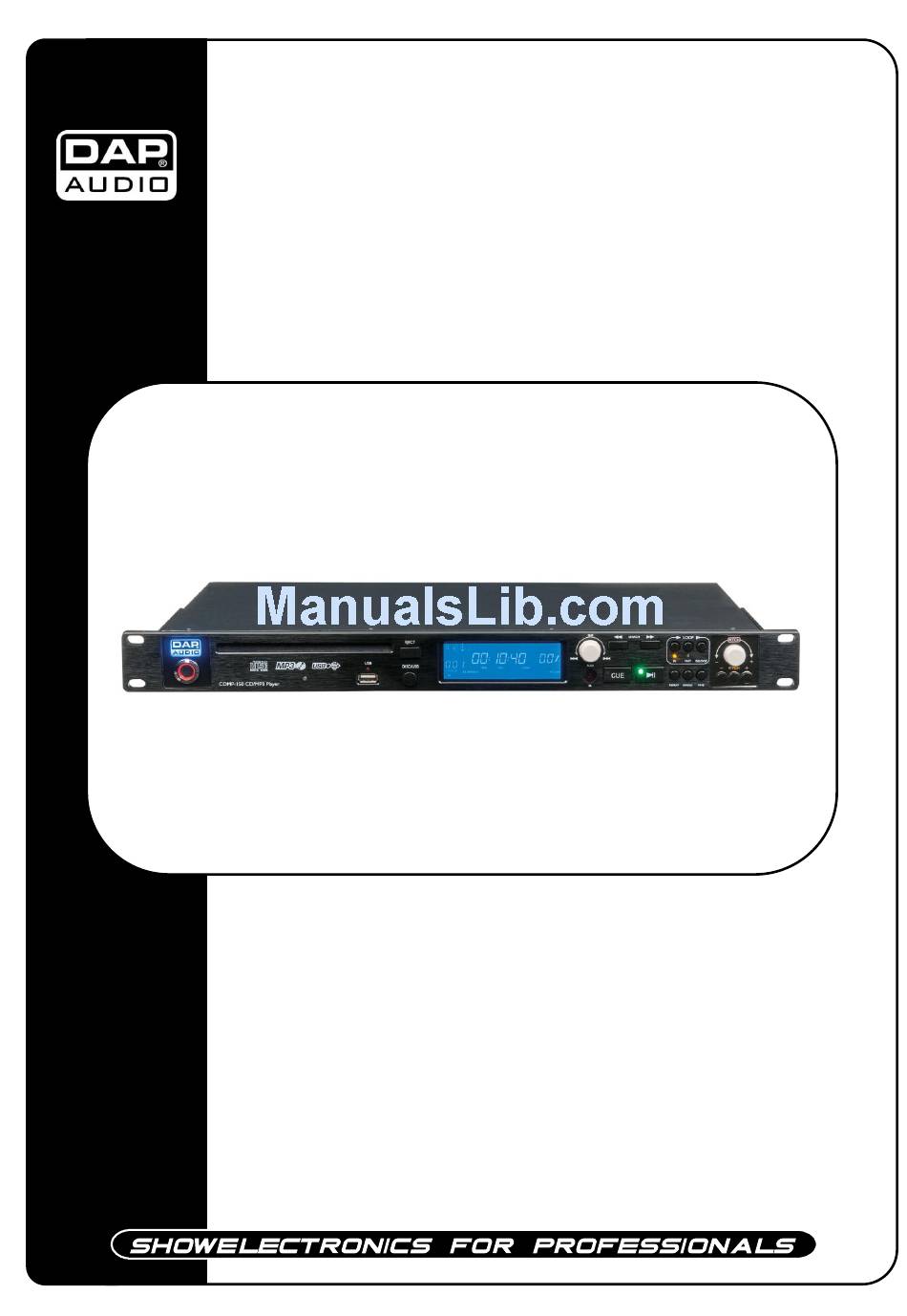

- Page 1 CDMP-150 ORDERCODE D1152 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio CDMP-150 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio CDMP-150 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Claims ..................................5 Description of the device ............................. 6 Overview ..................................6 Front .................................... 7 Installation .................................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP CDMP-150 • Stereo RCA cable 1,2m • Power cable 1,5m •... -
Page 5: Operating Determinations
Do not insert objects into air vents. Do not connect this device to a dimmerpack. Do not switch the device on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the... -
Page 7: Description Of The Device
Description of the device Features The CDMP-150 is a professional 1U CD/USB/MP3 player from DAP Audio. • LCD display with blue backlight • Pitch control +/- 16% • Electronic anti shock buffer (40 seconds) • Seamless loop function • Cue function •... -
Page 8: Front
Front Fig. 1 1. Power switch 13. USB jack 2. Disc slot 14. CD/USB button 3. Eject buton 15. IR sensor 4. LCD Display 16. Cue button 5. Track select encoder 17. Play/pause button 6. Rewind button 18. Repeat button 7. -
Page 9: Remote Control
Remote control Fig. 2 29. Cursor left button 43. PGM button 30. Cursor up button 44. Cursor down button 31. Cursor right button 45. S/C button 32. Power button 46. Folder button 33. Repeat button 47. Fast forward button 34. OK button Skip button 35. -
Page 10: Installation
Installation Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. - Page 11 Use this port to connect a USB stick or an external hard disk. The USB port is only active when you’re in USB mode. Note: The CDMP-150 recognizes FAT and NTFS format up to a maximum capacity of 16 Gb, 99 folders and 999 files.
- Page 12 29. Cursor left button Not functional in combination with the CDMP-150. 30. Cursor up button Not functional in combination with the CDMP-150.
-
Page 13: Operations
12:1. An MP3 disc can record music for playback over 600 minutes or record over 170 songs in a sound quality that fully matches the sound quality of CD’s. An USB stick can record even more. Obviously the CDMP-150 works also with normal audio CD’s. Starting playback •... -
Page 14: Scanning Fast Forward
Scanning Fast forward • Forward Scanning is a function for moving quickly forwards while being in playback mode. • While pressing and holding the search (7/47) button for more than 1 second, the disc moves rapidly forward and the sound is audible. The current scan point is indicated on the LCD. Scanning Fast backwards •... -
Page 15: Loop Play
Loop play 1. Push the loop in (8/53) button to set the loop start point, the LED beneath the loop in (8/53) button will light up, indicating that the start point is memorized. 2. Push the loop out (9/54) button to set the loop end point. The LED beneath the button will light up also. As soon as the end point is set, the playback will start loop play from start point to end point repeatedly. -
Page 16: Maintenance
3. Areas that are affected by heat from indoor heaters, etc. Maintenance DAP Audio-CD-Player CDMP-150 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 17: Product Specification
Product Specification Pitch: Pitch bend: Loop: Seamless S/N ratio: 96 dB Freq response (-3dB): 20 – 20Khz Compatible disks: CD, CDR, CDRW, Audio & Data (MP3 files) USB files: MP3, max 99 folder, 999 files USB format: FAT, NTFS max 16Gb Anti-shock buffer: 40 Sec Remote batteries:... - Page 18 2013 Dap Audio.
