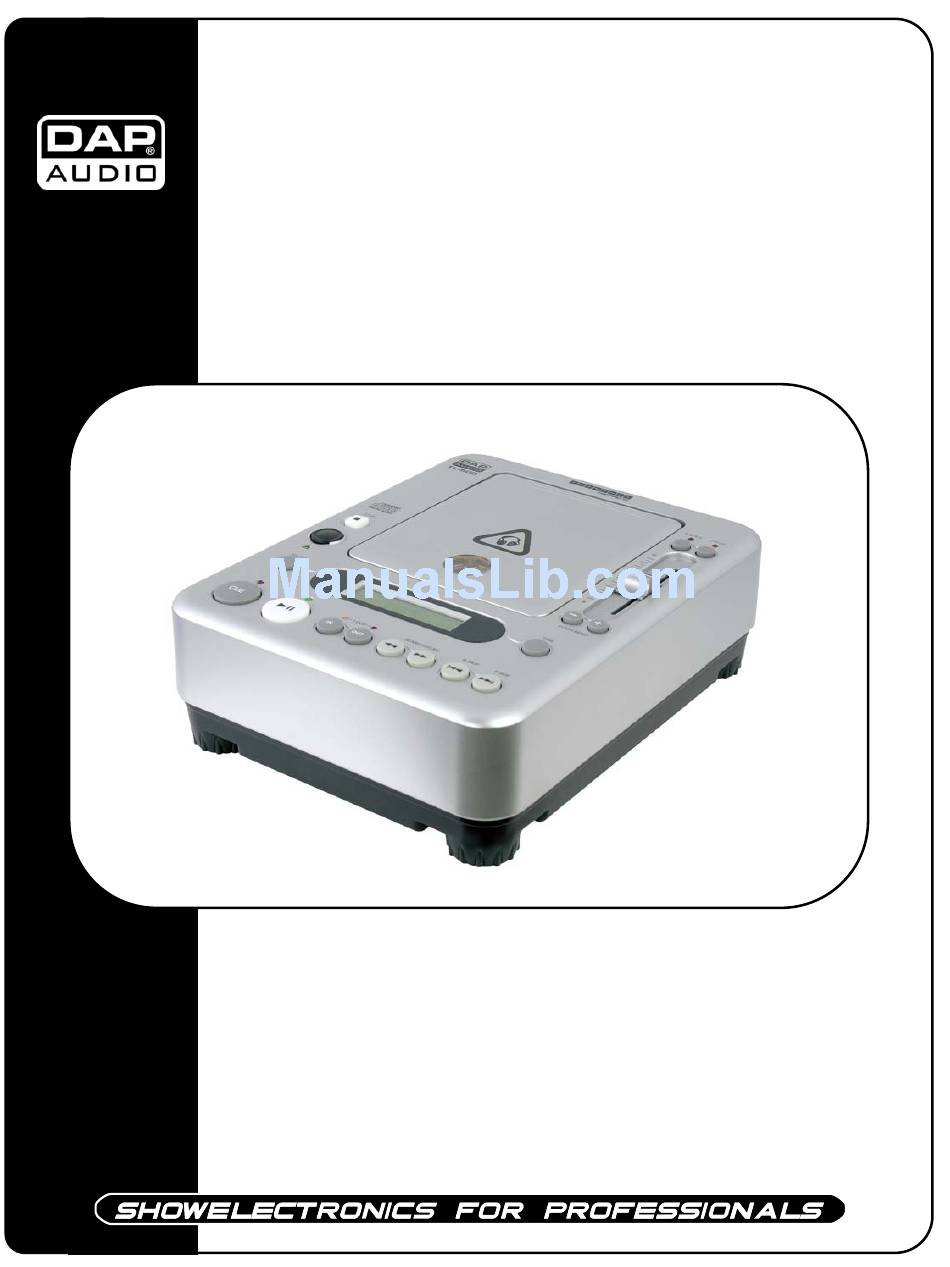

  • Page 1 TL-500 ORDERCODE D1130...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio TL-500 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.

  • Page 3: Table Of Contents

    Dap Audio Dap Audio TL-500 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations…………………………………………………………………………………….. Description..…................……….…………………………………. Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. LCD………..………………………………...…………………………………..……......Installation............……..……………………………….……………………….. Set Up and Operation..............……..…………………………….…… Operations............……..…..........……..……………. Opening and closing of the disc holder…………......……….………………………………. Loading CD’s....……….………………………….....……….…………………………. Selecting Tracks….....……….………………………….....……….………………….. Starting Playback..……….………………………….....……….……………………….……. Stopping Playback..……….………………………….....……….……………………….……..

  • Page 4: Warning

    WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 5: Operating Determinations

    Please turn off the power switch, when changing the power cord or signal cable, or select the input • mode switch. Extreme frequency boosts in connection with a high input signal level may lead to overdriving your • equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT control.

  • Page 6: Description

    Description of the device Features TL-500 is a CD-Player from DAP Audio. • Pitch Bend: +/-8%, +/-12%, +/-16% • Single/Continuous • Elapsed, remain and total remain time display • LCD screen • Digital Output • Search/Scan/Forward & Back Skip • Instant start within 10msec •...

  • Page 7: Backside

    (1) STOP: Stops the CD. (2) OPEN/CLOSE: Press it to open and close the disc holder. (3) LCD DISPLAY: Shows time (minutes, seconds, frame), and pitch information. (4) SGL/CTN: Switches between Single or Continuous play modes. (5) CUE INDICATOR: Red LED lights when cd player is in CUE Mode (6) CUE -Used to recall and preview the cue point.

  • Page 8: Lcd

    (24) AUDIO OUT L / R: This stereo line output connects to the line input on any DJ mixer. (25) DIGITAL OUTPUT: This coaxial (S/P DIF) digital output connects to any RCA S/P DIF input, as found on most standard computer sound cards, CD burners or any other recording device with a digital input. (26) FADER START: Connects to any DJ mixer equipped with a fader start input.

  • Page 9: Installation

    Installation TL-500 Installation Remove all packing materials from the CD Player. Check that all foam and plastic padding is removed.. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.

  • Page 10: Stopping Playback

    5. STOPPING PLAYBACK There are three ways to stop playback: 1). Press the PLAY/PAUSE button during playback to pause at that point. 2). Press the CUE button during playback to return to the cue point and enter pause condition. (Back Cue) 3).

  • Page 11: Pitch Bending

    12. PITCH BENDING The speed increases or decreases respectively while the PITCH BEND+ or PITCH BEND- button is pressed. The extent, to which the speed changes, is proportionate to the amount of time the button is pressed. For example, if the PITCH BEND+ button is pressed continuously, the speed increases continuously.

  • Page 12: Before Switching Off The Power

    Before switching off the power When you have finished using the CD player, before switching off the power, be sure that the disc holder has been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off. Do not switch off the power, when the disc holder is open.

  • Page 13: Maintenance

    Maintenance DAP Audio-CD-Player TL-500 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.

  • Page 14: Product Specifications

    Product Specification Model: Dap Audio TL-500 Power: 230V-50Hz (CE) Powerconsumption: 15W Playable Disc type: Standard 12cm and 8cm compact discs Pitch control range: +/-8%, +/-12%, +/-16% Pitch bend: +/-16% Pitch accuracy: +/- 0.1% Accessories: CA Cable (for left and right channels)
