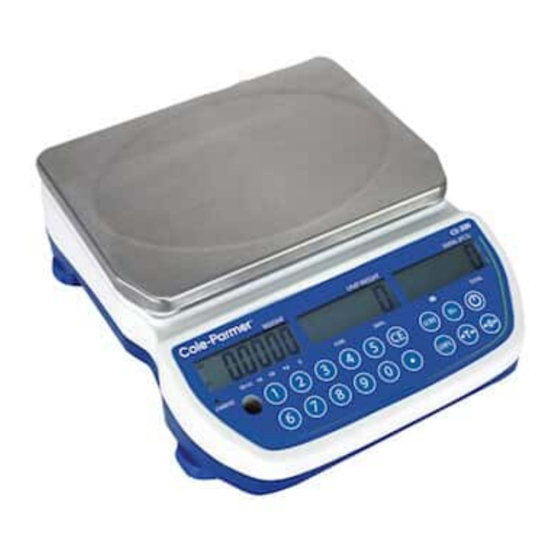

Cole Parmer CS-200 Manual

Counting scales
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS-200 Counting Scales

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Cole Parmer CS-200

Summary of Contents for Cole Parmer CS-200

  • Page 1 CS-200 Counting Scales...
  • Page 2   Easy Reference:      Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place:      ...
  • Page 3      ...

  • Page 4: Table Of Contents

          CONTENTS P.N. 3.02.6.6.15753, Revision A1, July 2022   INTRODUCTION ..................  2     SPECIFICATIONS ..................  3     SAFETY PRECAUTIONS  ................  3     SET UP ......................  4     ASSEMBLING OF SCALE ................  4     WEIGHING ....................  4    ...

  • Page 5: Introduction

            INTRODUCTION  The odels are supplied with a power supply adapter, to charge Symmetry CS Plus m the internal rechargeable battery.  Four models: 3kg x 0.1g 6kg x 0.2g 15kg x 0.5g 30kg x 1g  3 LCD displays with backlight ...

  • Page 6: Specifications

          2.0 SPECIFICATIONS   Model CS-200-3K CS-200-15K CS-200-6K CS-200-30K Capacity 15Kg 30Kg Readability 0.1g 0.2g 0.5g Repeatability 0.2g 0.4g Linearity ± 0.2g 0.4g Units kg / g / lb / oz / lb:oz Stabilization time 1 second 1 second...

  • Page 7: Set Up

        4.0 SET UP ASSEMBLING OF SCALE  Put the scale on a stable and even table.  Adjust the height of the feet to level the scale; the spirit level bubble should be in the center of the spirit level. ...

  • Page 8: User Parameters

        If a container is used, put the container on the pan and press the [Tare/↵] key when the reading is stable. The display will show “”, the zero symbol and ‘NET’. Load the container or remove material from the container, the scale will show the net weight of the material added or removed.

  • Page 9: Calibration

         Add another sample to the top pan and press the [M+] key; the memory entry will be incremented by 1, the middle display will show total weight of all samples counted in memory and the right display will show the total count of all samples in memory.

  • Page 10: Factory Parameter Setting

        FACTORY PARAMETER SETTING When power on, press TARE during self-checking, enter passcode 1946 to access factory parameter setting. AdCnt Shows the internal A/D counts CAPA Sets the capacity of the scale AUTO-Z Auto zero tracking range setting, default is 2d P-ZERO Set zero range automatically when power on, default is 10% K-ZERO...

  • Page 11: Error Message

        7.0 ERROR MESSAGE A/D counts are too high --AdO A/D counts are too low --AdL Wrong operation BEEP 15 - -OL- - Overload 9d Low battery indication and “BATTLO” Over zero key range -- Err -      ...
  • Page 12         WEEE 2012/19/EU         This device may not be disposed of in domestic waste. This also applies to countries outside the EU, per their  specific requirements. Disposal of batteries (if fitted) must conform to local laws and restrictions.  Cet appareil ne peut être éliminé avec les déchets ménagers. L’élimination de la batterie doit être effectuée  conformément aux lois et restrictions locales.  Dieses Gerät nicht mit dem Hausmüll entsorgt.  Dispositivo no puede ser desechado junto con los residuos domésticos  Dispositivo non può essere smaltito nei rifiuti domestici.            9      ...
