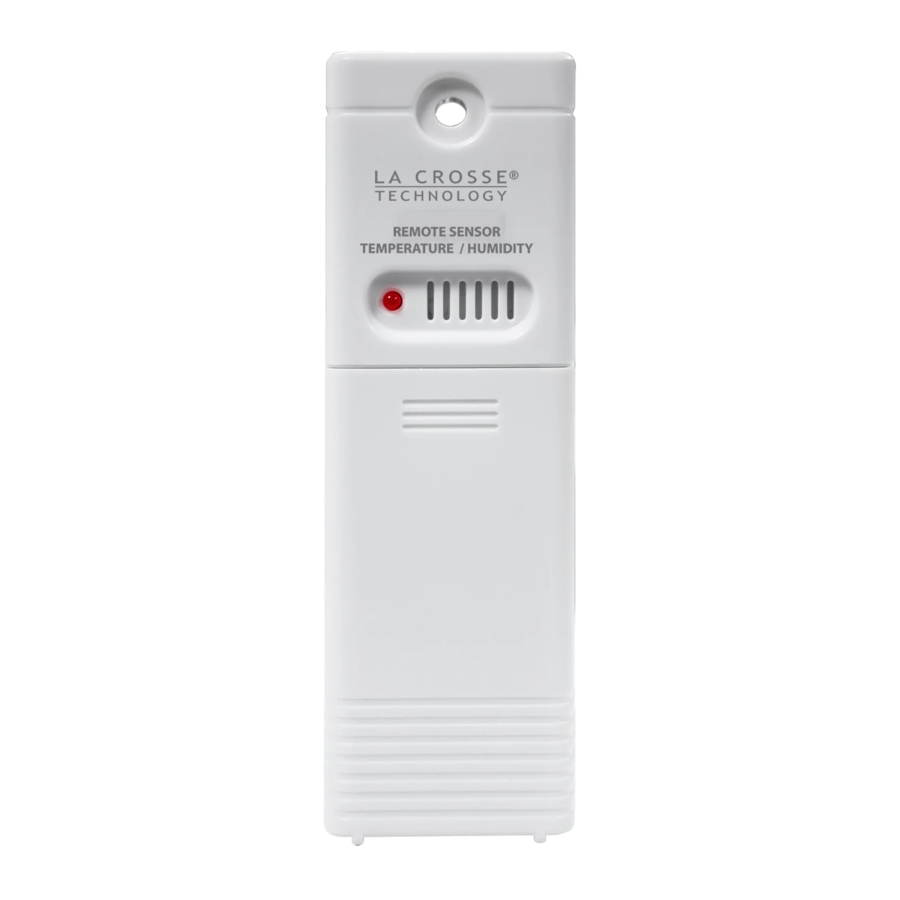

La Crosse Technology TX141TH-Bv3 - Thermo-Hygrometer Quick Start Guide

Power up

Insert 2-AA batteries into your Outdoor Sensor.

Power up as a Replacement Sensor

Refer to the owner's manual for your clock or weather station to see if you can Search for Sensor. If so, enable a search and press the TX button (transmission) on your sensor.
If there is no Search option, try this:

1. Bring your sensor inside next to the station and remove batteries from both devices.
2. Press any button at least 20 times, and then wait 15 minutes.
3. After the wait, install fresh batteries into both your sensor and station. Your outdoor temperature should return within the next few minutes.
4. Keep your sensor next to the station for another 15 minutes to establish a strong connection.
5. Once connection is reestablished, place sensor outside in a shaded location.

Position Sensor

Option 1:

• Install one mounting screw into a wall.
• Place the transmitter onto the screw.

Option 2:

• Insert the mounting screw through the front of the sensor and into the wall.
• Tighten the screw to snug (do not over tighten).
• Mount the temperature sensor on a north-facing wall or in any well shaded location. Sun will make it read high.
• Under an eave or deck rail is preferred.
• Be sure the outdoor sensor is mounted vertically to drain moisture.
• The maximum wireless transmission range to the weather station is over 330 feet (100 meters) in open air, not including walls or floors.
  Watch sensor mounting video: bit.ly/TH_SensorMounting

Specifications

Temperature range: -40°F to 140°F (-40°C to 60°C)
Humidity range: 10%-99% RH
Transmission range: Up to 330 feet
Transmission frequency: 433 MHz
Power requirements: 2 "AA" Alkaline batteries (not included)
Dimensions: 1.58" L x 0.83" W x 5.08" H

WARRANTY INFO

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
For Full Warranty Details, Visit: www.lacrossetechnology.com/support

CARE + MAINTENANCE

• Do not mix old and new batteries.
• Do not mix Alkaline, Lithium, standard, or rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for intended use.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries have with correct polarity (+ / -).
• Remove batteries from equipment that will not to be used for an extended period.
• Promptly remove expired batteries.
