La Crosse Technology Alerts TX60U-IT Quick Start Manual

La Crosse Alerts™

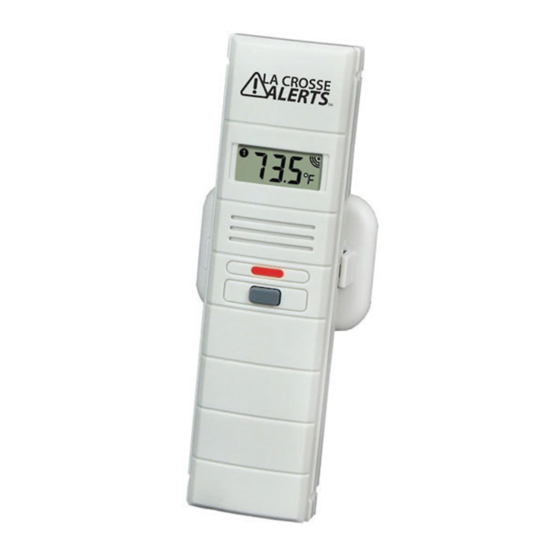

TX60U-IT with Threaded Wet Probe
TX60U-IT temperature and humidity sensor measures:
(A) Ambient air temperature and humidity (Channel 1)
(B) Probe temperature (Channel 2): **Use the optional 6 Ft. detachable
temperature probe to measure water (Wet probe only), soil, air, etc.
(A)
LCD
Button
(B)
**Optional external probe included in select packages
(Wet and Dry probes are also sold separately)
1/8 inch fine pipe
thread probe with
6 foot wire that can
plug into sensor.
This Stainless Steele 1/8 inch Fine Pipe Threaded Probe on a 6 foot wire allows
you to just set the probe in soil, water, etc. for measurement or secure the probe
wire with through a hole with the 1/8 inch Fine Pipe Thread, to prevent movement.
The sensor sends the temperature and humidity measurements to your existing
La Crosse Alerts™ Gateway (not included) with a wireless range of over 200 Ft.
(60.96 m). The Gateway uses your high-speed Internet connection to upload the
temperature and humidity measurements to your included
www.lacrossealerts.com account. Once set up, you can login to your account and
view your temperature and humidity sensor(s) with an Internet-connected mobile
device, tablet or computer with a web browser.

MONITORING OPTIONS

Note: The sensor case is weather resistant, not water proof. The sensor case
cannot get wet, and may be affected by high humidity conditions. **The optional
Wet probe is designed to measure wet environments like a pool or aquarium.
Humidity monitoring*:
o
Pianos and other musical instruments
o
Greenhouses
o
Reptile terrariums
o
Cigar storage/humidors
o
Allergies (dust mites & mold)
o
Laundry rooms and basements at
rental properties or vacation homes
Storage conditions (temperature and humidity)*:
o
R.V. storage
o
Warehouses
o
Long-term storage
Temperature monitoring using optional detachable Wet probe*:
o
Pools, spas hot tubs
o
Aquariums, terrariums and other pet care
o
Bird baths
o
Home beer brewing
Temperature monitoring using optional detachable Dry probe*:
o
Refrigerators, freezers, laundry rooms and
basements at rental properties or vacation homes
o
Food service
o
Computers/ server rooms
o
Soil temperature using probe:
o
Farms
o
Gardens
o
Greenhouses
* Disclaimers: La Crosse Technology, LTD. ("La Crosse") provides various alert
and monitoring services to aid users. (1) Service providers may charge users for
alert services. Standard messaging and data rates apply and will be billed to the
customer's wireless account. Customers may be unable to receive text
messaging or data service in some areas due to unavailability of service. (2) La
Crosse shall not be liable for accuracy, usefulness or availability of data
transmitted via the service. Users are solely responsible for damages to persons
or property by service use. (3) La Crosse shall not be liable for any damages or
warranty issues that may incur from altering property (plumbing) to accommodate
This socket is ONLY
for the external probe.
DO NOT insert
power plug into it.
the temperature monitoring hardware. Users are solely responsible for damages
to persons or property by use of the hardware installation kit.

PACKAGE CONTENTS

1. TX60U-IT Wireless temperature and humidity sensor
2. Mounting hardware
3. Instruction manual
4. Activation key card (IMPORTANT for set up. Do not throw away)
5. 6 ft. Temperature Probe wire with threaded stainless steel probe
(1/8 inch Fine Pipe Thread)

ADDITIONAL EQUIPMENT (NOT INCLUDED)

Internet Gateway, AC adapter and LAN cable are not included (sold
separately).
Two fresh AAA, IEC LR03, 1.5V Alkaline batteries
Browser with high speed Internet
Internet Gateway, AC adapter and LAN cable are not included
Network router
Aluminum tape
OPTIONAL CHANNEL 2 PROBE (Wet Probe or Dry
Probe)
If the optional probe for the temperature and humidity sensor is unplugged, the
LCD on the temperature and humidity sensor will display "nC" for the CHANNEL
2 reading. **A wet or dry probe can be plugged into the sensor at any time
without resetting the units.

ACTIVATION

See the Activation Card in the package for setup instructions and the Activation
Key. The Activation Key is necessary to activate your sensor and Gateway.
Please keep your Activation Card for reference.
Account creation and product activation at:
www.lacrossealerts.com
If you have lost your Activation Card with the
Activation Key, please contact customer support for
assistance:
Support:
www.lacrossetechnology.com/support/alerts
Phone: (608) 785-7920
1 YEAR OF ENHANCED SERVICE WITH ALERTS AND 4 YEARS OF BASIC
SERVICE ARE INCLUDED WITH YOUR ACTIVATION KEY
Once the Gateway and sensor is activated on your www.lacrossealerts.com
account, you can monitor your sensors online and set up custom e-mail and text
message alerts*.

MEASUREMENT LOG DOWNLOAD

Once the sensor is activated and building a measurement log, you can download
the data as a comma separated values (CSV) file. You must use an application
such as Microsoft Excel® or Google Docs® that supports comma separated
values (CSV) formatted files to view the table data.
IMPORTANT SETUP & OPERATION NOTES
The sensor should be placed in a dry, shaded area. Please avoid a
location with direct sun, as that will cause incorrect readings.
Fog and mist will not harm the sensor but direct rain must be avoided.
Note: Exposing the sensor case to extreme humidity may temporarily
disrupt data. The sensor case reads humidity, but should not be
submerged in water. **Attach a 6 ft. wet probe to measure water
temperature.
The sensor has a wireless range of 200 feet (60.96 m). Keep in mind that
the 200 ft. range equates to open air with no obstructions, and that radio
waves DO NOT curve around objects. Actual transmission range will vary
depending on what is in the path of the signal. Each obstruction (roof,
walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in
half.
Metal siding, stucco, and some types of glass can reduce signal range by
as much as ¾ or more, compared to the ½ reduction typical of most
obstructions. It is possible to receive a signal through these materials,
however maximum range will be reduced due to their tendency to absorb or
reflect a much larger portion of the sensor's signal.
