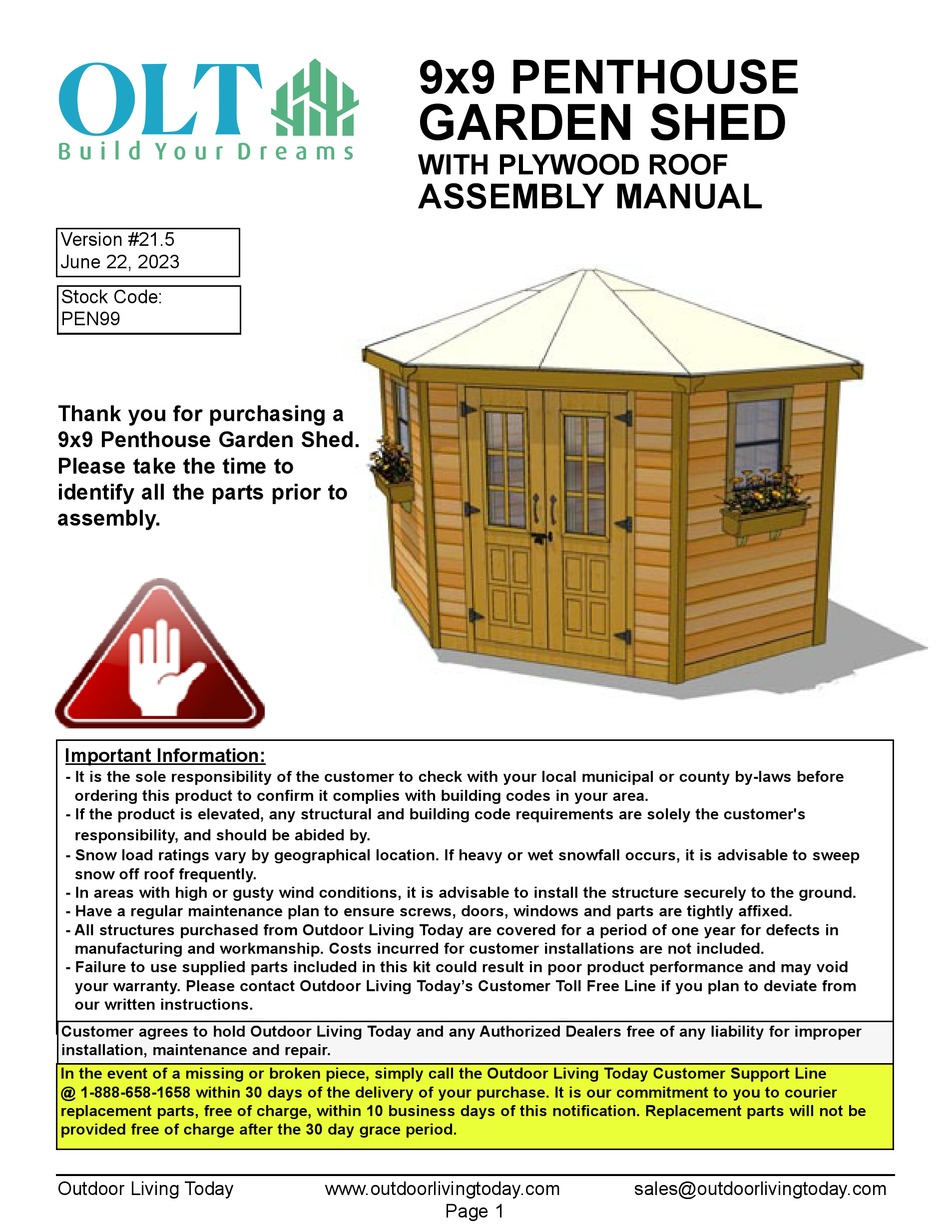

OLT PEN99 Assembly Manual

9x9 penthouse garden shed with plywood roof
Hide thumbs

Advertisement

Quick Links

Download this manual
Version #21.5
June 22, 2023
Stock Code:
PEN99
Thank you for purchasing a
9x9 Penthouse Garden Shed.
Please take the time to
identify all the parts prior to
assembly.
Important Information:
- It is the sole responsibility of the customer to check with your local municipal or county by-laws before
ordering this product to confirm it complies with building codes in your area.
- If the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep
snow off roof frequently.
- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.
- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in
manufacturing and workmanship. Costs incurred for customer installations are not included.
- Failure to use supplied parts included in this kit could result in poor product performance and may void
your warranty. Please contact Outdoor Living Today's Customer Toll Free Line if you plan to deviate from
our written instructions.
Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper
installation, maintenance and repair.
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line
@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier
replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Outdoor Living Today
9x9 PENTHOUSE
GARDEN SHED
WITH PLYWOOD ROOF
ASSEMBLY MANUAL
www.outdoorlivingtoday.com
Page 1
sales@outdoorlivingtoday.com

Advertisement

loading

Related Manuals for OLT PEN99

Summary of Contents for OLT PEN99

  • Page 1 9x9 PENTHOUSE GARDEN SHED WITH PLYWOOD ROOF ASSEMBLY MANUAL Version #21.5 June 22, 2023 Stock Code: PEN99 Thank you for purchasing a 9x9 Penthouse Garden Shed. Please take the time to identify all the parts prior to assembly. Important Information: - It is the sole responsibility of the customer to check with your local municipal or county by-laws before ordering this product to confirm it complies with building codes in your area.
  • Page 2 Thank you for purchasing our 9x9 Penthouse Garden Shed. Please take the time to identify all the parts prior to assembly. C. Rafter Section Continued Steps 57 - 62 Facia 4 - 3/4” x 4” x 60” Rear Side Facia 2 - 3/4”...
  • Page 3 9X9 PENTHOUSE HARDWARE PACKAGE Hardware Kit (Provided) x 26 3” x 32 1” Black Headed x 334 2 1/2” x 18 1” Finishing x 310 1 1/2” 2” Finishing x 20 2” Black Headed x 320 1 1/4” Square Drive Bit 90°...
  • Page 4 A. Floor Section Exploded view of all parts necessary to complete Floor Section. Identify all parts prior to starting. Floor Footprint is 111” x 111” x 55 1/2 x 55 1/2” x 78 1/2”. 27 5/8” wide Plywood Floor Piece Large Plywood Floor Piece (3) Triangular Plywood...
  • Page 5 Place Interior Floor Joists (38 3/4” & 24 3/4”) so both are tight against perimeter joists and attach with 2 - 2 1/2” Screws per end. Lay out completed Floor Joist Frame Attach Rectangular Section together with 6 Sections as illustrated above. - 2 1/2”...
  • Page 6 111” 55 1/2” Place Triangular Floor Section tight against both Rectangular Floor Sections and secure with 6 - 2 1/2” Screws per side. When Floor Frame Sections are all attached, your perimeter will be 111” x 111” x 55 1/2” x 55 1/2”x 78 1/2”. Short Runner Attach Floor Runners to completed floor frame perpendicular to the floor joists.
  • Page 7 41 1/2” 27 3/4” 57 1/4” 44” Attach remaining 3 Floor Runners (41 1/2” with straight cut ends and 44” angle cut 1 end) and 57 1/4” with angle cut end as per Step 8 and 9. The smaller runners will form a 85 1/2” runner when connected.

  • Page 8: Table Of Contents

    plywood pushed together at seam. With Plywood positioned correctly on floor framing, attach with 1 1/4” Screws. Use screws every 16”. Position middle Plywood Floor pieces (27 5/8” wide) and secure as illustrated above. Complete remaining Plywood Floor pieces positioning and attaching as per Step 12 & 13. B.

  • Page 9: Plate

    Bottom Wall Plate Starting with Solid Wall Panels, carefully lay panel face down. Position and attach Wall Plate to bottom of wall studs of each wall panel with 3 - 2 1/2” Screws. Position so plates are flush with framing. wall siding flush with outside of Post Post flush at...
  • Page 10 Wall Siding overhangs floor by 1/2” Wall framing flush with floor. The Wall Panel framing will sit flush at the end of the plywood floor while the wall siding and Corner Post will overhang the floor by approximately 1/2”. Position Rear Wall Panels in place. Butt both vertical wall studs of rear walls together and attach with 3 - 2 1/2”...
  • Page 11 Position and attach adjacent rear Solid Walls as per Steps 19-20. Post flush with Post 1/2” wall framing overhang Position and secure Corner Post to rear wall stud as per Step 16. Locate a Window Wall Panel. Position and attach wall stud to Corner Post as per Step 16. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com...
  • Page 12 Position Window Wall Panel on floor as per Step 18. Position and attach remaining Window Wall Panel as per Steps 23 - 24. Flush to inside of wall stud. Front Corner Posts (wedge Shaped) Window Wall Stud. Place a Front Corner Post against an outside Window Wall Stud with the tip of the wedge flush to the inside.
  • Page 13 Position a Narrow Wall Panel to left side of shed against Front Corner Post. Position wall framing on Post as per Step 26. Note: Narrow Walls are 73” high (2” shorter than the regular walls). With Narrow Wall properly positioned, secure from wall stud, through wedge into Window Wall stud with 3 - 2 1/2”...
  • Page 14 Screw into Jamb Gap to front. Cleat to top. Position and attach the Door Header to Door Jamb and Narrow Wall Panel top framing. Header should sit flush with Door Jamb and Outside of Narrow Wall Panel Siding. Attach with 4 - 2 1/2”...
  • Page 15 Locate and position both Side Wall Top Plates on top of walls. Side Wall Top Plates are 55” long and are 45 degree angle cut on both ends. Attach with 4 - 2 1/2” Screws per piece. Locate Front Wall Top Plate (76 1/2” long and 45 degree angle cut on each end). Position and attach as other Wall Plates.
  • Page 16 C. Rafter Section View of all parts necessary to complete the Rafter Section. Identify all parts prior to starting. Corner Rafter- Right (3) (30 degree cut 1 end - 45 & Corner Rafter- Left (3) 30 degree cut on other end) Core Block (30 degree cut 1 end - 45 &...
  • Page 17 2nd Hip Rafter Position and attach a 2nd Hip Rafter on the opposite side of Core Block as per Step 36. Be sure to pilot hole Rafter to prevent splitting. Be careful to support both Rafters. Attach the Final Hip Rafter at 90 degrees to other rafters as per Step 36. Once again, drill pilot hole to prevent splitting.
  • Page 18 Locate Front Mid Rafter (53 1/4” long / 40 degree angle cut on ends). Position on Core Block 90 degrees from other rafters. Attach as per Step 36. Remember to drill pilot hole to prevent splitting and be careful to support all the attached rafters. 51 7/8”- Support Beam 24”...
  • Page 19 Place Temporary Support Beam inside the shed prior to lifting semi-completed Rafter Section on to walls. Using 3 people, lift the Rafter Section up, carefully supporting Hip Rafters. Support Beam Place seat cut of Hip Rafter in each corner. Position Front Mid Rafter seat cut equally from side to side on Front Wall Top Plate.
  • Page 20 With Front Mid Rafter equally positioned from side to side on Front Top Plate and seat cut of Rafter 1/8” past the outside of Top Plate, secure with 2 - 90° Metal Brackets and 8 - 1 1/4” Screws. Using a Step Ladder, attach both Rear Mid Rafters (68” long) to 1” alignment mark on Core Block with 1 - 3”...
  • Page 21 Right Side. Cleat recessed on inside. Locate and attach both Left and Right Front Hip Rafters with Cleats (68 3/8” - 30 & 45 Degree cuts at one end). Align Left and Right Rafters so cleats are recessed on inside. Attach to Core Block Alignment line as per Step 46.
  • Page 22 Straight Edge Locate Left and Right Corner Rafters. Position a set on a corner Hip Rafter. Align as per Step 47. Use a Straight Edge to line Rafter end with corner Hip and Mid Rafter ends. Attach to Hip Rafter with 2 - 3” Screws. Complete both Left and Right Corner Rafters, aligning and attaching as per Step 51.
  • Page 23 Cut Soffit Installing Soffits prior to completing Facia and Roof Panels makes for an easier installation. Rafter location may vary slightly so Soffits will have to be measured and cut to size. Locate Front Wall Soffits (2 - 1/2” x 4 1/2” x 39”). Place between Front Hip and Front Mid Rafters, measure, mark and cut Soffit so when sitting flush against Top Wall Plate, it will be tight against both rafters.
  • Page 24 Facia aligned flush to bottom of rafter. 4x4 Post When installing Facia, start with Side Facia Board first (59 3/4” long). Align Facia on Hip Rafter in Corner so flush to bottom of Rafter. Facia should sit equally on the 45 degree cut on end of rafter. On the opposite end, Side Facia should also sit flush to bottom of Front Hip Rafter and equally on angle cut on end of rafter.
  • Page 25 Position Rear Side Facia (60” long) on Rafter Ends so evenly spaced on both Hip and Rear Mid Rafter (See Step 61 for illustration of Facia alignment on Rear Mid Rafter). Position Facia flush to bottom of Rafter once again and attach with 6 - 1 1/2” Finishing Nails per piece. equally spaced on Rear Mid Rafter.

  • Page 26: Panel

    D. Roof Section Left Rear Roof Panel Top Left Rear (#7) Roof Panels Left Rear (#11 & 12) Roof Panel Right Rear (#8) Roof Panel (#6) Top Right Rear Roof Left Side Panels Roof Panel (#13 - 14) (#3) Right Rear Top Left &...
  • Page 27 Align and attach Right Front Roof Panel (#2) as per Step 63. Place the Left Side Roof Panel (#3) on Front Corner and Hip Rafter as shown above. Align Left Side Roof Panel so it sits equally on both Rafters and roof ceiling sits close to Facia. Screw Roof Panel down with 2 - 1 1/4”...
  • Page 28 3/4” on Rear Mid Rafter Place a Right Rear Roof Panel (#5) on Rear Mid and Hip Rafter. Center Rear Roof Panel on Rear Mid Rafter (3/4”). Align and attach as per Step 65. Place, align and attach a Right Rear Roof Panel (#6) on Rafters as per Step 67. Complete final Left Rear Roof Panels (#7 &...

  • Page 29: Window Insert

    Place and align remaining Top Right Place and align Top Right Rear Roof Roof Panels (#11 thru 14) on Rafters. Attach Panels (#9 & #10) on Rafters. Attach with with 3 - 1 1/4” Screws per panel. 3 - 1 1/4” Screws per panel. Once all plywood roof panels are secured, you should attach roofing paper to cover plywood completely.
  • Page 30 Attach Bottom Skirting around the base of the shed. Skirting will hide floor framing. Start with Rear and Side Skirting pieces first, The Rear Skirting pieces will meet where walls come together. Attach with 4 - 1 1/2” Finishing Nails per piece. Complete all rear wall pieces. Position Side Skirting piece in place.
  • Page 31 In each rear corner, locate one 4 1/2” and 5” Side Rear Corner Trim. Place narrow trim on rear wall so flush with outside of corner post and place wider trim on side wall flush to outside of narrow trim. When properly positioned, secure with 8 - 1 1/2” Finishing Nails per piece. Complete remaining 2 Corners as per Step 77.
  • Page 32 Locate both Front Corner “V” Shaped Trims. Place over corners in front and attach each with 8 - 1 1/2” Finishing Nails. Flush with Door Jamb. Doorway Trim Locate both Doorway Trims (2 1/2” wide) and position over Door Jamb so it sits flush (see illustration above).
  • Page 33 Flush to inside of wall framing Align Threshold Door Stop (49 3/4” long) flush to inside of wall framing. Screw down to plywood floor with 4 - 1 1/4” Screws. Align Vertical Door Stop to inside of wall framing and attach with 4 - 1 1/4”...
  • Page 34 Window mullion facing outside of shed. Remove screws in frame Locate both Right and Left Doors. If you choose to paint or stain your shed you can remove the window from the door. Remove screw from top and bottom of window frame to detach window. Once treated you can return the window into the door and replace the screw.
  • Page 35 Note: illustration of Hinge may not be accurate. The # of screw holes in the hinge may vary from three to four depending on model. Attach Black Tee Hinges with 1” Black screws. Attach Door Hinges to both Left and Right Side Double French Doors. Position Hinges equally on door as shown above and attach with 1”...
  • Page 36 1” Black Screws only. Drill Pilot Holes first. Flange attached to door with male Barrel Bolt. screw 3/4” away from edge Attach Door Handles, Exterior Barrel Bolt and Center Door Stop to doors. Handles are attached equally on both doors with 1” Black Screws. Attach Black Barrel Bolt as illustrated above with 1”...
  • Page 37 Trim dado sits in flange. Position Window Trim around window doing a dry run first and attach with 4 - 1 1/2” Finishing Nails per piece. The window kit trim pack = 1 x 24 1/16” = top / 3 x 23”= sides and bottom.
  • Page 38 Outdoor Living Today Flower Box Assembly Instructions Side Trims (D) Front Trim (C) End Caps (B) 1 1/4” Parts Lists: Nails (G) A - Base, Rear & Front Box Frames (3pcs) 3/4” x 5 1/2” x 23” B - End Cap Frames (2pcs) 3/4”...
  • Page 39 Note: Our Sheds are shipped as an unfinished product. If exposed to the elements, the lumber will weather to a silvery-gray color. If you prefer to keep the lumber looking closer to the original color, we suggest that you treat the wood with a good oil base wood stain.
