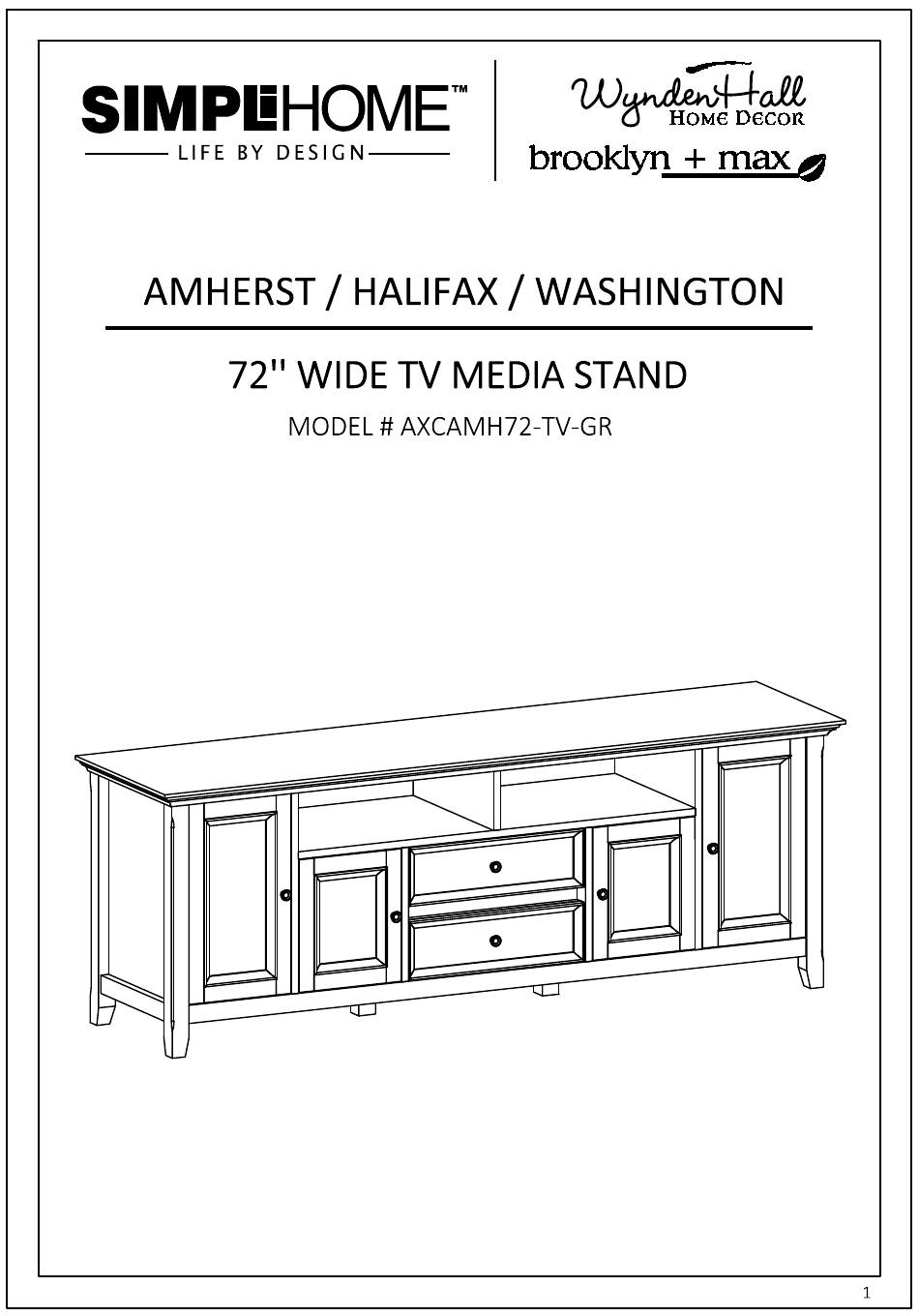

Summary of Contents for Simpli Home Wynden Hall brooklyn + max AXCAMH72-TV-GR
- Page 5 PRE-ASSEMBLY INFORMATION MODEL # AXCAMH72-TV-GR PART DESCRIPTION BOTTOM SHELF QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
- Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCAMH72-TV-GR PART DESCRIPTION LARGE DOOR (L&R Same) SMALL DOOR (L&R Same) QTY 2 QTY 2 Warning Label NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
- Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCAMH72-TV-GR PART DESCRIPTION LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
- Page 8 PRE-ASSEMBLY INFORMATION MODEL # AXCAMH72-TV-GR HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK M6 X 30mm ALLEN KEY QTY 22 SETS QTY 34 QTY 1 QTY 22 PHILLIPS SCREW ROUND HEAD HANDLE SHELF SUPPORT M4 X 15mm MAGNET AND PLATE M4 X 25 mm QTY 39...
- Page 14 STEP-9 STEP-10 1. Use three Allen Key Screws 1 to attach Top Divider F through guide holes from Top Shelf D to pre-drilled holes of Top Divider F . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 15 2. Insert six Cam Locks 2 into guide holes on Middle Dividers GL , GR (3 Cam Locks on each Middle Divider ). 3. Use to secure Cam Locks. Do not over-tighten.
- Page 17 2. Insert six Cam Locks 2 into guide holes on Top Shelf D . 3. Use to secure Cam Locks. Do not over-tighten.
- Page 18 2. Use three Allen Key Screws 1 to attach each part HL , HR , GL , GR through guide holes from Bottom Shelf C to pre-drilled holes of parts HL , HR , GL , GR . 3. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 20 2. Insert six Cam Locks 2 into guide holes on Bottom Shelf C . 3. Use to secure Cam Locks. Do not over-tighten.
- Page 21 2. Use three Allen Key Screws 1 to attach each part BL , BR , HL , HR , F through guide holes each part BL , BR , HL , HR , F to pre-drilled holes of Top A . 3.
- Page 30 WARRANTY...
