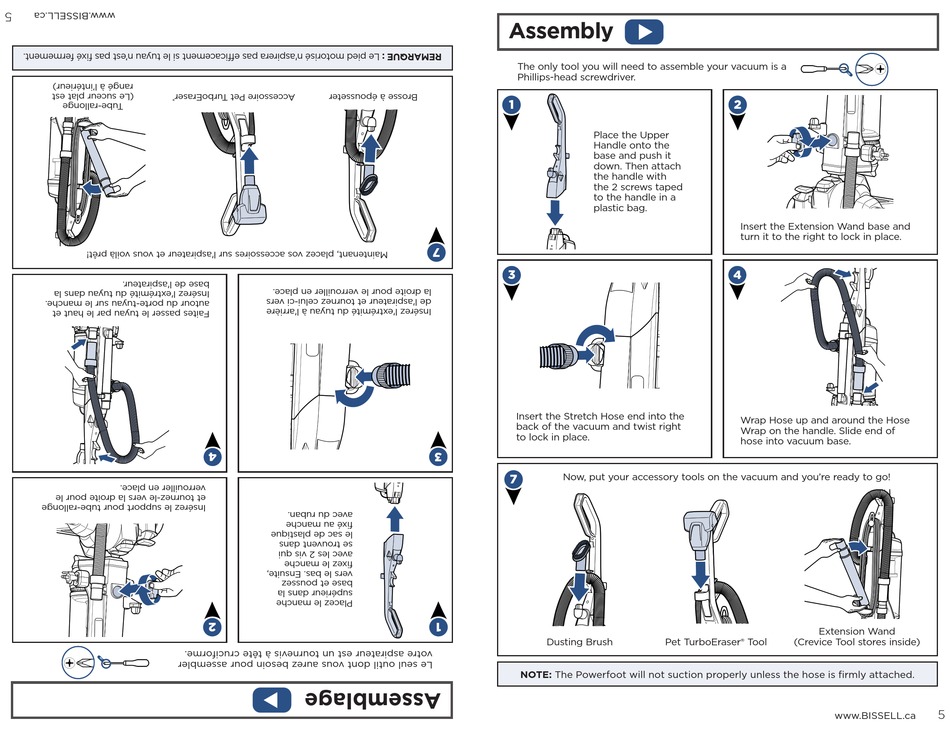

Assembly

The only tool you will need to assemble your vacuum is a
Phillips-head screwdriver.
1
Place the Upper
Handle onto the
base and push it
down. Then attach
the handle with
the 2 screws taped
to the handle in a
plastic bag.
3
Insert the Stretch Hose end into the
back of the vacuum and twist right
to lock in place.
7 Now, put your accessory tools on the vacuum and you're ready to go!
Dusting Brush Pet TurboEraser® Tool
NOTE: The Powerfoot will not suction properly unless the hose is fi rmly attached.
2
Insert the Extension Wand base and
turn it to the right to lock in place.
4
Wrap Hose up and around the Hose
Wrap on the handle. Slide end of
hose into vacuum base.
Extension Wand
(Crevice Tool stores inside)
www.BISSELL.ca
5
