- Page 1 AN-USF5-01 Cell Phone Signal Booster User Manual 1 / 14...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents

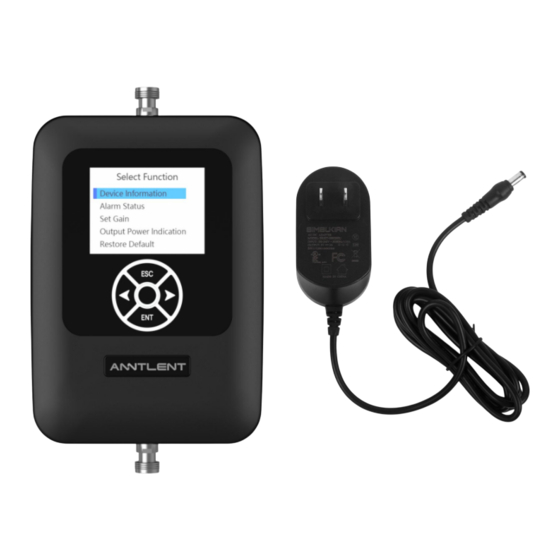

for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other Antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 2．AC/DC Power Adaptor. 3.Screws Mounting Kits. 3. User manual (this document). (2) Booster interface description: ①Manual gain control knob and LED light： You can manually rotate the knob to adjust the gain of the corresponding frequency band .The corresponding LED on the right is used to indicate the following different working conditions of the booster.
- Page 5 Outdoor Cable 50 feet 3D-FB Coaxial PTE-3D-FB-10NB 5.49db @824-894MHz cable with N male 5.89db @1710-1755MHz connector 6.25db @1850-1990MHz 6.86db @2110-2155MHz Notes：The above model antennas are suitable for AN-USF5-01 booster Warning： Unauthorized antennas， cables and/or coupling devices are prohibited 5 / 14...
-
Page 6: Installation Instructions
FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna The booster’s main function is to improve weak RF signals of an area. - Page 7 install them only after the signal quality is tested and the self-oscillation is avoided. If the directional antenna is selected, the main directional angle should point to the tower antenna. If the performance is poor due to weak signals or poor phone call quality, please ...
- Page 8 If isolation can’t be achieved by the limited distance, the roof of the building or any other barriers can be used in between to increase isolation. Fix the donor antenna after selecting the best position, and adjust slightly its height ...
-
Page 9: App Operation
（3）Booster Installation Do not place the equipment in direct sunlight or in an area that has abrupt temperature and humidity changes . it is suggested that the booster is installed in a cool，dry and ventilated room without erosive gas and smoke. Connect power adaptor to the booster，... - Page 10 Figure 1 Figure 2 5. Equipment frequency band status and control:Click on each disc to enter the frequency band operation interface, as shown in Figure 3. （1）Equipment temperature indication: indicates the temperature at which the equipment is operating. （2）Equipment frequency band power: the power under this frequency band. Device frequency band number: The frequency band number corresponding to this interface.
-
Page 11: Troubleshooting And Support
2.Check the power outlet, the power adapter plug maybe is poor connected. 3.If the problem is still not solved, please contact our company support at support@ANNTLENT.com 1. Check whether the direction of the booster is worng connected. Booster has no 2. - Page 12 If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com Consumer booster warning label: A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster. Subscribers may obtain provider consent in a variety of ways. For example, AT&T, Sprint, T–Mobile, and Verizon Wireless have voluntarily committed to allow their...
-
Page 13: Warranty
The warranty period for the Machine starts on the original date of installation. The date on your invoice or sales receipt is the date of installation unless ANNTLENT or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you;... - Page 14 © 2022 Copyright ANNTLENT Technology (Shenzhen) Co., Ltd. The information contained in this document is subject to change without notice. Edition 3, 2/2022 14 / 14...
