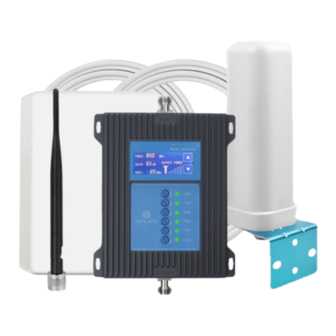

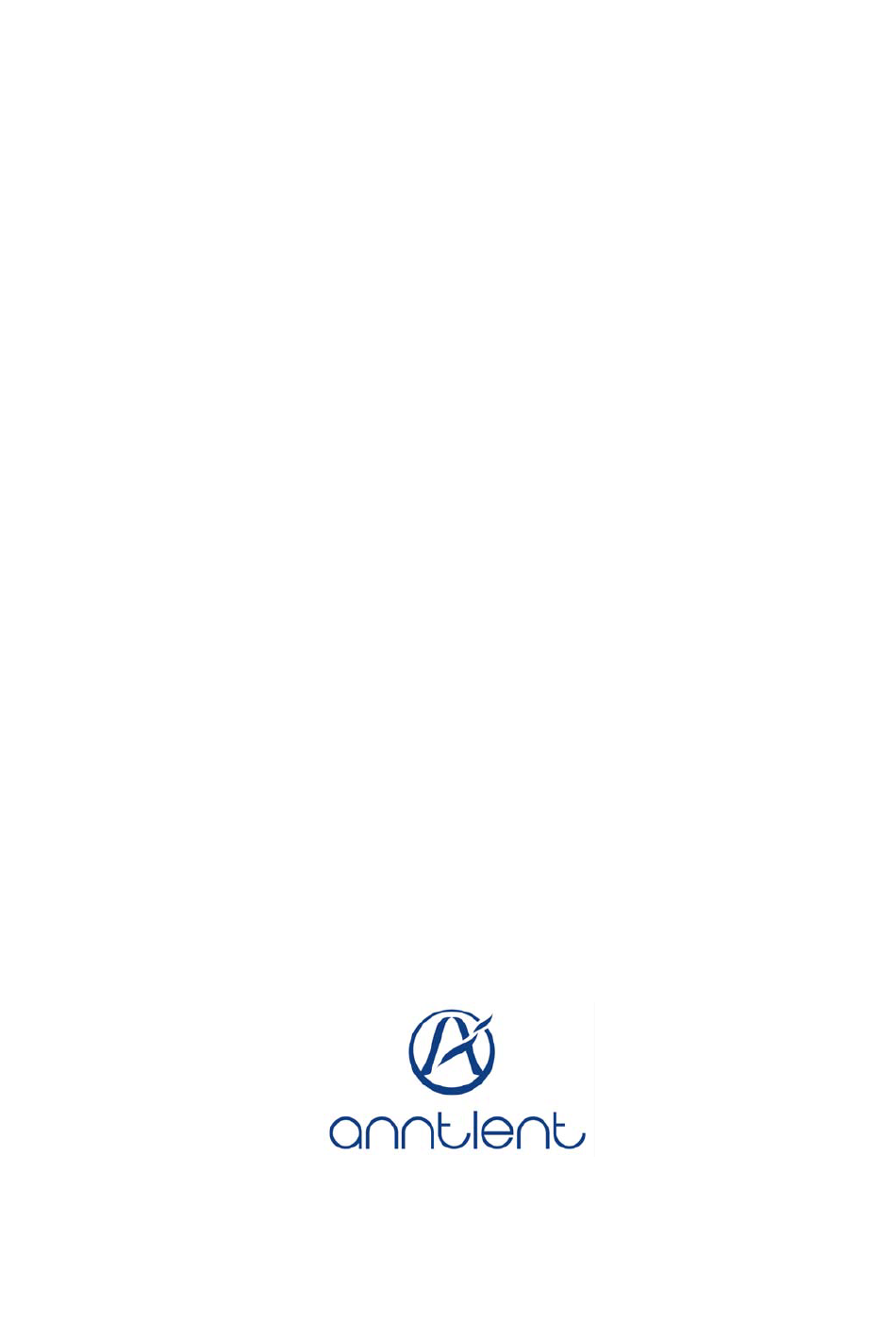

- Page 1 AN-L70V-01 Cell Phone Signal Booster User Manual 1 / 10 ...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents
PACKAGE CONTENTS (1) Packages include the following： ① 1Pcs AN-L70V-01 Booster with N Female connectors. ②AC/DC Power Adaptor. ③Screws Mounting Kits. ④User manual (this document). -
Page 4: Installation Instructions
Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna... - Page 5 The booster’s main function is to improve weak RF signals of an area. A simple formula: Input power+ Gain= Output power. The signal strength from the outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to choose the outdoor antenna location in order to get the best signals.
- Page 6 different mobile operators or various mobile systems. Connect the outdoor antenna to the booster connector marked OUTDOOR with 10 meters 3D-FB Coaxial cable with N male connector Important : Outdoor antenna installation ---Notes: In order to avoid interference, please note that the outdoor antenna should be far away from the following objects of metal, high-voltage line, RF antenna and high-voltage transformer.
-
Page 7: Booster Installation
or angles in order to get the signals with suitable input power level and calling quality. （2）Installation of Indoor Antenna Proper antennas shall be selected according to the site conditions and the requirement. Omni antenna (Indoor ceiling omni antenna or whip antenna), is suitable to be installed in the center and radiate all directions. - Page 8 If necessary，please contact your local dealer or send e-mail to our support team by the following methods: E-mail: support@ANNTLENT-tech.com If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com Consumer booster warning label: ...
- Page 9 A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster. Subscribers may obtain provider consent in a variety of ways. For example, AT&T, Sprint, T–Mobile, and Verizon Wireless have voluntarily committed to allow their subscribers to use properly certificated Consumer Signal Boosters (i.e., boosters that meet the new rules) on their networks.
-
Page 10: Warranty
The warranty period for the Machine starts on the original date of installation. The date on your invoice or sales receipt is the date of installation unless ANNTLENT or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you;...
