- Page 1 AN-USF5 Plus Cell Phone Signal Booster User Manual 1 / 13...
-
Page 2: Package Contents

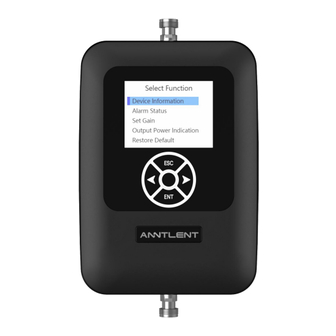

30%, so as to achieve the purpose of energy saving. PACKAGE CONTENTS (1) Packages include the following： 1．1Pcs AN-USF5 Plus Booster with N Female connectors. 2．AC/DC Power Adaptor. 3.Screws Mounting Kits. 3. User manual (this document). (2) Booster interface description: 2 / 13... - Page 3 ①LED light： Booster working conditions LED Indicator RED light Stronger input signals or oscillation happened ,ALC LED LIGHT function is working and power supply is turned off. Normal. WHITE light ②Power supply jack: The booster uses a power input range of DC 5-12V. ③INDOOR and OUTDOOR port：...
- Page 4 Name Model Gain/Loss photo 3dbi @698-787MHz Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @824-894MHz 3.5dbi @1850-1990MHz 3.5dbi @1710-2155MHz Ceiling Antenna PTE-CI-800-2500 3dbi @698-787MHz 3dbi @824-894MHz 4.5dbi @1850-1990MHz 4.5dbi @1710-2155MHz Indoor Panel Antenna AN-101 7dbi @698-787MHz 7dbi @824-894MHz 8.5dbi @1850-1990MHz 8.5dbi @1710-2155MHz YAgi Antenna 8dbi @698-787MHz Outdoor Antenna...
-
Page 5: Installation Instructions
Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna... - Page 6 better to keep line of sight. Please select the opposite directions for outdoor antenna and indoor antenna. If outdoor and indoor antennas have to be installed in the same direction, please install them only after the signal quality is tested and the self-oscillation is avoided. If the directional antenna is selected, the main directional angle should point to the tower antenna.
- Page 7 If isolation can’t be achieved by the limited distance, the roof of the building or any other barriers can be used in between to increase isolation. Fix the donor antenna after selecting the best position, and adjust slightly its height ...
-
Page 8: Booster Installation
2.Check the power outlet, the power adapter plug maybe is poor connected. 3.If the problem is still not solved, please contact our company support at support@ANNTLENT.com 1. Check whether the direction of the booster is wrong connected. Booster has no 2. - Page 9 If necessary，please contact your local dealer or send e-mail to our support team by the following methods: E-mail: support@ANNTLENT-tech.com If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com 9 / 13...
- Page 10 Consumer booster warning label: This is a CONSUMER device. BEFORE USE, you MUST REGISTER THISDEVICE with your wireless provider and have your provider’s consent. Most wireless providers to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
-
Page 11: Warranty
The warranty period for the Machine starts on the original date of installation. The date on your invoice or sales receipt is the date of installation unless ANNTLENT or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you;... -
Page 12: Safety Warnings
SAFETY WARNINGS WARNING: This equipment should be installed and operated with minimum distance 20cm （8 inches）between the radiator& your body. FCC Cautions: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause ... -
Page 13: Copyright Information
Copyright Information © 2022 Shen Zhen ANNTLENT Communication Technology co., Ltd. The information contained in this document is subject to change without notice. Edition 3, 2/2022 13 / 13...
