- Page 1 AN-CPAL70-01 Cell Phone Signal Booster User Manual 1 / 11 ...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents

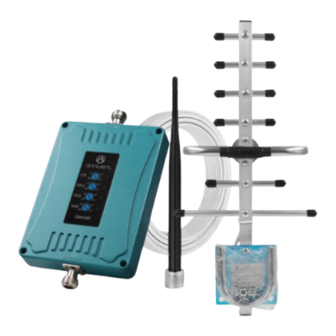

PACKAGE CONTENTS (1) Packages include the following： ① 1Pcs AN-CPAL70-01 Booster with N Female connectors. ②AC/DC Power Adaptor. ③Screws Mounting Kits. ④User manual (this document). - Page 4 N male 2.55db 1850-1990MHz connector 2.86db @2110-2155MHz 5.21db @698-787MHz Outdoor Cable 50feet 3D-FB PTE-3D-FB-10NB 5.49db @824-894MHz Coaxial cable 5.89db@1710-1755MHz with N male 6.25db @1850-1990MHz connector 6.86db @2110-2155MHz Notes：The above model antennas are suitable for AN-CPAL70-01 booster . 4 / 11 ...
-
Page 5: Installation Instructions
Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna... - Page 6 best place that displays full bar signals to install the outdoor antenna. Selecting the installation direction of outdoor antenna. The outdoor antenna shall point to the direction of the tower, and it would be much better to keep line of sight. ...
- Page 7 If isolation can’t be achieved by the limited distance, the roof of the building or any other barriers can be used in between to increase isolation. Fix the donor antenna after selecting the best position, and adjust slightly its height or angles in order to get the signals with suitable input power level and calling quality.
-
Page 8: Booster Installation
2.Check the power outlet, the power adapter plug maybe is poor connected. 3.If the problem is still not solved, please contact our company support at support@ANNTLENT.com 1. Check whether the direction of the booster is worng connected. Booster has no 2. - Page 9 If necessary，please contact your local dealer or send e-mail to our support team by the following methods: E-mail: support@ANNTLENT-tech.com If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com Consumer booster warning label: A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster.
-
Page 10: Warranty
For Warranty service consult the telephone list at www.ANNTLENT-tech.com/contact us. What this Warranty Covers ANNTLENT warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to ANNTLENT's Official Published Specifications which are available on request. - Page 11 on your invoice or sales receipt is the date of installation unless ANNTLENT or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you;...
