- Page 1 AN-L70V Plus Cell Phone Signal Booster User Manual 1 / 11 ...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents

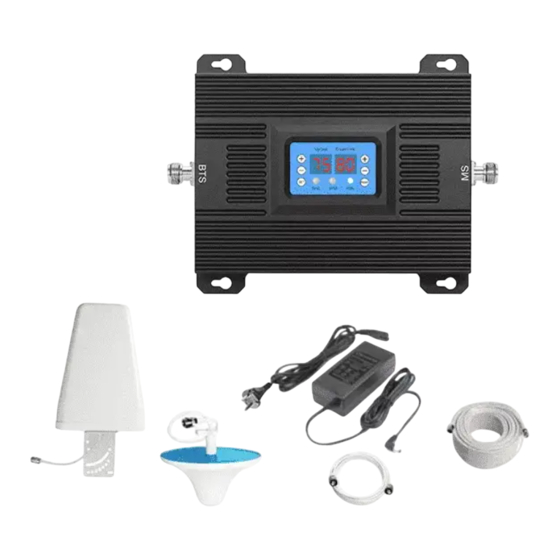

PACKAGE CONTENTS (1) Packages include the following： ① 1Pcs AN-L70V Plus Booster with SMA Female connectors. ②AC/DC Power Adaptor. ③Screws Mounting Kits. ④User manual (this document). - Page 4 Booster working conditions LED Indicator LED LIGHT Continuous GREEN @normal； Twinkly GREEN @input signals may be not enough； Continuous YELLOW @ stronger input signals, AGC is working； Twinkly YELLOW@ self–oscillation happen ,AGC is working. Continuous RED@ power supply is shut down； Twinkly RED@ self–oscillation happen but power supply is NOT shut down.
-
Page 5: Installation Instructions
PTE-3D-FB-10NB cable with N male connector Notes：The above model antennas are suitable for AN-L70V Plus booster . Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. - Page 6 The mobile phone shall display full bar signals in location where the outdoor antenna is installed The phone calls or data transmission shall be smooth and stable by 3 times testing in location where the outdoor antenna is to be installed ...
- Page 7 will finally come to shut off the booster system. If isolation can’t be achieved by the limited distance, the roof of the building or any other barriers can be used in between to increase isolation. Fix the donor antenna after selecting the best position, and adjust slightly its height or angles in order to get the signals with suitable input power level and calling quality.
-
Page 8: Troubleshooting And Support
2.Check the power outlet, the power adapter plug maybe is poor connected. 3.If the problem is still not solved, please contact our company support at support@ANNTLENT.com 1. Check whether the direction of the booster is worng connected. Booster has no 2. - Page 9 If necessary，please contact your local dealer or send e-mail to our support team by the following methods: E-mail: support@ANNTLENT-tech.com If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com Consumer booster warning label: A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster.
-
Page 10: Warranty
For Warranty service consult the telephone list at www.ANNTLENT-tech.com/contact us. What this Warranty Covers ANNTLENT warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to ANNTLENT's Official Published Specifications which are available on request. - Page 11 on your invoice or sales receipt is the date of installation unless ANNTLENT or your reseller informs you. This warranty does not cover the following: Failure resulting from misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by you;...
