- Page 1 AN-USF7 Cellphone Signal Booster User Manual 1 / 12...
-
Page 2: Safety Warnings
Introduction With the popularity of mobile communications, people want to make a call anytime, anywhere, so the coverage requirement of communication network is higher and higher, but the reality is not so, sometimes mobile phone signal is not very good, you want to make a smooth call, even in some places cell phone cannot dial out. -
Page 3: Package Contents

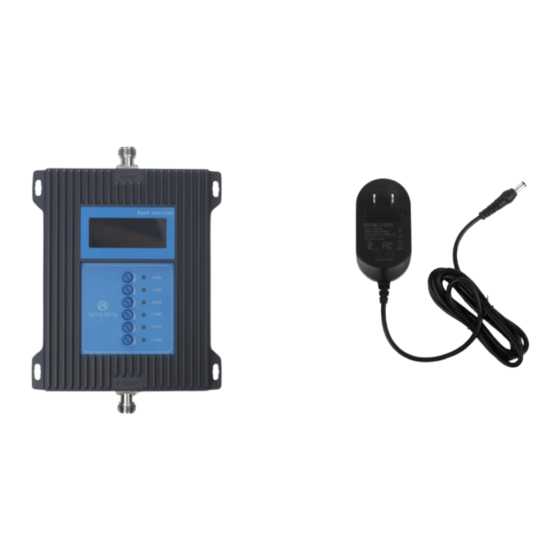

PACKAGE CONTENTS (1) Packages include the following： ① 1Pcs AN-USF7 Booster with N Female connectors. ②AC/DC Power Adaptor. ③Screws Mounting Kits. 3 / 12... - Page 4 ④User manual (this document). (2) Booster interface description: Power Supply Jack Indoor Port Manual Gain Control Knob LED Light Outdoor Port ①Manual gain control knob and LED light： You can manually rotate the knob to adjust the gain of the corresponding frequency band .The corresponding LED on the right is used to indicate the following different working conditions of the booster.
- Page 5 2.42db @1710-1755MHz connector 2.55db @1850-1990MHz 2.86db @2110-2155MHz 5.21db @698-787MHz Outdoor Cable 50 feet 3D-FB Coaxial PTE-3D-FB-10NB 5.49db @824-894MHz cable with N male 5.89db @1710-1755MHz connector 6.25db @1850-1990MHz 6.86db @2110-2155MHz Notes：The above model antennas are suitable for AN-USF7 booster 5 / 12...
-
Page 6: Installation Instructions
Warning： Unauthorized antennas， cables and/or coupling devices are prohibited by FCC rules. Please contact FCC for details：1-888-CALL-FCC The antenna, cables, and other accessories of the booster kits shall not be modified without the approval of the ANNTLENT company, otherwise it shall be deemed invalid. INSTALLATION INSTRUCTIONS （1）Installation of Outdoor Antenna... - Page 7 outdoor and indoor antennas have to be installed in the same direction, please install them only after the signal quality is tested and the self-oscillation is avoided. If the directional antenna is selected, the main directional angle should point to the tower antenna.
- Page 8 If isolation can’t be achieved by the limited distance, the roof of the building or any other barriers can be used in between to increase isolation. Fix the donor antenna after selecting the best position, and adjust slightly its height ...
-
Page 9: Troubleshooting And Support
2.Check the power outlet, the power adapter plug maybe is poor connected. 3.If the problem is still not solved, please contact our company support at support@ANNTLENT.com 1. Check whether the direction of the booster is worng connected. Booster has no 2. - Page 10 If necessary，please contact your local dealer or send e-mail to our support team by the following methods: E-mail: support@ANNTLENT-tech.com If you want to know about ANNTLENT Company and products for more information, please visit at: www.ANNTLENT.com Consumer booster warning label: A subscriber must have the consent of a wireless provider to operate a Consumer Signal Booster.
-
Page 11: Warranty
2) conforms to ANNTLENT's Official Published Specifications which are available on request. The warranty period for the Machine starts on the original date of installation. The date on your invoice or sales receipt is the date of installation unless ANNTLENT or your 11 / 12... - Page 12 The warranty is voided by removal or alteration of identification labels on the Machine or its parts. Copyright Information © 2017 Copyright ANNTLENT Technology (Shenzhen) Co., Ltd. The information contained in this document is subject to change without notice. Edition 3, 5/2018...
