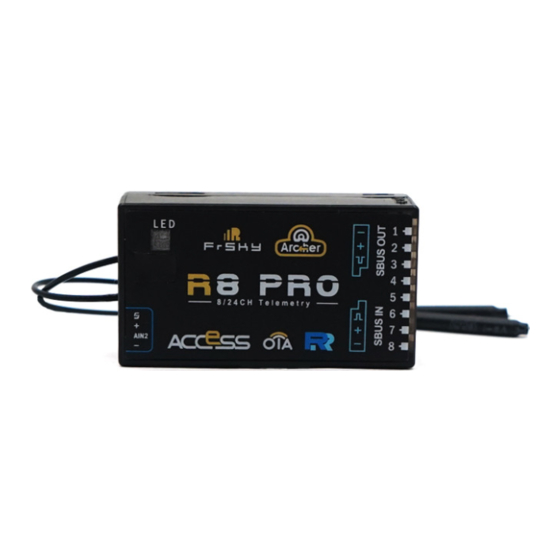

FrSky ARCHER R8 PRO Instruction Manual

Introduction
The Archer R8 PRO has 8 high-precision PWM channel outputs and features excellent Anti-interference
performance when it comes to spark-ignition on internal combustion models. It supports full-range signal strength
with dual detachable antennas that assure optimal antenna reception and maximum range. In addition to all this, the
R8 Pro can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped
with a SBUS port.
All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware
upgrades, increased range, and telemetry performance, the R8 PRO now supports more functions like configurable
telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to
unlock the true potential of the ACCESS protocol.

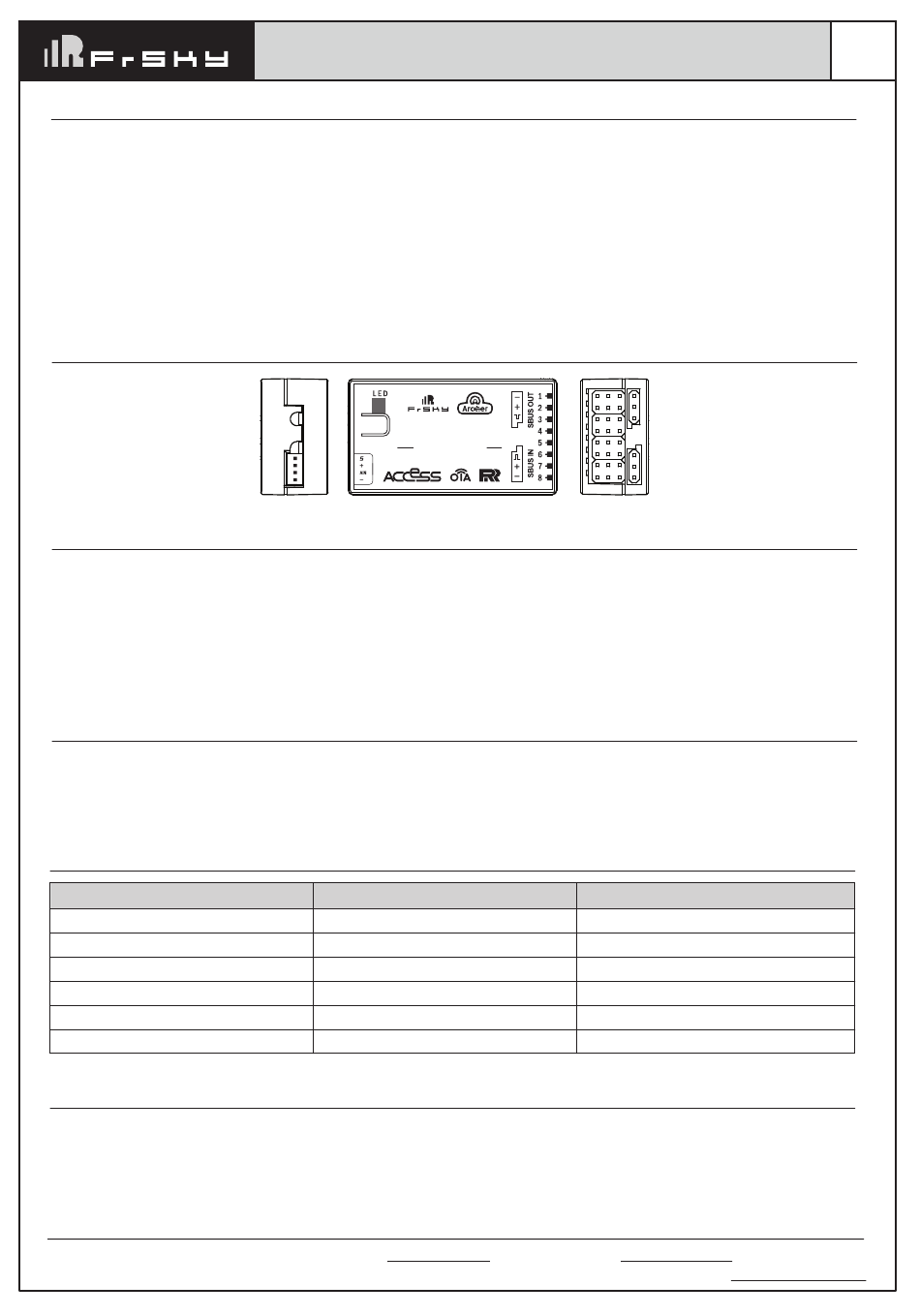

Overview
Specifications
● Dimension: 47*26*15mm (L*W*H)
● Weight: 13g
● Number of Channels: 16/24 SBUS Channels
- 16 SBUS channels
- 24 SBUS channels (Stay tuned)
● Operating Voltage Range: 3.5-10V
● Operating Current: ＜55mA@5V
Features
● ACCESS Protocol with Over The Air (OTA)
● Receiver redundancy
● 8 high-precision PWM channels
● SBUS IN &OUT (using standard servo connectors)
LED state
Green LED
On
Flash
On
On
On
Off
Registration & Automatic binding (Smart Match )
With the FrSky ACCESS protocol, the transmitter/transmitter module can bind receiver without using the "REG"
button.
Follow the step below to finish the Registration & binding procedure:
1. Put the transmitter/transmitter module into [Reg] status.
1.1 For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2,
choose Internal or External RF, and select [Reg].
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER GR8 Receiver
Instruction Manual for FrSky ARCHER R8 PRO Receiver
BUTTON
R 8 P R O
8 / 2 4 C H T e l e m e t r y
2
Red LED
On
Flash
On
Off
Off
On
TM
www.frsky-rc.com
01140165
● Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based
on local conditions.)
● Voltage Measurement Range via AIN2
(External device): 0-36V
● Compatibility: All FrSky ACCESS transmitters
● S.Port / F.Port and AIN2 (on 4 pin socket)
● VFR (Valid Frame Rate) telemetry
● Anti-interference in spark-ignition
Register successfully
Bind successfully
Working normally
Contact us : frsky@frsky-rc.com
Version Version
1.0 1.0
Status
Register
Bind
Failsafe
