SimpliFire GI-32-GZ Service Manual

NOTICE! DO NOT discard any hardware while
servicing.
It must be reused.
This manual will assist a qualified service technician in the
replacement of parts. Contact your dealer to arrange a
service call by a qualified service technician.
Replacement parts include:
Description
Glass
Control Board
Heater Assembly
WARNING: If the information in these
instructions is not followed exactly
it may result in personal injury and/or
property damage.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation and service. Sheet metal edges are sharp.
Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Safety Glasses
Gloves
#2 Phillips Screwdriver
Needle-nose Pliers
Wire Cutters
SERVICE MANUAL
Model: GI-32-GZ
- Instructions -
Part Number(s)
GLASS-GI32
PCB-GI32
HEATER-GI32
SimpliFire • GI-32-GZ Service Manual • 2048-960 Rev. B • 10/22
WARNING! Risk of Shock!
Always disconnect power before
disassembly or servicing.
Preparation for Component Installation
Disconnect electrical service to the appliance. For re-
cessed electrical installations that are hardwired, find and
shut-off service at the breaker. For installations that use
a corded plug, disconnect the cord from the receptacle.
Removing Appliance from Wall
1. Remove the appliance front by pulling the bottom of
the front away from the appliance, then lifting up and
away from appliance.
2. Remove screws attaching appliance to framing. See
Figure 1. Slide appliance out of opening and remove
surround, by lifting it up and off.

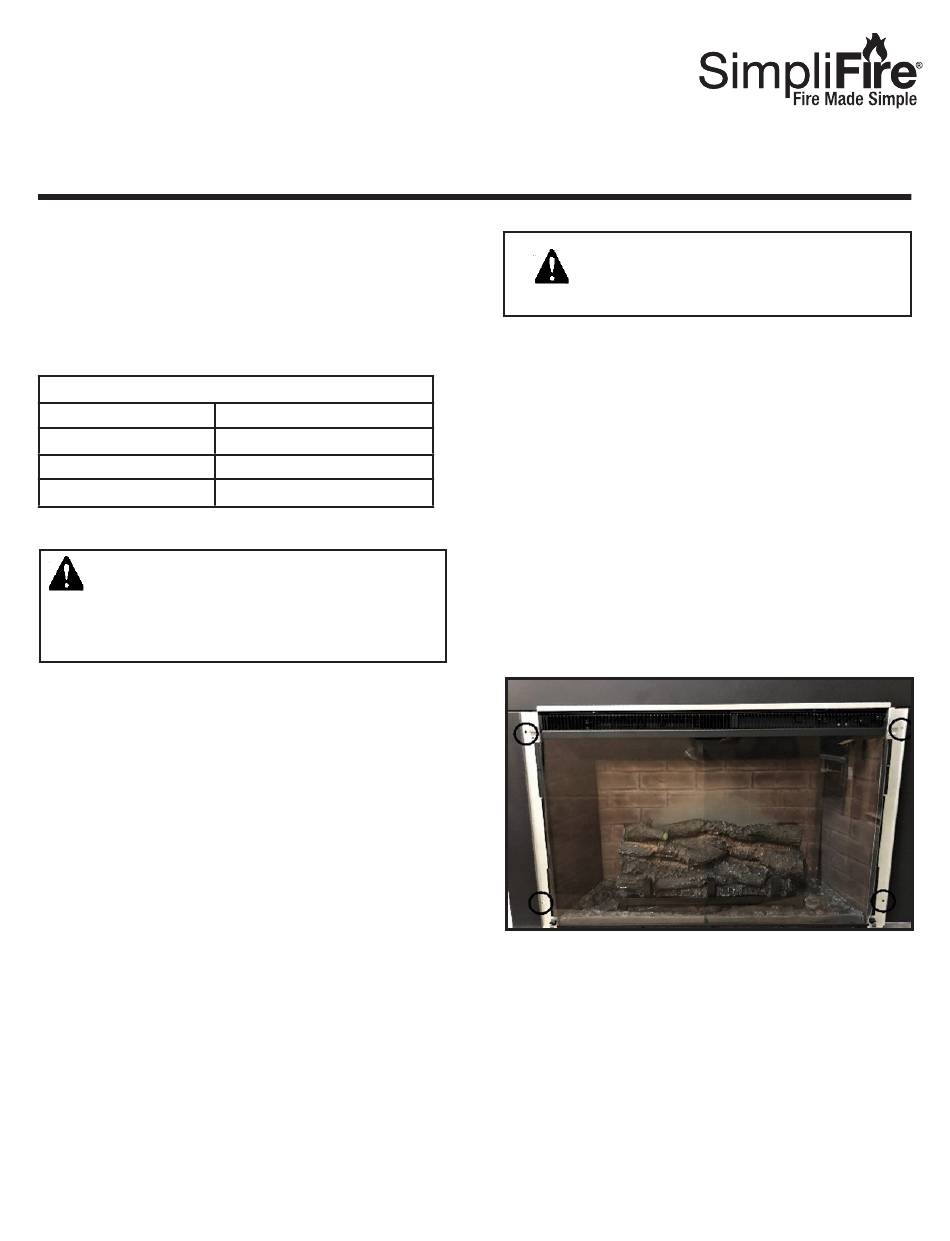

Figure 1 Framing Screw Removal
1
