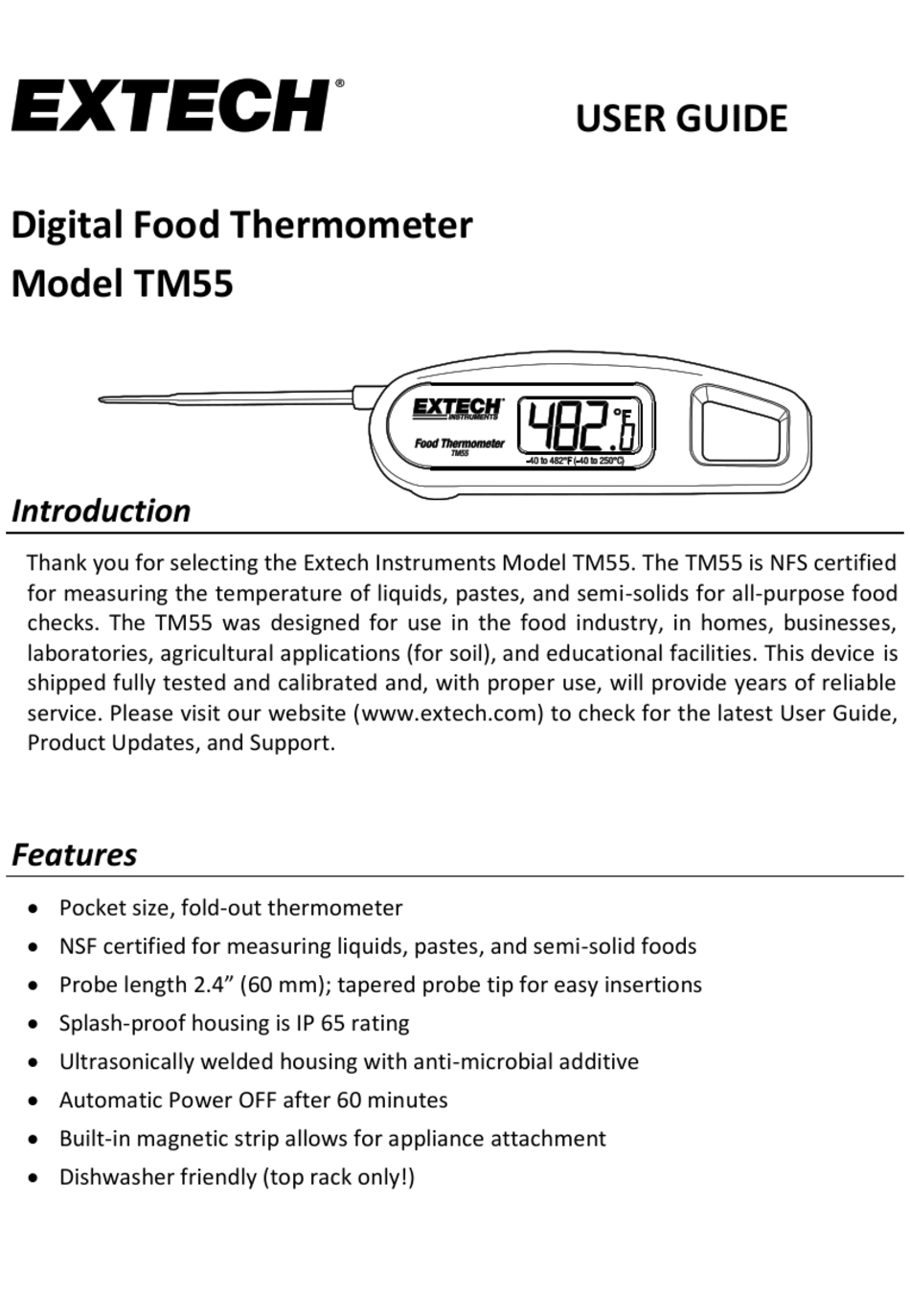

Digital Food Thermometer
Model TM55
Introduction
Thank you for selecting the Extech Instruments Model TM55. The TM55 is NFS certified
for measuring the temperature of liquids, pastes, and semi-solids for all-purpose food
checks. The TM55 was designed for use in the food industry, in homes, businesses,
laboratories, agricultural applications (for soil), and educational facilities. This device is
shipped fully tested and calibrated and, with proper use, will provide years of reliable
service. Please visit our website (www.extech.com) to check for the latest User Guide,
Product Updates, and Support.
Features
 Pocket size, fold-out thermometer
 NSF certified for measuring liquids, pastes, and semi-solid foods
 Probe length 2.4" (60 mm); tapered probe tip for easy insertions
 Splash-proof housing is IP 65 rating
 Ultrasonically welded housing with anti-microbial additive
 Automatic Power OFF after 60 minutes
 Built-in magnetic strip allows for appliance attachment
 Dishwasher friendly (top rack only!)
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Extech Instruments TM55

  • Page 1 Model TM55 Introduction Thank you for selecting the Extech Instruments Model TM55. The TM55 is NFS certified for measuring the temperature of liquids, pastes, and semi-solids for all-purpose food checks. The TM55 was designed for use in the food industry, in homes, businesses, laboratories, agricultural applications (for soil), and educational facilities.
  • Page 2: Getting Started

     Switch the instrument power OFF by carefully folding the probe into its storage position.  The instrument will automatically switch OFF after 60 minutes of inactivity. To switch the instrument ON, fold the probe in for 4 seconds and then fold out again. TM55-EN_v1.2 3/20...
  • Page 3: Battery Replacement

     Remove the battery when the instrument is to be stored for long periods  Keep the instrument in a dry storage location  To prolong the battery life close (fold in) the probe when not in use TM55-EN_v1.2 3/20...
  • Page 4: Specifications

    Battery symbol/ERROR icon appear on the LCD Power supply 1 x CR-2032 Battery Operating Temperature 32 to 122 F (0 to 50 Dimensions 4.6 x 1.5 x 0.8" (116 x 38 x 20mm) Weight Approx. 1.3 oz. (41.2g) with battery installed TM55-EN_v1.2 3/20...
  • Page 5: Two Year Warranty

    Customer Support Telephone: U.S. (866) 477-3687; International +1 (603) 324-7800 Calibration, Repair, and Returns email: repair@extech.com Technical Support: https://support.flir.com Copyright © 2014-2020 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com TM55-EN_v1.2 3/20...
