User Guide

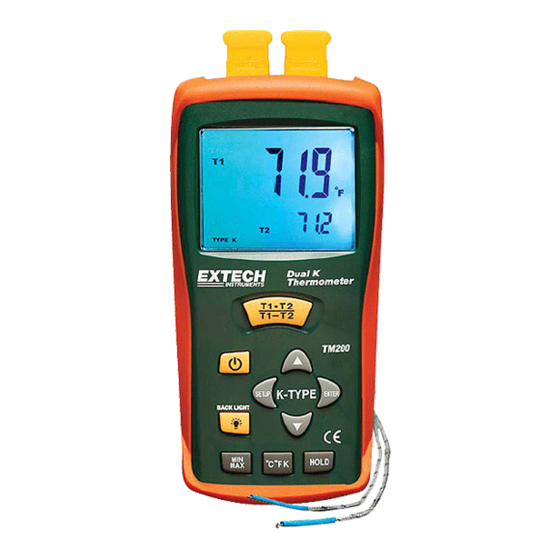

Type K Dual Input Thermometer
Model TM200
Introduction
Congratulations on your purchase of the Extech TM200 Type K Dual Input Thermometer.
This instrument offers a dual thermocouple input and a multifunction LCD display.
Additional features include differential temperature measurement (T1-T2), Data Hold,
push-button Offset adjustment, and MIN/MAX/AVG displays. This meter is shipped fully
tested and calibrated and, with proper use, will provide years of reliable service.
Advertisement
Table of Contents
Related Manuals for Extech Instruments TM200
Summary of Contents for Extech Instruments TM200

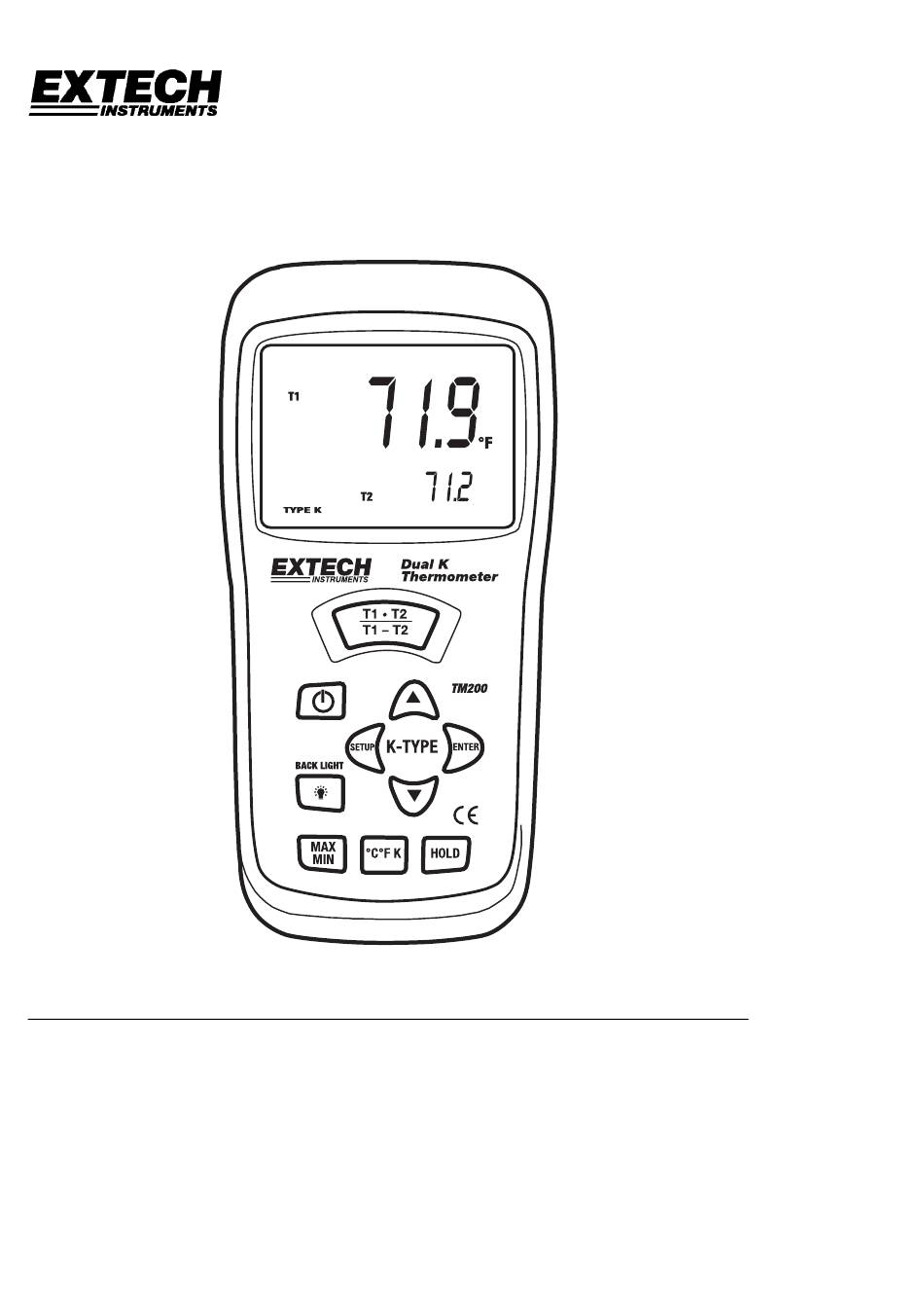

- Page 1 Type K Dual Input Thermometer Model TM200 Introduction Congratulations on your purchase of the Extech TM200 Type K Dual Input Thermometer. This instrument offers a dual thermocouple input and a multifunction LCD display. Additional features include differential temperature measurement (T1-T2), Data Hold, push-button Offset adjustment, and MIN/MAX/AVG displays.
- Page 2 500 F (260 C). To measure higher temperatures, a high-temperature thermocouple (not supplied) must be used. This symbol on the instrument indicates that the operator must refer to an explanation in this manual. TM200 V4.1 11/06...
- Page 3 Press the HOLD button again to return to normal operation (the 'HOLD' hold icon will disappear). Tripod Mount The tripod mounting connector is located on the back of the meter. Tripods are available through Extech Instruments distributors. TM200 V4.1 11/06...
- Page 4 Use the UP/DOWN arrow buttons to program an offset. The available range is ± 9 (±5 Press ENTER again to save the selection Press SETUP again to exit the setup mode and to return to normal operation. Turning Power OFF Press the button to turn power off. TM200 V4.1 11/06...
- Page 5 WARNING! To avoid electrical shock, disconnect the thermocouples before removing the battery cover. Cleaning Use a damp cloth with a mild detergent to periodically wipe the meter housing and display area. Do not use abrasives or solvents to clean the meter. TM200 V4.1 11/06...
- Page 6 C) / < 80% Relative Humidity Ambient Storage conditions 14 to 122 F (-10 to 50 C) / 10 to 80% Relative Humidity Dimensions 6.5 x 3.0 x 1.7" (165 x 76 x 43mm) without holster Weight 7.4oz (210g) with battery TM200 V4.1 11/06...
- Page 7 Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
