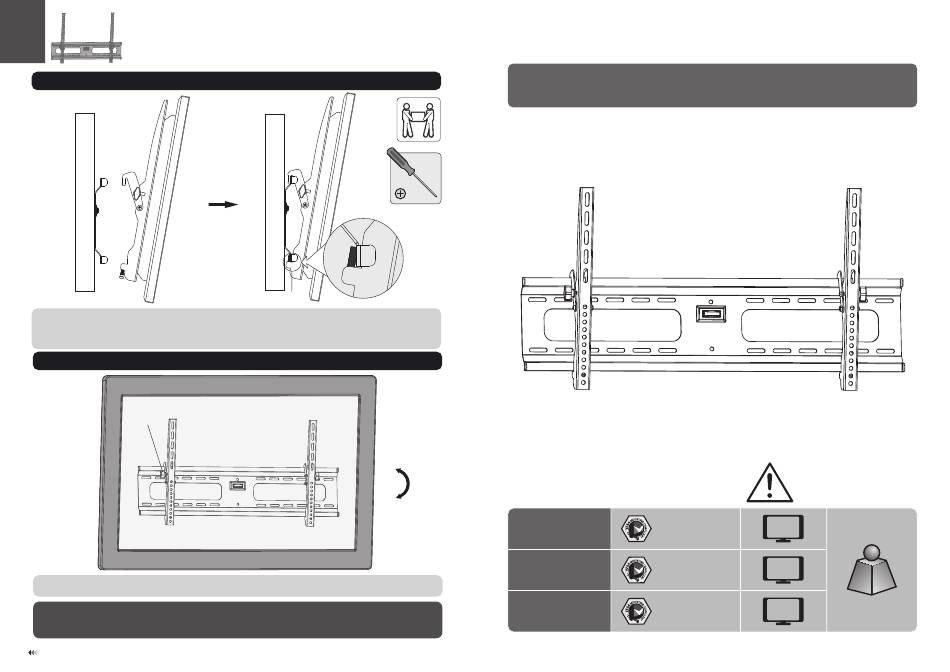

3. Hanging the TV onto the Wall Plate
wall
Hook the TV over the top of the wall plate. Tighten the safety screws on the display brackets with a proper
screw driver.
Important: Make sure the TV is correctly hooked and the safety locking screws are locked safely before
releasing the TV.
4. Adjustment
Tilt adjusting
knob
Use the tilt adjusting knob to adjust your TV to the desired angle.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your dealer if you have any questions.
7
wall
safety screw
0°
-10°
Tilting Wall Mount
200x200/300x300
PLB-43S
400x200/400x400
600x400
200x200/300x300
PLB-43
400x200/400x400
600x400/800x400
200x200/300x300
400x200/400x400
PLB-43L
600x400/800x400
800x600
INSTALLATION MANUAL
CAUTION:
DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
70"
MAX
70"
75kg
75kg
MAX
(165lbs)
(165lbs)
RATED
RATED
70"
MAX
ISSUED: FEB.2013
