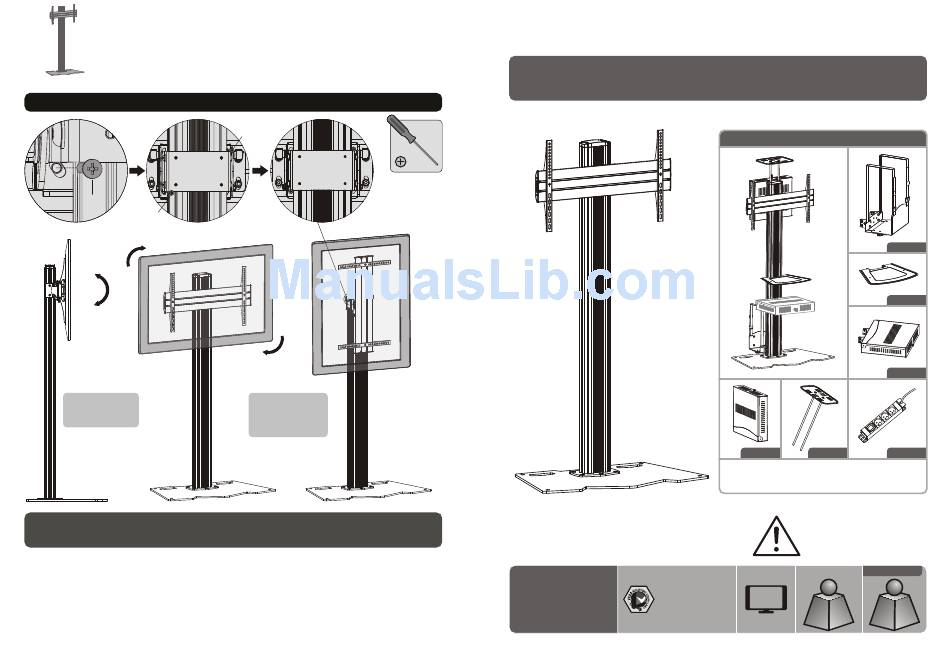

16. Adjustment
L
L
+5°
-12°
Adjust or tilt the
display to the
required position.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
L
0°~+90°
Rotate the display
clockwise and use
the screw to secure
the display.
TV Floor Stand and Accessories
300x300/400x200
AS0246TP
400x400/600x400
INSTALLATION MANUAL
Optional Accessories
AS02H
AS02
AS03V
AS02P
AS02R
AS01K
Note: The accessories are not standard equipped.
The accessories will be selected according to user
requirement.
CAUTION:
DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
All accessories
70"
MAX
65kg
65kg
10kg
10kg
(143lbs)
(143lbs)
(22lbs)
(22lbs)
RATED
RATED
RATED
RATED
ISSUED: JUL. 2014
Advertisement
Table of Contents
Related Manuals for AllMounts AS0246TP
Summary of Contents for AllMounts AS0246TP
- Page 1 • Check that the bracket is secure and safe to use at regular intervals(at least every three months). RATED LISTED WEIGHT. SERIOUS • Please contact your distributor if you have any questions. INJURY OR PROPERTY DAMAGE MAY OCCUR! All accessories 300x300/400x200 70" AS0246TP 400x400/600x400 65kg 65kg 10kg 10kg (143lbs) (143lbs)
- Page 2 If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING AS0246TP • Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions plastic cap (x2) regarding any of the instructions or warnings, please contact your local distributor.
- Page 3 1. Installing the Rubber Pads The following accessories are optional. AS02H Package P • Lift the steel base by grasping the cable ties. • Peel off the backing paper from the rubber pads and stick the rubber CPU holder (x1) pads on to the steel base.
- Page 4 3b. For the Floor Stand Mounting 4-2: Installing the CPU holder on the side of the column (If the power socket is installed on the back of the column) Remove the cable ties. metal plate Loosen and remove the screws in order to separate the metal plate from the connecting piece. Attach the column to the steel base using the appropriate screws.
- Page 5 buckle knob Insert the laptop cabinet to the required position along • Loosen the k obs to adjust the space for CPU. the column rails, Tighten all screws to secure it with • Use the adjustable buckles to hold the machine firmly in place. an Allen key.
- Page 6 9. Installing the Adapter Brackets 9-2 For Recessed Back Screens or to Access A/V Inputs Adjust the adapter brackets to align with display mounting holes, then tighten all screws using a proper screwdriver. M-C M-D/M-E M-D/M-E M-D/M-E Top of the display Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
- Page 7 10. Hooking the Support Plate onto the Aluminum Column 12. Cable Management Insert the support plate along the column rails to the required position and tighten all screws with an Allen key. 11. Hooking the Display onto the Support Plate Attach the top cover to the column using the appropriate screws.
- Page 8 Attach the laptop cabinet to the connecting piece on the universal plate using the appropriate screws. Tighten all screws with a proper phillips screwdriver. la p to p Insert the support rods to the required position along the column slots and tighten both screws to secure the camera shelf.
