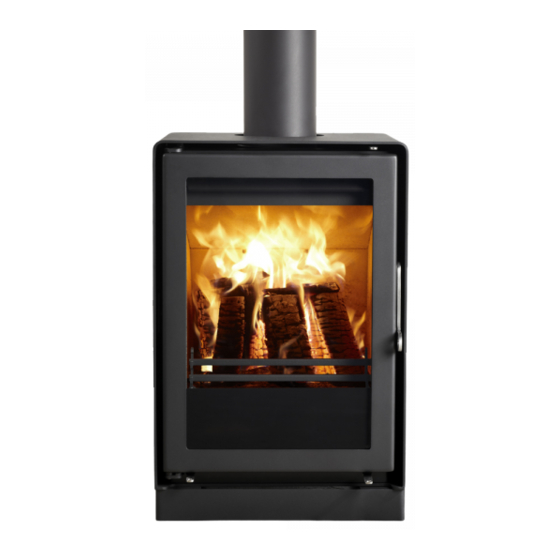

Westfire WF35 Installation Manual And Operating Instructions

Hide thumbs Also See for WF35:
Table of Contents

Advertisement

Quick Links

Download this manual
WESTFIRE ·WF35
WESTFIRE ·WF35
WF35 Insert
UK: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS
DANSK INGENIØRKUNST
1
1 of 32
1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF35 and is the answer not in the manual?

Questions and answers

Related Manuals for Westfire WF35

Summary of Contents for Westfire WF35

  • Page 1 WESTFIRE ·WF35 WESTFIRE ·WF35 WF35 Insert UK: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS DANSK INGENIØRKUNST 1 of 32 1 of 32...
  • Page 2 Nominal Heat Output to Room 4.6 kW Nominal Heat Output to Water 0 kW Seasonal Space Efficiency ( EEI ) Net Efficiency Specific precautions when installed or maintained See the Instructions manual WESTFIRE 2020 | WF35 2 of 32 2 of 32...
  • Page 3 WESTFIRE ·WF35 WF35 UK: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS 3 of 32 3 of 32...
  • Page 4 WESTFIRE ·WF35 102 CERTIFICATE Declaration of performance according to Regulation (EU) 305/2011 No. 300-ELAB-2436-EN PRODUCT Type Wood burning insert Westfire 35 Trade name Heating of rooms in residential buildings Intended area of use Fuel Wood MANUFACTURER Westfire APS Name Tømrervej 3 Address 6800 Varde.
  • Page 5 18 - 30 Operation and Maintenance Instructions INSTALLATION MANUAL AND OPERATING INSTRUCTIONS WF35 INSERT WITH 3 SIDED FRAME WF35 INSERT WITH 4 SIDED FRAME This manual refers to the stove listed above, which is tested in accordance with EN 13240.

  • Page 6: Build In Dimensions

    WESTFIRE ·WF35 STOVE PERFORMANCE & TESTING WF35 models are tested in accordance with EN 13240. Output Efficiency CO@13% Recommended for smoke Output coal Efficiency CO@13% O₂ wood fuel O₂ control Oct 2016 fuel 4.6kW 78.2% 0.10 Yes / SE model 3.7kw...

  • Page 7: Health And Safety Precautions

    W e s t f i r e Stoves product :- WESTFIRE 35 models, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 8: Chimney Connection

    Older properties, especially, may have chimney faults or the cross section may be too large . Westfire Stoves recommend the use of a solid fuel flue lining system for all installation into existing chimneys. All chimney systems must be used in accordance with Building Regulations Approved Document J.

  • Page 9: Installation Instructions

    WESTFIRE ·WF35 INSTALLATION INSTRUCTIONS Each installation is unique to the property so it is not possible to give details to suit every setting. The installation must comply with local and national Building Regulations and be made using best practice construction methods.

  • Page 10: Recessing The Insert

    Further guidance on the installation of the carbon monoxide alarm is available in the latest edition of BS EN50292 and from the alarm manufacturer's instructions. Westfire recommend the unit is permanently fixed in accordance with the manufacturer's installation instructions or with the guidance contained in Approved Document J where no other information is available. Provision of an alarm must not be considered a substitute for either installing the appliance correctly or ensuring regular servicing and maintenance of the appliance and chimney system .

  • Page 11: Recess Example

    WESTFIRE ·WF35 Recess example WF35 insert Thedimensions arethe minimumdimensions, unless otherwise stated. Wall of combustible material Wall of non-combustible material, made of 100 mm aerated concrete in the recess example. Wall of non-combustible material that is not in contact with combustible material and therefore has no minimum thickness requirement.
  • Page 12 Because there will be no existing structural hearth, this will need to be constructed following the strict Building Regulation requirements. For these reasons we cannot recommend that anyone without the necessary experience constructs the housing and flue system for a WF35 insert stove. Insulating blocks...
  • Page 13 WESTFIRE ·WF35 The insulating properties of many modern houses are extremely high and Inner skin of plasterboard many external walls are now constructed with an inner skin of plasterboard, supported on a wooden frame which is thermally insulated from the outer skin of brick. Having such a low thermal conductivity makes it impossible to use the outer wall as the back of the stove’s housing unless...
  • Page 14 WESTFIRE ·WF35 Remove all the internal components from the stove Prior to installing the outer convector box and stove carefully remove all the components from the stove and put somewhere where they will not become damaged. Follow the instructions on page 28 of this manual.
  • Page 15 WESTFIRE ·WF35 Flue collar direction Vertical connection 45°connection 180° The flue direction can be changed from the vertical to a 45°connection by lifting out the flue collar and fixing plate and turning it through 180°. Take the flue adapter off the stove.

  • Page 16: Fitting The Frame

    WESTFIRE ·WF35 Securing the outer convector box Fit the outer convector box into the opening and mark the position of the 2 holes on the base below. Remove the outer convector box and drill the holes into the base below.

  • Page 17: Combustion Air

    . WF35 models take all combustion air from a single 80mm port at the rear of the stove, with the door closed the air port supplies all combustion air for the appliance. This can be connected to the outside via a 80mm pipe so the appliance does not draw air from the room.

  • Page 18: Suitable Fuels

    WESTFIRE ·WF35 OPERATING YOUR STOVE - WF35 INSERT Suitable fuels Your stove is tested to burn wood or registered smokeless coal. Wood briquettes can also be burnt but special account should be taken of fuel weight. For a full list of suitable fuels, check with the official solid fuels approvals body, HETAS or Solid Fuel Association.
  • Page 19 WESTFIRE ·WF35 OPERATING YOUR STOVE - WESTFIRE 35- AIR CONTROLLER Secondary air slide right to open Door handle Starting point 1st catch Primary air:- Pull out to open Wood/coal Position 1 Min / Position 3 Min Position 2 Max / Position 4 Max...
  • Page 20 Fully open the secondary air control above the stove door on right hand side. Fully open primary air control at base left of stove. The WF35 inserts air controls are now fully open.
  • Page 21 BURNING WOOD IN A SMOKE CONTROL AREA You must purchase a smoke control ‘SE’ version of the Westfire stove which is modified slightly to comply with regulations. Any change to this modification will invalidate the stoves compliance for smoke control areas.
  • Page 22 Please use the glove and operating tool supplied when operating air controls and door. SOLID SMOKELESS FUELS- Westfire 35 models are suitable for use with good quality smokeless fuels and have been fully tested to the relevant European standard. Only use registered smokeless fuels on this stove. Take special note of load quantities in front of this book.(page 6)

  • Page 23: Overnight Burning

    Westfire stoves do not recommend burning registered smokeless coal in a slumbering position, Westfire stoves are designed to burn wood and quality registered smokeless fuels. Wood burns more efficiently and cleanly if it is burnt hotter. Westfire stoves do not recommend that their stoves are burnt overnight for this reason. As a night time regime we recommend that the fire is loaded when hot and burnt for five minutes with the secondary air control fully open until the new wood has taken and is burning, then close the secondary air valve to its operational position.

  • Page 24: Troubleshooting

    WESTFIRE ·WF35 TROUBLE SHOOTING 1. Fire Will Not Burn - check 3) Soot forms on the window a) the air inlet is not obstructed in any way, a) The firewood may be too wet b) that chimney and flue ways are clear,...

  • Page 25: Maintenance

    Annual service Westfire stoves recommends that your model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the function of the stove and can cause possible damage to the stove grate and ash pan.

  • Page 26: Loose Parts

    WESTFIRE ·WF35 STOVE PARTS, COMBUSTION CHAMBER, ASSEMBLY This section shows the parts contained in your stove, each stove has over 80 spare-parts and, each part is detailed. When new parts are required the section will allow spares to be recognised and ordered. As a further source of reference please visit www.eurostove.co.uk for latest spare-part information.
  • Page 27 WESTFIRE ·WF35 WESTFIRE 35 COMBUSTION CHAMBER WF35 Complete brick set code: W13500-02-00-99-01 W13500-02-05-99-00 W13500-02-04-99-00 W13500-02-24-99-00 W90400-02-25-00-00 W13500-02-03-99-00 W13500-02-44-00-00 W13500-02-55-99-00 W13500-02-17-99-00 W92300-05-07-00-00 W13500-04-00-00-00 W13500-02-24-99-00 W90400-05-02-00-00 Part Code Part Code Door Glass Ashpan M10540-01-01-99-00 W13500-03-00-00-00 Door rope seal Handle W13500-06-02-00-00 M10540-06-04-99-00 Glass rope seal...
  • Page 28 WESTFIRE ·WF35 HOW TO REMOVE A VERMICULITE BRICK SET To remove a vermiculite brick set take the following steps. Ensure the stove is cold before removing brick set. Remove ashpan and log retainer , To remove log retainer lift out individual bars, then lift out metal support...
  • Page 29 WESTFIRE ·WF35 HOW TO REMOVE A VERMICULITE BRICK SET Lift out the grate followed by the grate frame Remove the 4 firebricks that surround the grate. Remove side rear left brick then remove side rear right brick. Remove side right front brick then remove side left front brick.
  • Page 30 WESTFIRE ·WF35 WESTFIRE 2020 | WF35 30 of 32 30 of 32...
  • Page 31 WESTFIRE ·WF35 31 of 32 31 of 32...
  • Page 32 Distributed by �������������������������������� �������������������� Eurostove Ltd Unit H1, Mendip Industrial Estate, Mendip Road, Rooksbridge, Somerset BS26 2UG Tel: 01934 750 500 Fax: 01173 156 207 www. eurostove.co.uk E-mail : info@eurostove.co.uk WESTFIRE 2022 | WF35 32 of 32 32 of 32...
