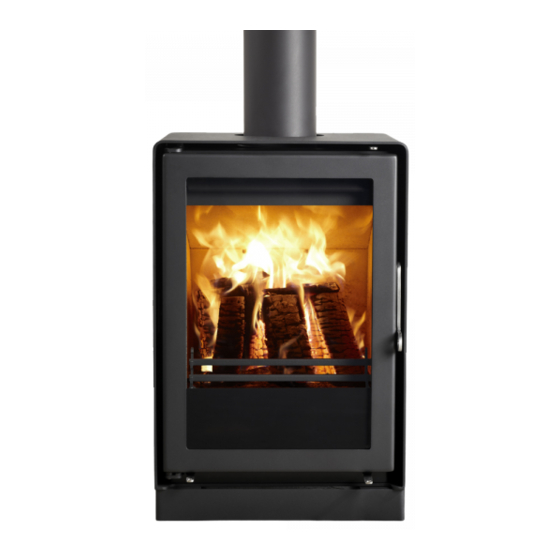

Westfire WF35 Installation Manual And Operating Instructions
Hide thumbs
Also See for WF35:
- Installation manual and operating instructions (17 pages) ,
- Installation manual and operating instructions (33 pages)
Related Manuals for Westfire WF35
Summary of Contents for Westfire WF35

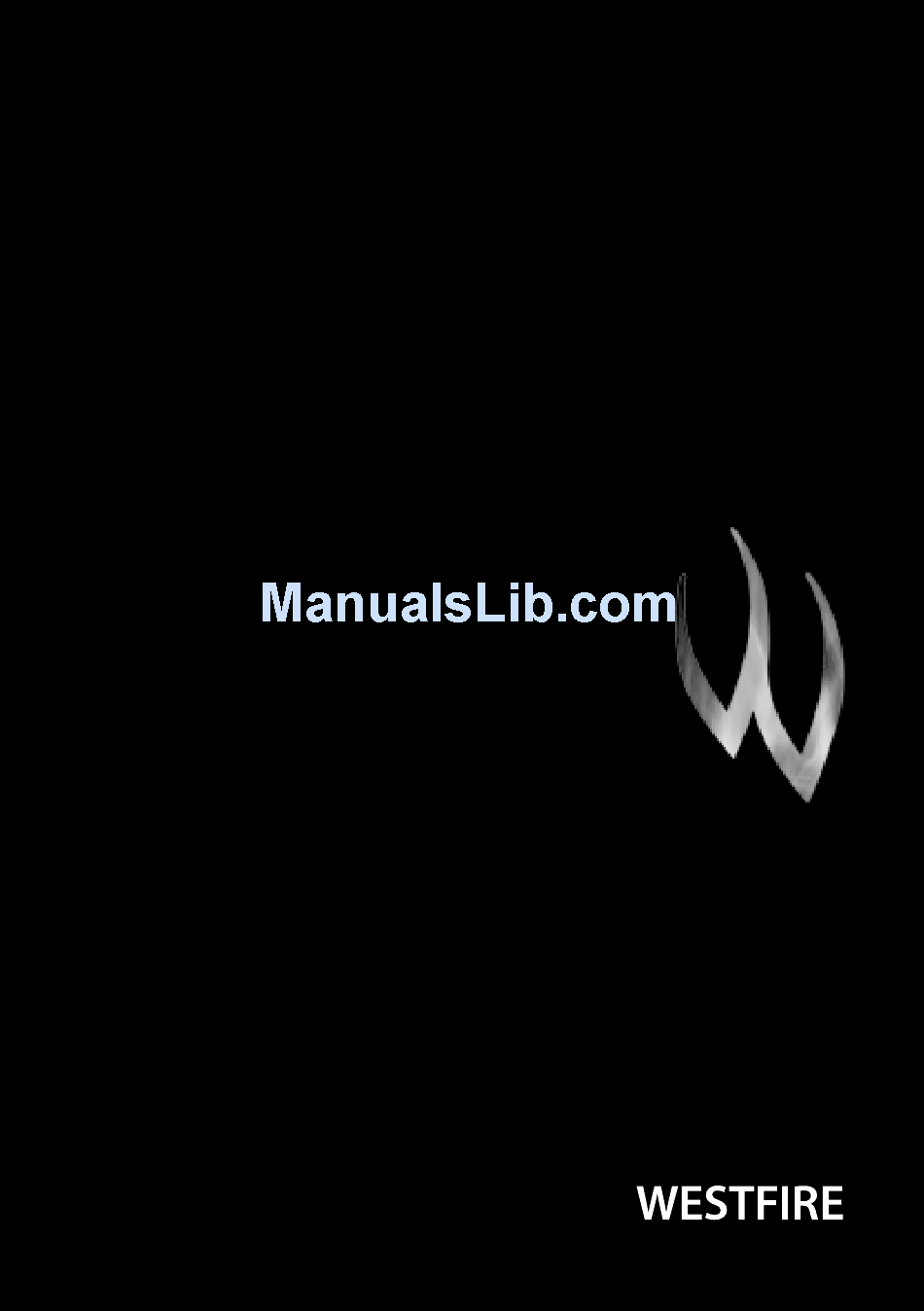

- Page 1 WESTFIRE · WF35 WF35 uk: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS d: INSTALLATIONS- UND GEBRAUCHSANWEISUNG fr : NOTICE D’INSTALLATION ET D’UTILISATION nL: INSTALLATIEHANDLEIDING EN GEBRUIKSAANWIJZING dansk ingeniør kunst...
- Page 2 WESTFIRE · WF35 WF35 uk: INSTALLATION MANUAL AND OPERATING INSTRUCTIONS..3 INSTALLATIONS- UND GEBRAUCHSANWEISUNG....18 fr : NOTICE D’INSTALLATION ET D’UTILISATION......21 nL: INSTALLATIEHANDLEIDING EN GEBRUIKSAANWIJZING ..24 WESTFIRE 2013 | WF35 1.0...
-
Page 3: Uk: Installation Manual And Operating Instructions
Standards, need to be complied with when installing this appliance”. For further information on installing and using fireplaces and multi-fuel stoves, please see the relevant building regulations that apply to the country in which WESTFIRE UNIQ 35 has been approved. These instructions cover the basic principles to ensure the satisfactory installation of the WESTFIRE UNIQ 35 stove, although detail may need slight modification to suit particular local site conditions. - Page 4 35 inset 50mm base 400mm pedestal 3 sided frame 4 sided frame Closed combustion Stove Performance & testing Westfire Uniq 35 models have been approved in accordance with EN 13240. stove model efficiency Weight nominal heat output CO@ 13% 02 Wood/coal...
- Page 5 WESTFIRE · WF35 If there is no existing chimney then either a prefabricated block chimney in accordance with Building Regulations Approved Document J or a twin walled insulated stainless steel flue to BS 4543 can be used. These chimneys must be fitted in accordance with the manufacturer’...
- Page 6 The WESTFIRE UNIQ 35 are fitted as standard with a closed air supply collar, this enables the stove to take all combustion air (primary, secondary and tertiary) directly from outside with 80mm pipe from the stove.
- Page 7 Connection to chimney The WESTFIRE UNIQ 35 stoves are factory set up with a top flue outlet only; the flue outlet can be altered on the inset model by removing the collar and rotating 180 degrees and re bolting. This will give a collar which is now at a 45 degree angle.
- Page 8 WESTFIRE · WF35 Operating Your stove- Westfire uniQ 35 – Controls secondary air slider f lue collar Slide left – closed 125mm Slide right – open door handle Pull to open Starting point 1st catch Primary air control / Primary Coal Control...
- Page 9 The WESTFIRE UNIQ 35 stove is equipped with a manual regulating control for secondary air; this is designed to ensure a plentiful supply of oxygen during firing. It is important therefore to not fully close the secondary air control.
- Page 10 (50% open). Burning Wood in a smoke Control area You must purchase a smoke control version of the Westfire Uniq 35 stove which is modified slightly to comply with regulations. Uniq 35 variants listed below are exempt when burning wood logs.
- Page 11 Authorised solid fuels are permitted." The Westfire Uniq 35 is tested to burn wood and smokeless coal. Wood briquettes can also be burnt but load weight should be strictly adhered to. For a full list of suitable fuels, check with the official solid fuels approvals body, HETAS or Solid Fuel Association.
- Page 12 Wood burns more efficiently and cleanly if is burnt hotter and reloaded regularly. Running you stove with combustion air closed is inefficient and bad for the environment. Westfire do not recommend that their stoves are burnt overnight for this reason.
- Page 13 7. The paint/ lacquer can wear thin in exposed places due to overheating. This, and other lacquer damage, maybe repaired using a Westfire Senotherm paint/lacquer spray available from your Westfire dealer. 8. If appliance is to be dormant for several months (summer) leave open all air controls to allow a flow of air and thus reducing probably of corrosion.
- Page 14 WESTFIRE · WF35 In accordance with current Building Regulations the installer may have fitted a permanent air supply vent into the room in which the stove is installed to provide combustion air. This air vent should not under any circumstances be shut off or sealed.
- Page 15 Please note that this is not transferable and is extended only to, and is solely for, the benefit of the original purchaser of the stove and will therefore only apply when the dated sales receipt as proof of purchase is produced to Westfire Stoves.
- Page 16 The warranty does not affect your statutory rights and in particular Westfire Stoves does not seek to limit liability for death or personal injury caused by Westfire Stove’ s negligence or the negligence of its employees, agents or subcontractors.
- Page 17 WESTFIRE · WF35 Spare parts WF Uniq 35 parts listing for most commonly used parts. Uniq 35 std/uniq 35 pedestal / uniq 35 inset Description Code Comments Brick set WF35brickset Consisting of 2x side bricks, 1x rear brick, 1x lower baffle brick,...
-
Page 18: Installations- Und Gebrauchsanweisung
Westf ir e WF35 sOCkeL/einsatz Wir beglü ckwünschen Sie zum Erwerb Ihres neuen Westfire Kaminofens! Damit Sie viel Freude daran haben, bitten wir Sie, diese Gebrauchsanweisung sorgfältig durchzulesen, denn so lassen sich Probleme vermeiden. Wir machen darauf aufmerksam, dass bei der Installation alle einschlägigen Verordnungen und Normvorschriften einzuhalten sind. - Page 19 WESTFIRE · WF35 Das Modell WF 35 ist nach den europäischen Normvorschriften (EN 13240) zugelassen. Die Nennwärmeleistung beträgt 4,3 kW. WF 35: Erprobungsgewicht von 110 kg. Min. Schornsteinzug (Prüfwert): 12 Pa. Max. Schornsteinzug: 25 Pa. Abgasmassen storm: 4,0 g/s. Rauchgastemperatur: 244°.
- Page 20 Bedienung, nicht sachgemäßen Anschluss oder äußere Einwirkungen ergeben. Ausgenommen sind ferner Verschleißteile sowie Kosten fü r Transport oder Auf-/Abbauarbeiten im Zuge von Garantie-Reparaturen. Die Garantie erlischt bei unbefugten technischen Ä nderungen am Ofen. Bei Reparaturen sind ausschließlich von der Fa. Westfire ApS empfohlene Ersatzteile zu verwenden.
-
Page 21: Fr : Notice D'installation Et D'utilisation
WF35 sont homologués, et la brochure sur l’ utilisation correcte du bois de chauffe, toutes deux disponibles chez votre revendeur de poêle ou chez votre ramoneur. - Page 22 Pour combustion réduit/ lente il faut simplement ajouter de petites quantités de bois moins souvent et fermez le levier de l’ air au centre de plus de 50 %. Les poêles WF35 est conçu pour fonctionner par intermittence (le bois doit être rajouté souvent et le poêle n’ est pas conçu pour être chauffé en continu).
- Page 23 La garantie ne couvre pas les dommages sur des pièces qui peuvent être changées, ni les frais de transport suite à des réparations sous garantie, ni le montage/démontage des réparations sous garantie. Avertissement: il est interdit de procéder à des modifications non autorisées de ce système. En cas de réparation, utilisez uniquement des pièces détachées recommandées par Westfire ApS.
-
Page 24: Nl: Installatiehandleiding En Gebruiksaanwijzing
Dat kan zijn in de vorm van een ventiel (het ventiel moet open staan en over voldoende capaciteit beschikken als de haard brandt) of een verseluchtsysteem dat met de kachel is verbonden. Alle houtkachels van Westfire zijn voorzien van een rookkeerplaat, die ervoor zorgt dat de weg die de rook aflegt lang genoeg is. - Page 25 U kunt dit ook regelen door de luchttoevoer tot een minimum (meer dan 50 %) te sluiten. De Westfire Uniq 35 is ontworpen voor intermitterende verbranding (regelmatig met hout vullen, de kachel is niet ontworpen voor gebruik voor 24 uur.
- Page 26 De garantie dekt geen schade aan vervangbare onderdelen, transportkosten in verband met garantiereparaties of montage/demontage bij garantiereparaties. De garantie vervalt bij onbevoegde veranderingen aan de warmtebron. Gebruik bij reparatie uitsluitend reserveonderdelen die door Westfire ApS worden aanbevolen.
- Page 27 WESTFIRE · WF35...
