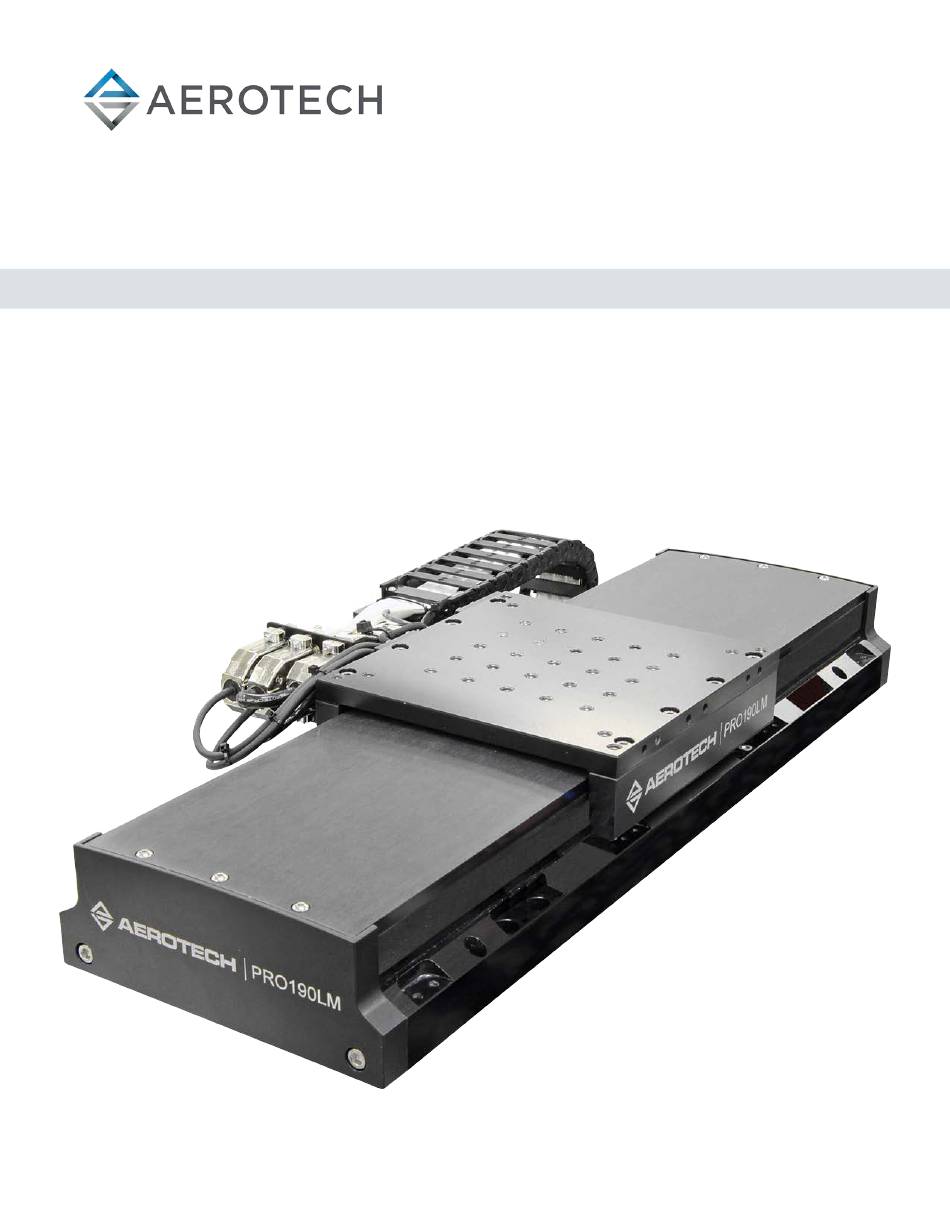

Page 1: Pro190Lm Mechanical Bearing, Direct-Drive Linear Stage
PRO190LM Mechanical Bearing, Direct-Drive Linear Stage HARDWARE MANUAL Revision 2.00... - Page 2 Global Technical Support Portal for information and support about your Aerotech, Inc. products. The website supplies software, product manuals, Help files, training schedules, and PC-to-PC remote technical support. If necessary, you can complete Product Return (RMA) forms and get information about repairs and spare or replacement parts.
-
Page 3: Table Of Contents
Hardware Manual PRO190LM Table of Contents PRO190LM Mechanical Bearing, Direct-Drive Linear Stage Table of Contents List of Figures List of Tables EU Declaration of Incorporation UKCA Declaration of Incorporation Safety Procedures and Warnings Installation and Operation Electrical Warnings Motor-Related Warnings Pinch Points... -
Page 4: List Of Figures
PRO190LM Hardware Manual List of Figures Figure 2-1: PRO190LM Dimensions Figure 2-2: PRO190SL Tabletop Dimensions (-TT2/-TT3 Option) Figure 2-3: Stage Orientations Figure 2-4: Cantilevered Load Capability Figure 3-1: Ground Connection Points for the -CMS0 Option Figure 3-2: Motor and Feedback Wiring... -
Page 5: List Of Tables
List of Tables Table 1-1: Model Numbers and Ordering Options Table 1-2: Environmental Specifications Table 1-3: PRO190LM Series Specifications (-0100 to -0300) Table 1-4: PRO190LM Series Specifications (-0400 to -1000) Table 2-1: Stage Mounting Surface Flatness Requirement Table 2-2: Stage to Mounting Surface Hardware... -
Page 6: Eu Declaration Of Incorporation
101 Zeta Drive Pittsburgh, PA 15238-2811 herewith declares that the product: PRO190LM stage is intended to be incorporated into machinery to constitute machinery covered by the Directive 2006/42/EC as amended; and that the following harmonized European standards have been applied:... -
Page 7: Ukca Declaration Of Incorporation
101 Zeta Drive Pittsburgh, PA 15238-2811 herewith declares that the product: PRO190LM stage To which this declaration relates, meets the essential health and safety requirements and is in conformity with the relevant UK Legislation listed below: Supply of Machinery (Safety) Regulations 2008... -
Page 8: Safety Procedures And Warnings
To find the newest information about this product, refer to www.aerotech.com. If you do not understand the information in this manual, contact Aerotech Global Technical Support. IMPORTANT: This product has been designed for light industrial manufacturing or laboratory environments. -
Page 9: Installation And Operation
Make sure that the product is securely mounted before you operate it. Make sure that all pneumatic lines are securely connected. Use care when you move the PRO190LM or you could negatively affect the per- formance of it. WARNING: Trip Hazard! Route, house, and secure all cables, duct work, air, or water lines. -
Page 10: Electrical Warnings
It is the responsibility of the End User/System Integrator to make sure that stages are properly connected and grounded per Engineering Standards and applicable safety requirements. It is the responsibility of the End User/System Integrator to configure the system drive or controller within the Aerotech motor/stage electrical and mechanical specifications. www.aerotech.com... -
Page 11: Motor-Related Warnings
Hardware Manual PRO190LM Motor-Related Warnings Aerotech motors are capable of producing high forces and velocities. Obey all warnings and all applicable codes and standards when you operate a system that incorporates Aerotech motors. DANGER: Mechanical Hazard! Personnel must be made aware of the mechanical hazards during set up or when you do service to the stage. -
Page 12: Pinch Points
PRO190LM Hardware Manual Pinch Points A pinch point is a mechanical hazard that can occur when there are exposed parts of the stage or system that can move. For example, the travel of a stage tabletop could expose the user to a pinch point between the tabletop and the stage housing. -
Page 13: Magnetic Hazards
Hardware Manual PRO190LM Magnetic Hazards The magnet track will be exposed when you do maintenance to the system. DANGER: Magnetic Field Hazard! Only qualified, trained personnel should be allowed to have access to exposed mag- net tracks during setup or when you do maintenance. -
Page 14: Handling And Storage
Ensure that the antistatic material is not damaged during unpacking. DANGER: Lifting Hazard! Use care when you move the PRO190LM or you could negatively affect the performance of it. Use the correct lifting techniques, mechanical assistance, or additional help to lift or move this product. -
Page 15: Storage
Before you operate the stage, let it stabilize at room temperature for at least 12 hours. This will ensure that all of the alignments, preloads, and tolerances are the same as they were when they were tested at Aerotech. Each stage has a label listing the system part number and serial number. These numbers contain information necessary for maintenance or system hardware and software updates. - Page 16 PRO190LM Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 17: Chapter 1: Overview
Hardware Manual PRO190LM Chapter 1: Overview Table 1-1: Model Numbers and Ordering Options PRO190LM Linear Motor Stage Travel (Required) -0100 100 mm travel stage -0150 150 mm travel stage -0200 200 mm travel stage -0250 250 mm travel stage -0300... - Page 18 PRO190LM Hardware Manual PRO190LM Linear Motor Stage (continued) Cable Management (Required) -CMS0 No external CMS, motor/feedback connector bracket on carriage -CMS1 External CMS for single axis -CMS2 External CMS for lower-axis of two-axis PRO XY assembly -CMS3 External CMS for lower-axis of two-axis (XZ or XT) assembly...
-
Page 19: Environmental Specifications
Altitude Operating: 0 m to 2,000 m (0 ft to 6,562 ft) above sea level Contact Aerotech if your specific application involves use above 2,000 m or below sea level. Vibration Use the system in a low vibration environment. Floor or acoustical vibration can affect system performance. -
Page 20: Accuracy And Temperature Effects
Hardware Manual 1.2. Accuracy and Temperature Effects Aerotech products are designed for and built in a 20°C (68°F) environment. Temperature changes could cause a decrease in performance or permanent damage to the stage. At a minimum, the environmental temperature must be controlled to within 0.25ºC per 24 hours to ensure the stage specifications are repeatable over an extended period of time. -
Page 21: Basic Specifications
(3) Axis orientation for on-axis loading is listed. (4) Specifications are for single-axis systems measured 25 mm above the tabletop; performance of multi-axis system depend upon the payload and workpoint. Consult the Aerotech factory for multi-axis or non-standard applications. www.aerotech.com... -
Page 22: Table 1-4: Pro190Lm Series Specifications (-0400 To -1000)
(3) Axis orientation for on-axis loading is listed. (4) Specifications are for single-axis systems measured 25 mm above the tabletop; performance of multi-axis system depend upon the payload and workpoint. Consult the Aerotech factory for multi-axis or non-standard applications. www.aerotech.com... -
Page 23: Vacuum Operation
6. To reduce outgassing during the initial pump-down to vacuum pressure, Aerotech recommends that you bake out vacuum systems when you first install them into the vacuum chamber. Bake the vacuum components at 60 °C for 24 to 48 hours to desorb water vapor from surfaces and... - Page 24 PRO190LM Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 25: Chapter 2: Installation
IMPORTANT: The stage installation must be in accordance with the instructions provided by this manual and any accompanying documentation. Failure to follow these instructions could result in injury or damage to the equipment. 2.1. Dimensions Figure 2-1: PRO190LM Dimensions www.aerotech.com... -
Page 26: Figure 2-2: Pro190Sl Tabletop Dimensions (-Tt2/-Tt3 Option)
PRO190LM Hardware Manual Figure 2-2: PRO190SL Tabletop Dimensions (-TT2/-TT3 Option) www.aerotech.com... -
Page 27: Securing The Stage To The Mounting Surface
Hardware Manual PRO190LM 2.2. Securing the Stage to the Mounting Surface DANGER: Mechanical Hazard! Personnel must be made aware of the mechanical hazards during set up or when you do service to the stage. Do not manually move the stage if it is connected to a power source. -
Page 28: Attaching The Payload To The Stage
If you start the PRO190LM without a payload, the servo gains provided by Aerotech with the shipment may not be appropriate and servo instability can occur. Refer to the controller help file for tuning assistance. -
Page 29: Figure 2-3: Stage Orientations
Hardware Manual PRO190LM For a cantilevered load, first determine if it is a Horizontal or a Side cantilever system (refer to Figure 2-3). The Horizontal curve assumes a horizontal stage orientation with the payload offset extending outwards along the surface of the tabletop. -
Page 30: Speed Capability
To help ensure safety and prevent damage to the system, speed limitations are required for the PRO190LM. Achievable speeds are application-dependent and determined by factors such as travel length, payload, amplifier sizing and duty cycle. The Motor Sizer application supplied by Aerotech at https://www.aerotech.com/resources/motor-sizer.aspx can be used to estimate allowable speeds and accelerations based on these parameters. -
Page 31: Chapter 3: Electrical Installation
Aerotech motion control systems are adjusted at the factory for optimum performance. When the PRO190LM is part of a complete Aerotech motion control system, setup should only require that you connect the stage to the appropriate drive chassis with the cables provided. Labels on the system components should indicate the appropriate connections. -
Page 32: Motor And Feedback Connectors
IMPORTANT: If you are using standard Aerotech motors and cables, motor and encoder connection adjustments are not required. The protective ground connection of the PRO190LM provides motor frame ground protection only. Additional grounding and safety precautions are required for applications requiring access to the stage while it is energized. -
Page 33: Table 3-1: Motor Connector Pinout
Hardware Manual PRO190LM Table 3-1: Motor Connector Pinout Description Connector Case Shield Connection Motor Phase A Motor Phase B Motor Phase C Reserved Reserved Reserved Reserved Reserved Frame Ground (motor protective ground) Table 3-2: General Motor Connector Pinout (for Z or T Axes) -
Page 34: Table 3-4: Feedback Connector Pinout
PRO190LM Hardware Manual Table 3-4: Feedback Connector Pinout Description Connector Case Shield Connection Reserved Over-Temperature Thermistor Sensor 5V Power Supply Input (connected internally to Pin-16) Reserved Hall Effect Sensor (Phase B) MRK- (Encoder Marker-) MRK+ (Encoder Marker+) Reserved Reserved Hall Effect Sensor (Phase A) Hall Effect Sensor (Phase C) +/CW LMT (End-of travel limit signal that indicates maximum permitted stage... -
Page 35: Table 3-6: Feedback Connector Pinout (-E3 Option)
Hardware Manual PRO190LM Table 3-6: Feedback Connector Pinout (-E3 Option) Description Connector Case Shield Connection Reserved Over-Temperature Thermistor Sensor 5V Power Supply Input (connected internally to Pin-16) Reserved Hall Effect Sensor (Phase B) CLK- (Absolute Encoder Clock-) CLK+ (Absolute Encoder Clock+) -
Page 36: Table 3-8: General Feedback Connector Pinout (For Z Or T Axes)
PRO190LM Hardware Manual Table 3-8: General Feedback Connector Pinout (for Z or T Axes) Wire Gauge Description Connector AWG [mm Case Shield Connection 26 [0.129] Reserved Over-Temperature Thermistor Sensor 26 [0.129] 5V Power Supply Input (connected internally to Pin-16) 26 [0.129]... -
Page 37: Motor And Feedback Wiring
Hardware Manual PRO190LM 3.2. Motor and Feedback Wiring Shielded cables are required for the motor and feedback connections. Figure 3-2: Motor and Feedback Wiring www.aerotech.com... -
Page 38: Figure 3-3: Motor And Feedback Wiring For A Typical Vertical Or Rotary Axis Stage
PRO190LM Hardware Manual Figure 3-3: Motor and Feedback Wiring for a Typical Vertical or Rotary Axis Stage www.aerotech.com... -
Page 39: Motor And Feedback Specifications
High impedance (Logic "1") when in limit (limit active). (Factory Configured) Third party controller LIMIT inputs typically require 10 kΩ pull-up to logic VDC supply. If the PRO190LM is driven beyond the electrical limit, it will encounter a mechanical stop. This could damage the stage, even at low speeds. www.aerotech.com... -
Page 40: Table 3-15: Pro190Lm Motor Specifications (Blmc-192-A)
5. All performance and electrical specifications ±10%. 6. Maximum winding temperature is 125°C. 7. Ambient operating temperature range 0 °C - 25 °C; consult Aerotech for performance in elevated ambient temperatures. 8. All Aerotech amplifiers are rated Apk; use force constant in N·m/Apk when sizing. -
Page 41: Limits, Marker, And Machine Direction
Hardware Manual PRO190LM 3.4. Limits, Marker, and Machine Direction Aerotech stages have both a positive and negative Machine Direction and a positive and negative Programming Direction. Machine Direction: The machine direction is defined by how the encoder and motor are mounted and the electrical wiring connections in the stage. -
Page 42: Motor And Feedback Phasing
PRO190LM Hardware Manual 3.5. Motor and Feedback Phasing Motor phase voltage is measured relative to the virtual wye common point. Figure 3-5: Hall Phasing Diagram www.aerotech.com... -
Page 43: Figure 3-6: Encoder Phasing Reference Diagram (Standard/Square Wave)
Hardware Manual PRO190LM Figure 3-6: Encoder Phasing Reference Diagram (Standard/Square Wave) Figure 3-7: Digital Encoder Phasing Reference Diagram (Sine Wave) www.aerotech.com... - Page 44 PRO190LM Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 45: Chapter 4: Maintenance
4.1. Service and Inspection Schedule Inspect the PRO190LM at least once per month. The need for a longer or shorter inspection interval will depend on the application and conditions, such as the duty cycle, speed, and environment. -
Page 46: Cleaning And Lubrication
5. We recommend that you do not disassemble the stage beyond the instructions given in this manual. Proper assembly and calibration can only be done at the factory. Contact Aerotech for more information. - Page 47 Use a clean, lint-free cloth with a side-to-side motion. Use a swab soaked in Isopropyl Alcohol to remove stubborn debris. 6. Apply a thin, continuous film of lubricant to the linear bearing guides. Aerotech recommends that you use a good quality, natural bristle artist's brush as an applicator.
-
Page 48: Figure 4-1: Hardcover Rear End Plate Removal
PRO190LM Hardware Manual Figure 4-1: Hardcover Rear End Plate Removal Figure 4-2: Hardcover Screw Removal www.aerotech.com... -
Page 49: Figure 4-3: Hardcover Removal
Hardware Manual PRO190LM Figure 4-3: Hardcover Removal www.aerotech.com... -
Page 50: Troubleshooting
PRO190LM Hardware Manual 4.3. Troubleshooting Symptom Possible Cause and Solution Shipping brackets still installed. Remove the red anodized shipping brackets. In Limit condition. Check limits (refer to Chapter 3: Electrical Installation) and Stage will not move refer to the Controller documentation for polarity and compatibility requirements (Example: voltage requirements). -
Page 51: Appendix A: Warranty And Field Service
All Other Repairs - After Aerotech's evaluation, the buyer shall be notified of the repair cost. At such time the buyer must issue a valid purchase order to cover the cost of the repair and freight, or authorize the product(s) to be shipped back as is, at the buyer's expense. - Page 52 Aerotech's approval. On-site Warranty Repair If an Aerotech product cannot be made functional by telephone assistance or by sending and having the customer install replacement parts, and cannot be returned to the Aerotech service center for...
-
Page 53: Appendix B: Revision History
Appendix B: Revision History Revision Description EU Declaration of Incorporation updated UKCA Declaration of Incorporation added 2.00 Safety information updated Dimensions updated General product update 1.01 Revision changes have been archived. If you need a copy of this revision, contact Aerotech Global Technical Support. 1.00 www.aerotech.com... - Page 54 PRO190LM Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 55: Index
PRO190LM Hardware Manual Index Index Handling Humidity 2006/42/EC Inspection Schedule isopropyl alcohol Accuracy and Temperature Effects Accuracy of the Ballscrew label 14-15 acetone (caution) Lifting Features Altitude Limit Switch Specifications Ambient Temperature Linear Encoder Specifications Attaching the Payload lubricant vacuum... -
Page 56: Vibration
Index PRO190LM Hardware Manual stage distortion stabilizing standoffs Storage Symptom Table of Contents Temperature Effects Thermistor Specifications Troubleshooting vacuum guidelines vacuum lubricant (Braycote 602EF) Vacuum Operation Vibration Warnings Warranty and Field Service www.aerotech.com...
