OSD Nero Stream XD - Wireless Amplifier Manual

SAFETY INSTRUCTIONS

To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
The product should not be exposed to any dripping or splashing liquid.
Objects filled with liquids, such as vases, should not be placed on the product.
Keep the remote control battery away from children. Dispose of used battery promptly, replace only with a battery of the correct type.
Protect the power cord from damage. Do not pull push the power cord excessively, and take care not to let the power cord become pinched, particularly at or near the plug.
Keep the product away from heat sources such as heat registers, stoves or other appliances that produce heat.
Avoid direct sunshine and covering vents. Do not operate in a sealed box and be sure to have enough room for heat exchange.
Avoid opening the cover. Do not open the cover, or touch the inner parts, refer servicing to our customer service.

AMPLIFIER FEATURES

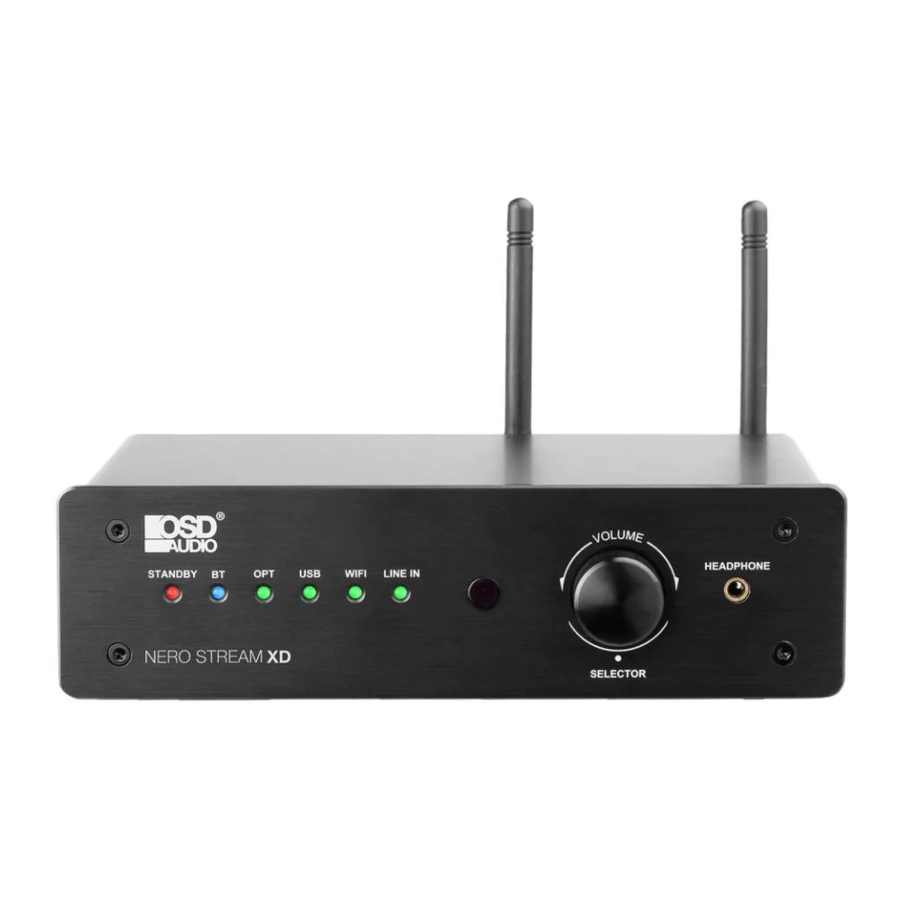

Power Indicator
Bluetooth ® Indicator
OPT Indicator
USB Indicator
Wi-Fi ® Indicator
Line In Indicator
Volume Knob/Input Selector
Head Phone Jack
Antenna
WPS
SUB Out
Line In
USB In
Optical Input
Speaker Output -L/R
Speaker Output + L/R
Power Input
On/Off Switch

REMOTE FEATURES

On/Off Button
Optical Source
Volume +/-
Previous/Next
USB Source
Wi-Fi ® Source
Line Source
Play/Pause
Bluetooth Source

CONNECTION DIAGRAM

SETUP

Connect the power cord to the back of the amplifier then connect it to a wall outlet.
Connect your devices to a suitable input.
Turn the power button to the On position, after two seconds the unit will enter working status and the input indicator will light up.
Press the Bluetooth ®, OPT, LINE or AUX button on the remote or the volume knob to choose a audio source. Control the playback via the remote control by pressing the buttons.

Note: Always press the desired source button on the remote control for the audio source to work.

Connect Your Device

Connect your subwoofer to SUB out.
Connect your CD player via its RCA cable to the RCA L/R input. Make sure you connect the "L" plug to the left input channel and the "R" plug to the right input channel.
Connect your phone/tablet/MP3 via an AUX cable to Line In.
Connect your DVD player via its optical fiber cable to the Optical Input.
Connect your speakers to the Speaker Output. Make sure you connect the -/+ and the L/R cables to the right input.

Bluetooth Pairing

Press the Bluetooth ® on the remote to activate the Bluetooth source.
Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices.
When your phone/tablet finds NERO STREAM XD, choose this unit and begin pairing.
To unpair an existing source, press and hold the Bluetooth button on the remote for 3 seconds.

Wi-Fi Connection

Download and install the OSD Audio App for your iOS or Android device.
Press the Wi-Fi ® button on the remote to activate the Wi-Fi source.
WPS: - Link your device to the NERO STREAM and your Wi-Fi network by following the setup steps in the app.

https://play.google.com/store/apps/details?id=com.wifiaudio.osd&hl=en

https://itunes.apple.com/us/app/osd-player/id1447579044?mt=8

APP CONTROL / USER INTERFACE

Enable Wi-Fi ®
Be sure your phone or tablets Wi-Fi is turned on.

Wi-Fi Network
Be sure the NERO is powered up and your phone or tablet is set to the same Wi-Fi network as the NERO.

Set Up
In your devices Wi-Fi settings look for NERO STREAM_XXXX and select to connect.

Stream & Select
Swipe right to view and select a streaming service or source input device.

Home Screen
Current song title, artist & album art are shown along with controls.

Device List
Choose which devices/zones are connected and being used and select separate volume and source input for each device/zone.

SYSTEM FEATURES

SYSTEM FEATURES
Multi-Device
Stream or play music from different source devices
Multi-User
Multiple users can control the audio source as well as the room or zone it's playing in.
Multi-Room
Connect multiple NERO STREAMS to create a whole house audio system.

TROUBLE SHOOTING

PROBLEM	POSSIBLE CAUSE
No Power	The power cord is disconnected. Poor connection at the wall socket or the wall socket is inactive.
No Sound	The speakers are disconnected. Volume control at lowest level. Check if the signal cables are damaged. Check if the LEDs are blinking. If not, re start the amplifier and ensure that the LED displays is in standby. If it still doesn't work, contact customers service.
Sudden Sound Loss	Check the audio source.
Poor Sound Quality	Audio source problem Bad or incorrect speakers connections. Treble and bass control are too low.
LED Off	Check if the amplifier is connected with the power outlet and confirm that the voltage regulator works.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OSD Audio is under license. Other trademarks and trade names are those of their respective owners.

SPECIFICATIONS

Amplifier: Class D
Output Power: 50W @ 4 Ohm
Max Output Power: 200W
Frequency response: 20Hz ~ 20KHz
Impedance: 8 - 4 Ohm
Inputs: Wi-Fi^®, Bluetooth^®, Optical, USB, AUX (RCA)
Outputs: Speaker, Subwoofer, 3.5mm Headphone Jack
DAC: Cirrus Logic CS8416 24 Bit/192kHz DAC
Wi-Fi Frequency: 2.4 GHz
Bluetooth Version: 4.2 w/ aptX™
Dimensions: 7.5 x 5.5 x 2" inch
Weight: 2.8 lbs
