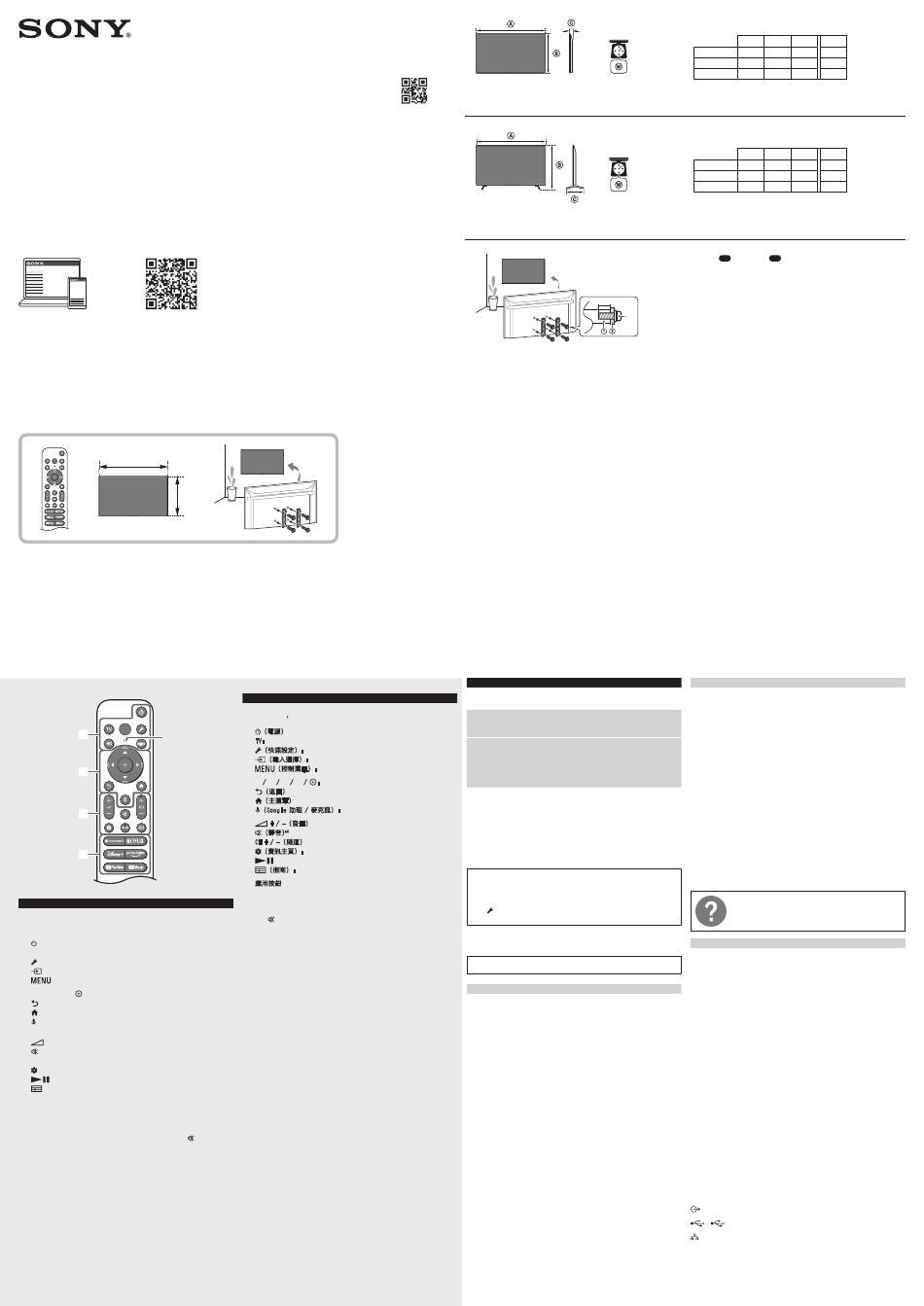

Sony KD-55X77L Reference Manual

Television
Reference Guide
參考指南
KD-55X77L / 50X77L / 43X77L
https://rd1.sony.net/help/tv/kgar1/h_ga/
© 2023 Sony Corporation Printed in Vietnam

MIC



EN
The remote control shape, layout, availability and function of remote
control buttons may vary depending on your region/country/TV model/
TV settings.*
1
 (Power)
TV:
Display TV channel list or switch to input.
(Quick settings): Display Quick Settings.
(Input select):
Display and select the input source, etc.
(Control menu): Display the Control menu.
  /  /  /  / :
On screen menu navigation and selection.
(Back)
(Home)
(Google Assistant / Microphone):
Use Google Assistant*
search* 3 .
 + / – (Volume)
(Mute)* 4
CH + / – (Channel)
(Dashboard):
Display Dashboard.
(Guide):
Display the digital programme guide.
 App buttons
*1 For other remote control models, refer to the online Help Guide for details.
*2 Only for limited region/country/model/language.
*3 Google Assistant or voice search requires an Internet connection.
*4 Accessibility shortcut is available by pressing and holding
CT
遙控器外形、按鈕的佈局、可用性與功能視您的國家/區域/電視機型號或設定而
可能略有不同。 *1
 （電源）
TV： 顯示電視機頻道清單或切換為輸入。
（快速設定）：
顯示快速設定。
（輸入選擇）：
顯示並選擇輸入來源等。
（控制選單）： 顯示控制選單。
 /  /  /  /
 :
在螢幕選單導航和選擇上。
（返回）
（主選單）
（Google 助理 / 麥克風）：
使用 Google 助理

+ / −（音量）
（靜音)
*4
CH + / −（頻道）
（資訊主頁）： 顯示資訊主頁。
（指南）： 顯示數位節目指南。
 應用按鈕
*1 有關其他遙控器型號，請參閱線上說明指南以獲取詳情。
*2 僅限用於有限區域 / 國家 / 型號 / 語言。
*3 使用 Google 助理或語音搜尋需要網際網路連線。
*4 按住 （靜音）可使用輔助使用快捷鍵。
2 * 3 or voice
(Mute).
5-049-955-11(1)
EN
About Manuals
Please retain the manuals for future reference.
Paper manual
Setup Guide (on top of the product) / Reference Guide (this manual) /
Safety and Other Information.
Help Guide (On screen Manual)
• To open it, select [Settings] t [Help and feedback] t [Help] or select
[Help] in the Home Menu, if [Help] does not exist, select [See all] t
[Help].
• You can refer to the Help Guide with your smartphone (visit website
provided on the front cover of Reference Guide).
Read and understand the contents of this manual before operating this
product.
*2*3 或語音搜尋 *3 。 Note
• Instructions about "Installing the TV to the Wall" are included within this TV's
instruction manual.
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the supplied manuals are for reference and
may differ from the actual product.
• Setting menus are subject to change without notice due to software
updates. For latest information, visit Sony support website.
IMPORTANT - Read the End User Software Licence Agreement before
using your Sony product. Using your product indicates your acceptance
of the End User Software Licence Agreement. The software licence
agreement between you and Sony is available online at Sony website
(https://www.sony.net/tv-software-licenses2/) or on your product screen.
Press (Quick Settings) on the remote control and select [Settings] t
[System] t [About] t [Legal information] t [Notices and licences].
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of
the TV.
This television is designed for use in Hong Kong and ensured the usage in
Hong Kong only.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)
To Customers:
For product protection and safety reasons, Sony strongly recommends that
installation of your TV be performed by Sony dealers or licensed contractors.
Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance
and examination of this product.
Wall-Mount Bracket Installation Information
For instructions on Wall-Mount Bracket installation, see the Installation
Information (Wall-Mount Bracket) on the product page for your TV model.
https://www.sony-asia.com/support
• Follow the instruction guide provided with the Wall-Mount Bracket for your
model. Sufficient expertise is required in installing this TV, especially to
determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or
improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony
accessories, including:
— Wall-Mount Bracket SU-WL850
— Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when
attaching the Wall-Mount Bracket to the TV set. The supplied screws are
designed as indicated by illustration when measured from the attaching
surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the Wall-Mount
Bracket model.
Use of screws other than those supplied may result in internal damage to the
TV set or cause it to fall, etc.
• Be sure to store the unused screws and Table-Top Stand in a safe place until
you are ready to attach the Table-Top Stand. Keep the screws away from
small children.
* Only for limited region/country/model.
*
(mm/毫米)

KD-55X77L 1243
KD-50X77L 1126
KD-43X77L 972
*
(mm/毫米)

KD-55X77L 1243
KD-50X77L 1126
KD-43X77L 972
 Wall-Mount Attachment VS
/ 壁掛連接件
 Wall-Mount Bracket / 壁掛式支架
10 – 12 (mm)
M6
Troubleshooting
General troubleshooting for issues like: black screen, no sound, frozen picture,
TV does not respond, or network is lost, do the following steps.
1
Restart your TV by pressing the power button on the remote control for
about five seconds. Select [Restart] and TV will restart. If the TV does not
recover, try unplugging the AC power cord (mains lead) then press the
power button on the TV and release it. Wait for two minutes, and plug in the
AC power cord (mains lead).
Or, press the power button on the TV for about 40 seconds until the TV
turns off.
2
Refer to the Help menu shown below.
3
Connect your TV to the Internet and perform a software update. Sony
recommends you to keep your TV software updated. Software updates
provide new features and performance improvements.
4
Visit Sony support website (information provided at the end of the
supplied safety documentation).
When you plug in the TV, the TV may not be able to turn on for a
while even if you press the power button on the remote control or
the TV.
It takes time to initialize the system. Wait for about one minute, then operate it
again.
The remote control does not function.
• Replace the batteries.
The parental lock password has been forgotten.
• Enter 4357 for the PIN and enter the new PIN.
For more information, refer to the Help Guide.
To open it, select [Settings] t [Help and feedback] t [Help]
or select [Help] in the Home Menu, if [Help] does not exist,
select [See all] t [Help].
Specifications
System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Analogue: I, D/K, B/G, M
Digital: DTMB
Colour system
PAL/SECAM/NTSC3.58/NTSC4.43
Channel coverage
Analogue: UHF/VHF/Cable
Digital: UHF
Sound output (W)
10 + 10
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 5.0
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
HDMI IN 1/2/3 (HDCP 2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)* 1 , 4096 × 2160p (24 Hz), 3840 × 2160p (50, 60 Hz)*
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,
60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i 480p, 480i, PC Formats*
Audio:
In eARC (Enhanced Audio Return Channel) mode
Refer to the online Help Guide for details.
Except eARC mode
Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio
eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)
(HDMI IN 3 only)* 3
In eARC mode
Refer to the online Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio)
1, 2
USB port 1 and 2 supports High Speed USB (USB 2.0)
LAN
10BASE-T/100BASE-TX connector (Depending on the operating environment
of the network, connection speed may differ. The communication rate and
quality are not guaranteed.)
(kg/
1 * 1
千克)
  
721 71 15.3
653 70 12.1
567 70 9.3
*1 (Approx. / 大約)
(kg/
1 * 1
千克)
  
789 334 15.6
718 267 12.3
632 266 9.5
*1 (Approx. / 大約)
VS
(mm) / (毫米)
1 ,
2
